In modern infrastructure construction, underground horizontal boring machines have become indispensable. With its unique penetration ability, it lays pipes and cables without damaging the ground, greatly improving construction efficiency. As a leader in this field, the underground horizontal boring machine provided by YG is not only technologically advanced, but also widely applicable, making it an ideal choice for many construction units. This article will detail the parameters, applications, customer feedback, and unique features of YG horizontal directional drilling.

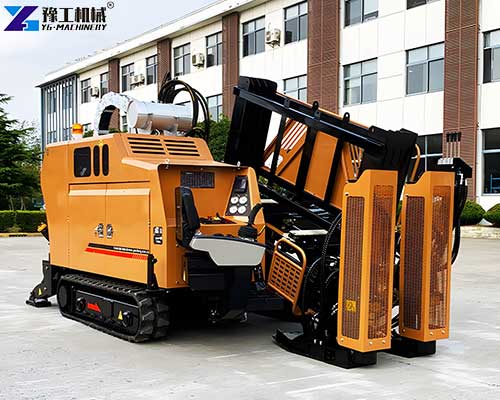

Underground horizontal boring machine Parameters
YG’s underground horizontal boring machine series combines high efficiency, precision, and durability. The main parameters include: the maximum drilling diameter can reach 300 mm, suitable for a variety of soil types; strong power, equipped with an efficient engine to ensure long-term stable work; easy operation, equipped with an advanced control system, supporting precise positioning and path planning.
| Model | YG200 |
| Main engine part | 48kw 65HP |
| Host width | 1.6m |
| Host length | 3.8m |
| Host height | 1.8m |
| Travel system | remote control, crawler walking |
| Ground drive system | 2KM/hour |
| maximum working distance | 200 Meter |
| Drill pipe diameter | ≤500mm |
| Incidence angle | 10-22 degrees |
| Departure angle | 20 degrees |
| Host weight | 2.3t |
| Water injection system | three-cylinder mud pump |
| Pilot bit | bit diameter 100mm |
| Drill pipe length | 2 meters |
| Climbing ability | 35 degrees |
| Transfer case | 8tons |
| Reducer protection head | 2 |
| Ground Anchor | 2 |
| Reducer protection head | 2 |
| Ground Anchor | 2 |

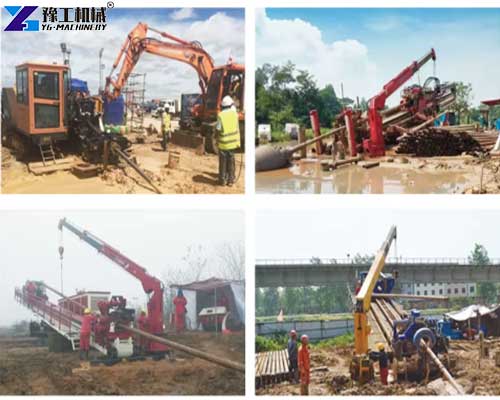

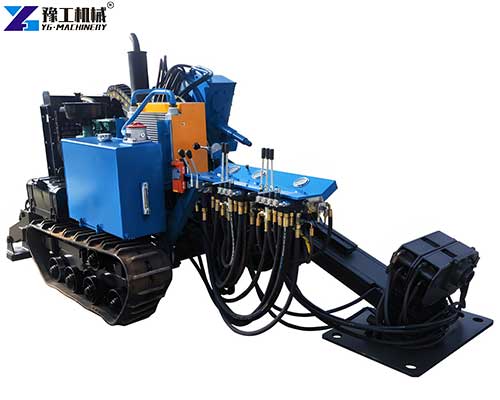

Underground pipe drilling machine Applications

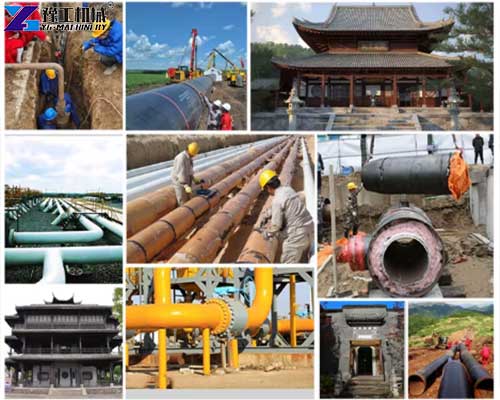

YG’s underground horizontal boring machine is widely used in urban infrastructure construction, electricity, communications, water supply, gas, and other fields. Whether crossing busy city streets or complex mountainous terrain, it can achieve fast and non-destructive pipe laying. For example, in urban power grid transformation, the use of YG’s small directional boring machine can effectively avoid excavation of the road surface and reduce the impact on citizens’ lives; in remote mountainous areas, the underground pipe drilling machine can easily pass through the rock layer and complete long-distance pipe laying.

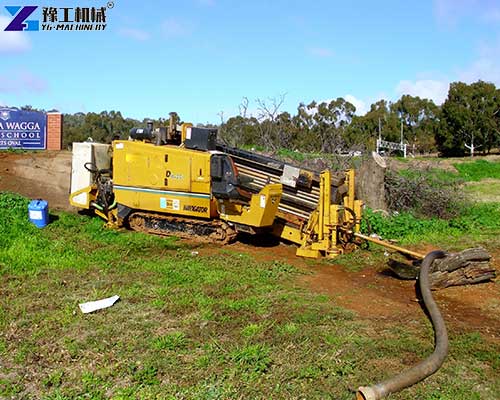

small directional boring machine Customer Feedback
- United States: A power company successfully crossed the busy streets in the city center using YG’s underground horizontal boring machine, which not only saved construction time, but also greatly reduced the impact on citizens’ lives, and was highly praised.
- Malaysia: A water company chose YG’s small directional boring machine when laying water supply pipes in tropical rainforest areas. Its excellent crossing ability and durability allow it to handle complex terrain with ease.
- Philippines: A communications operator used YG’s underground pipe drilling machine when laying fiber optic cables. While maintaining efficient construction, it also protected the local ecological environment and won the recognition of the local community.

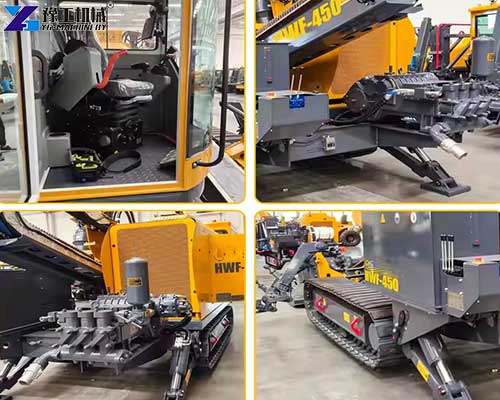

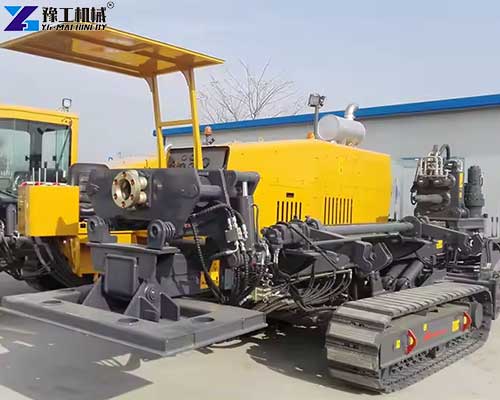

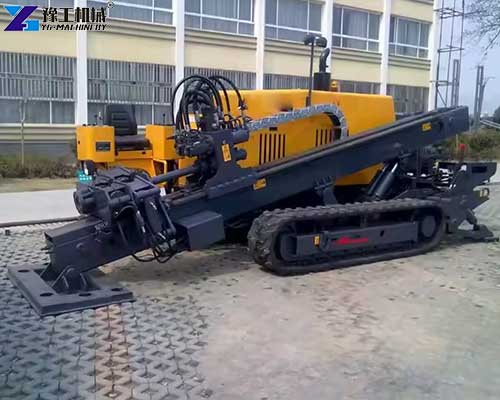

Features of horizontal directional drill rigs
YG’s underground horizontal boring machine has the following significant features:
- Efficient operation: equipped with advanced guidance system and power system to achieve fast and accurate crossing.
- Wide range of applications: from soft soil to hard rock, it can easily cope with multiple functions of core drilling rigs and water well drilling rigs.
- Strong durability: high-strength materials and precision manufacturing processes are used to ensure that the equipment can still work stably in harsh environments.
- Easy to operate: intelligent control system, supports remote monitoring and fault diagnosis, reduces the difficulty of operation.
- Environmental protection and energy saving: environmentally friendly materials and energy-saving designs are used to reduce noise and emissions during construction.

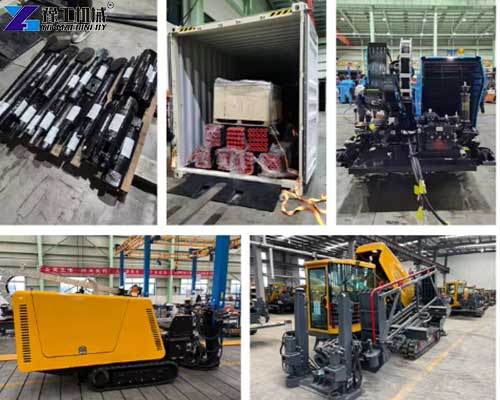

YG’s Underground Horizontal Boring Machines
As an industry-leading equipment manufacturer, YG is committed to providing high-quality and efficient underground horizontal boring machine solutions to customers around the world. Whether it is a large infrastructure project or a small maintenance operation, YG can provide tailor-made equipment and services. In addition, YG also provides supporting equipment such as fully hydraulic core drilling rigs and mud pumps to ensure that customers have a complete solution in construction.
