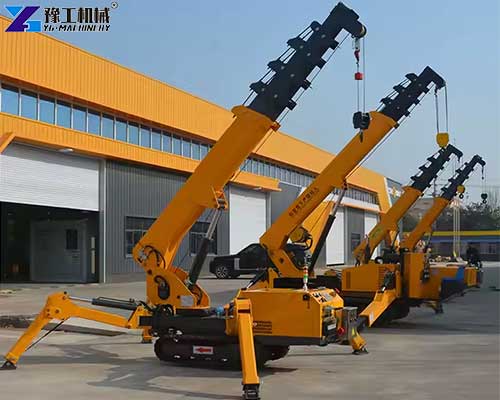

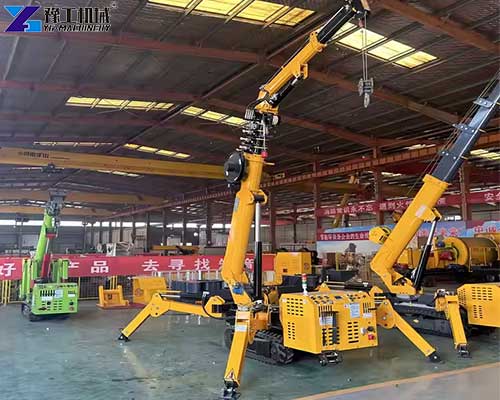

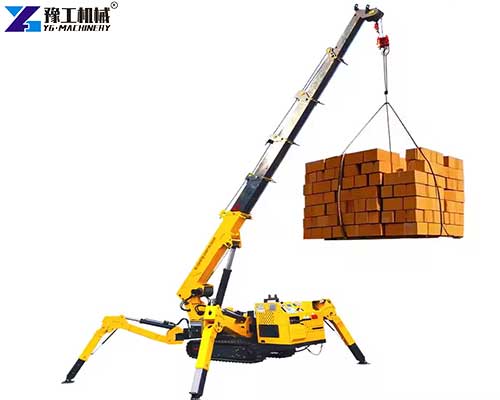

A spider crane, also known as a tracked mini crane, is a compact, flexible, and versatile lifting equipment. Its unique crawler design allows it to work freely in small spaces and complex terrains and has become a powerful assistant on many construction sites. Unlike traditional wheeled cranes, the Spider Crane can work stably on muddy and uneven ground due to its excellent terrain adaptability and low ground pressure, greatly widening the scope of operation.
Tracked Mini Crane Parameters
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |

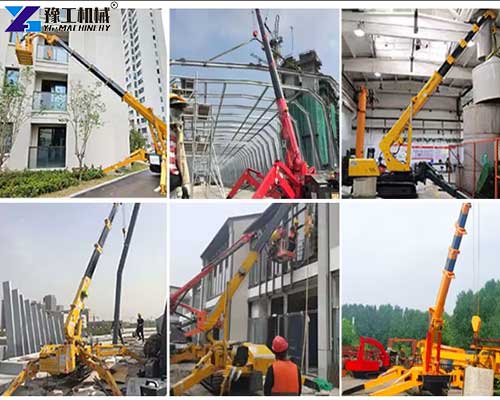

Application Scope of Small Spider Crane
Spider cranes are widely used in many fields such as urban construction, landscaping, electric power installation, and film and television shooting. In the narrow city streets for installing utility poles and billboards, or in the park for transplanting trees and placing landscape rocks, the Tracked Mini Crane can easily cope with them by its compact size and powerful functions. In addition, the Spider Crane is also used for lifting camera equipment on film and TV sets, allowing for flexible filming of complex scenes.

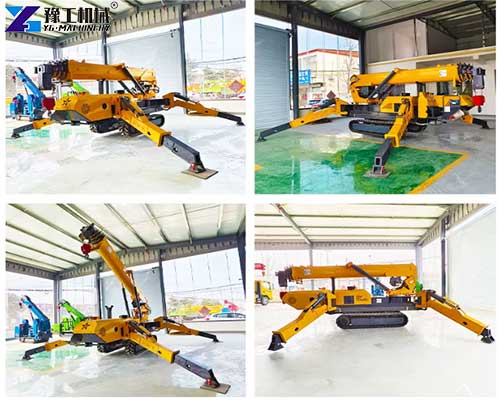

4 Advantages of the Tracked Mini Crane for Sale
- The greatest advantage of the Spider Crane is its high degree of flexibility and adaptability. Not only can it easily traverse narrow spaces, but it can also work stably on complex and changing terrains.
- At the same time, its easy operation and low maintenance costs greatly improve work efficiency.
- Compared with large cranes, the Small Spider Crane can be deployed and transferred more quickly, reducing project preparation time. Combined with the use of lifting platforms, telescopic boom forklift trucks, curved boom lifting platforms, and other equipment, it can further enhance the comprehensive operating capacity of the construction site.
- For crushing work, the spider crane can also be equipped with a pile breaker, crushing bucket, and other attachments to realize multi-purpose use and meet diversified construction needs.

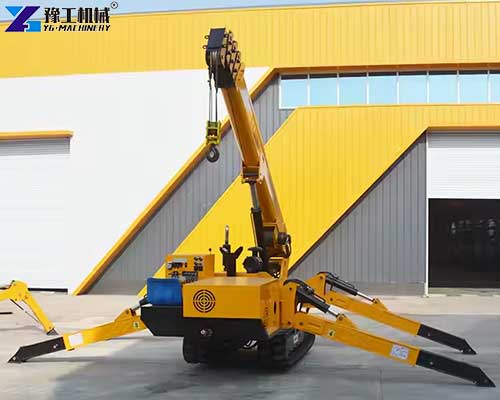

Small Spider Crane from YG
As a well-known brand in the industry, YG’s spider cranes have won unanimous praise in the market for their excellent performance, reliable quality, and considerate after-sales service. YG’s tracked mini crane series not only possesses all of the above advantages, but has also made significant progress in intelligent control, energy saving, and environmental protection, making it the first choice of many construction companies. Whether you are looking for an efficient and flexible lifting solution or considering a tracked mini crane for sale, YG’s spider crane is an option worth looking forward to.
