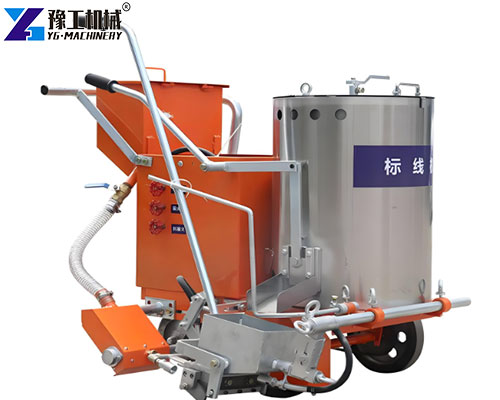

Thermoplastic paint machine is a professional road marking equipment. It evenly applies the powdered hot melt coating melted at 200℃ high temperature on the road surface by scraping and applying. Due to the short construction time, high abrasion resistance, and low price of this equipment, it is currently the most widely used kind of road marking. You can also use the thermoplastic applicator machine to remove the old route markings first, then use the scribing machine. YG gives you a high-quality road scribing machine, click the button to send your request and get the price of the machine!
Ck360s/380s Thermoplastic Paint Machine Parameters
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, removable devices | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, removable devices |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm |
| Rear Wheel Directional Device | Ensure the machine moving in a straight line or turning freely on the curved road | Ensure the machine moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery5 hours | The machine can mark road lines24 hours after charging the battery5 hours |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 150kg |

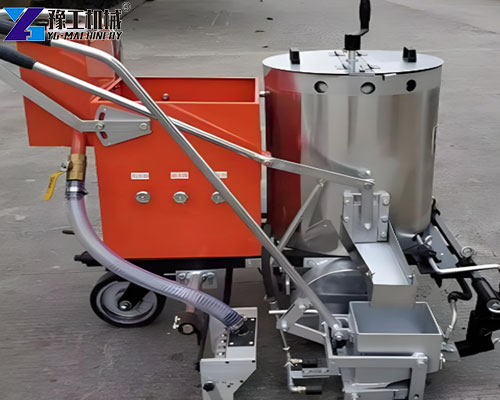

Introduction of Ck360s/380s Thermoplastic Applicator Machine

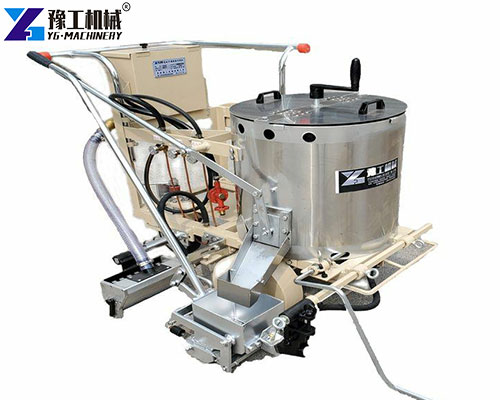

The CK360S/380S hand-push thermoplastic paint machine is the key equipment for the construction of hot melt marking. This equipment is used in conjunction with the hot melt kettle to complete the marking construction. It draws out the marking line with a flush edge, flush head, even thickness, and a beautiful line. The following is a brief introduction to the main parts of the machine:
- Heat preservation barrel: double-layer stainless steel heat preservation barrel, double-layer pot bottom, capacity 100kg.
- Adjustable glass bead spreader: synchronized clutch spreading, equipped with speed shifting device, single/double spreading can be selected according to need.
- Positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle travels in a straight line or turns freely.
- Marking width: 50mm/100mm/150mm/200mm/300mm/400mm/450mm) marking, according to your project need to draw how many centimeters of the width of the standard with how many centimeters of the marking bucket.

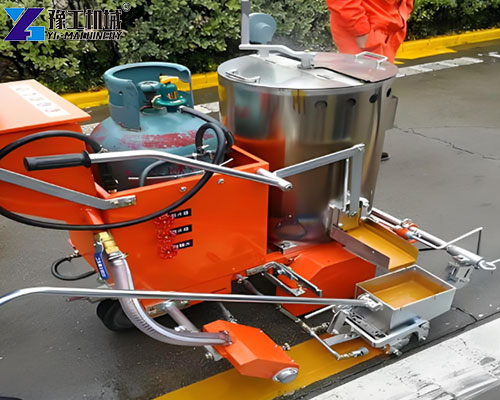

Thermoplastic Line Marking Machine Application Range
- The application range of hot melt paint marking machines is very wide and can be used for municipal roads, highways, airport runways, parking lots, and other types of road marking.
- In addition to road marking construction, thermoplastic paint machine has a wide range of applications in other fields. For example, in parking lots, underground garages, and other places. The thermoplastic road marking paint machine can be used for the construction of marking lines for parking spaces, passages, channels, and so on. In the city, hot melt paint marking machines can also be used for marking the construction of sidewalks, squares, and other public spaces.

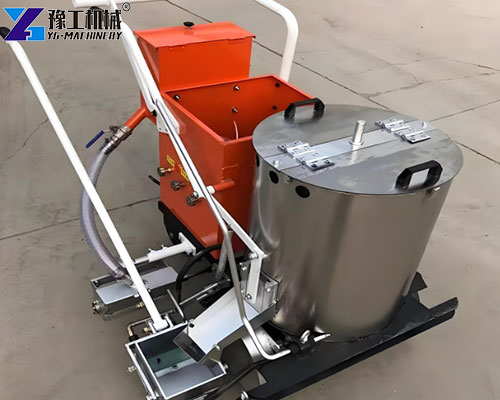

6 Characteristics of Thermoplastic Road Marking Paint Machine
- Personalized choice. We have a variety of heating and ignition methods for customers to choose from. For example: ordinary gas stoves, high-efficiency gas stoves, and gas infrared stoves. Manual ignition, automatic ignition, etc.
- Advanced heating and ignition methods greatly improve the convenience and safety of equipment operation.
- The unique design of the discharging mechanism effectively avoids the occurrence of undesirable discharging phenomena such as leakage and obstruction of materials.
- The whole machine is strong, durable, and beautiful. The internal structure of the thermoplastic line marking machine adopts hot-dip galvanizing and other efficient anti-corrosion treatments. The exterior is coated with 304 stainless steel or a high temperature-resistant surface layer.
- Equipped with a synchronized quantitative spreading clutch spreading system, so that the equipment glass bead spreading and marking line synchronization, spreading bead dosage can be controlled, and adjustable.
- The unique scraping knife bottom design makes the equipment better for sealing, opening, and closing quickly and labor-saving.

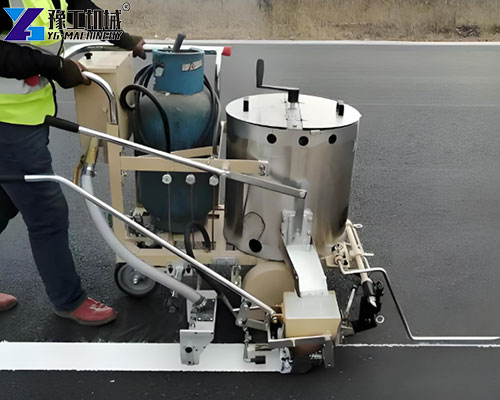

Hot Melt Road Marking Machine Use Method
- Firstly, pour the powdered hot melt paint into the hot melt kettle and heat it to 180℃～210℃.
- At the same time, stir vigorously to the molten form, and then put it into the marking machine.
- Through the scribing bucket coating effect, the formation of the edge, head and tail flush, uniform thickness, and line beautiful marking. These lines have a strong sense of three-dimensional, while the glass beads are half-submerged into the surface of the marking line, the formation of the return reflection (45 ° refractive angle), at night has a distinctive reflective effect.

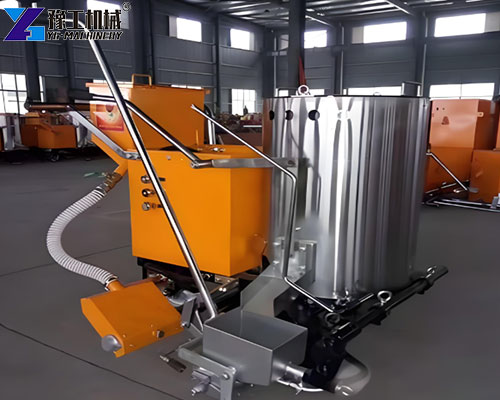

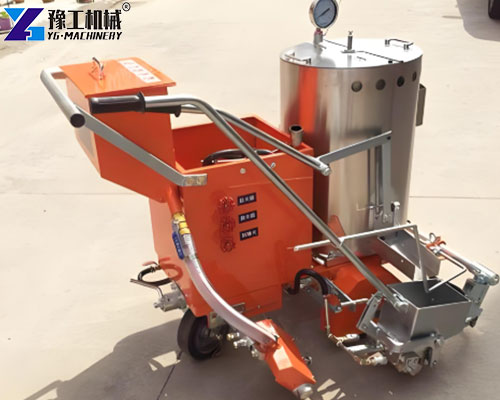

High-Quality Road Lane Marking Machine from YG
YG’s thermoplastic paint machines are widely recognized in the market for their excellent performance and stable quality.YG’s hot-melt marking machines are made with advanced manufacturing technology, which helps users achieve high-quality and efficient construction results. We also provide pavement construction equipment such as road marking removers, road sweepers, snow plows, pavement shot blasting machines, curbstone skidding machines, wall plastering machines, polyurethane sprayers, GRC sprayers, and more. Contact us for a detailed machine quote!
