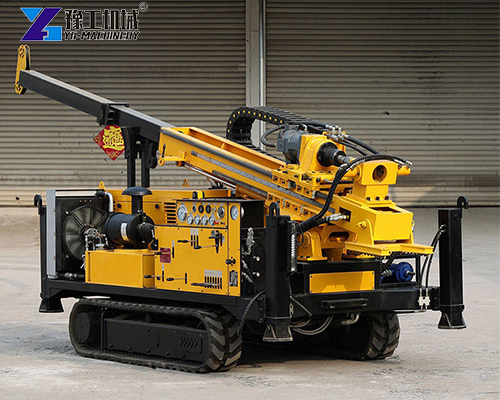

SPT rig

SPT drilling rig is a kind of precision equipment designed for geological exploration and geotechnical engineering. Its core advantage lies in the hydraulic drive system and intelligent control module, which accurately obtains stratigraphic parameters (e.g. N-value, lithology distribution) and provides reliable data support for construction projects and mine development. Compared with traditional drilling rigs, its modular design reduces transportation costs by 40%, and 90% of the operation steps can be completed by a single person. Click to get a detailed machine quote!

Free Quote Now

SPT rig parameters

ModelYGX-400YGX-600YGX-800YGX-1000
Drilling Depth(M)180-400-500200-600-650400-800-1000500-1000-1100
Rated pressure(MPA)21212528
Rated Flow(L/min)168192260300
Heat Dissipation ModeAir cooling+water cooling
Engine BrandYuchaiYuchaiYuchaiCummins
Rated power/speed78kW/ 2400r/min92kW/ 2400r/min92kW/ 2400r/min154kW/2400r/min
Drilling Angle(°)0-9045-9045-9045-90
Lifting Force(T)12162430
Feed Force(T)681215
Hydraulic Mud pump flow30-90(L/min)30-90(L/min)90-180(L/min)90-180(L/min)
Hydraulic Mud pump power4-7(MPA)4-7(MPA)4-7(MPA)4-7(MPA)
Dimension4000*1900*1800mm4000*2000*1800mm5500*2100*2000mm6000*2200*2400mm
Weight4.3T4.5/5.5T6.5T7.5T

Free Quote Now

Rack mounted spt soil test drill rigs application

SPT drilling rigs are widely used in engineering geological surveys, environmental monitoring, and resource exploration:

  1. Construction engineering: assessing foundation bearing capacity, landslide risk, and providing geomechanical data for high-rise buildings, bridges, and tunnels;
  2. Mineral exploration: quickly locate the ore layer and analyze the core composition (e.g. gold grade, shale gas content) in metal mine, oil, and gas field drilling;
  3. environmental engineering: monitoring soil pollution diffusion, underground hydrological characteristics, and supporting ecological restoration projects;
  4. Disaster prevention and control: Early warning of earthquake fault zones and mudslide risk areas through stratigraphic structure analysis;
  5. scientific research: polar glaciers, deep-sea sediment sampling, and other cutting-edge research.

Advantages of SPT drilling rig

  1. real-time monitoring screen: displaying 20 parameters such as drilling pressure, rotational speed, mud flow rate, etc., with an automatic warning for data deviation over the limit;
  2. AI core recognition: analyze the rock chip morphology through the camera, and initially judge the formation lithology (accuracy rate ≥85%);
  3. cloud storage: automatically generates drilling logs and synchronizes them to the project management platform, reducing manual recording errors.

Free Quote Now

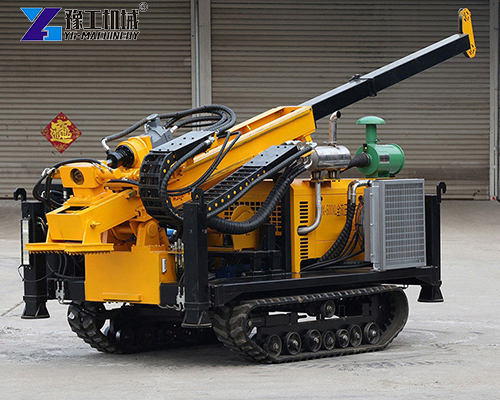

Why choose YG SPT drilling rigs?

YG SPT drilling rigs are equipped with a high-pressure hydraulic drive system, with a maximum torque of 8,500N-m, and with an automatic feeding device, the drilling speed of 3-5m/hour can still be achieved in Class VI hard rock (compressive strength ≤200MPa).
Technical highlights:

  1. Double pump merging technology, power output increased by 35%;
  2. quick-change drill pipe design, single change time <2 minutes;
  3. multi-position speed regulation, adapting to clay, gravel, bedrock, and other strata.
  4. Conqueror of Complex Geology: Comprehensive Adaptation from Desert to Permafrost.

Free Quote Now

YG provides you with customized solutions for SPT drilling rigs

  1. YG SPT drilling rigs provide customized solutions for extreme environments:
  2. High-temperature and arid zones: strengthened heat dissipation system + sand-proof cartridge to guarantee continuous operation under 50℃ working conditions;
  3. tundra zone: low-temperature start-up technology, maintaining the best hydraulic fluid fluidity under -30℃ environment;
  4. marshy wetlands: wider track undercarriage (grounding specific pressure ≤ 0.03MPa) to prevent equipment subsidence.
    Application examples: In the oil and gas exploration project in the Siberian tundra, the drilling qualification rate of YG equipment reached 98%, far exceeding the industry average.

From cost control to intelligent upgrading, from extreme environment adaptation to green compliance, YG SPT drilling rigs are redefining the efficiency standard of geological exploration. If you are looking for cost-effective and reliable exploration solutions, contact the YG team today for the SPT Drill Rig Selection Guide and exclusive quote!
