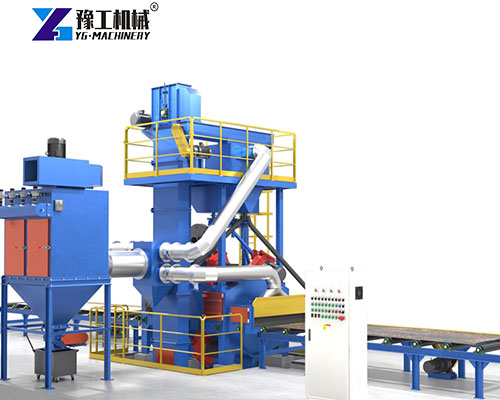

Roller conveyor shot blasting machine, also known as roller conveyor shot blasting machine, is a type of channel shot blasting machine. It uses a roller conveying system to allow the workpiece to be shot blasted in continuous motion. Compared with traditional shot blasting equipment, this design allows shot blasting operations to be carried out uninterruptedly, greatly improving production efficiency. Compared with the drum conveyor sandblasting machine, the roller conveying system of roller conveyor blasting machines can better adapt to workpieces of different shapes and sizes and is more versatile.
Roller conveyor shot blasting machine parameters
| Parameter | YG-698 | YG-6912 | YG-6915 | YG-6920 | YG-6925 | YG-6930 | YG-6940 |
| The effective cleaningwidth(mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| The room feed-insize(mm) | 1000*400 | 1400*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
| The length of cleaningThe workpiece (mm) | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
| The speed of the conveyor(m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| The thickness of the cleaningsteel sheet(mm) | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-100 |
| The section steelspecification(mm) | 800*300 | 1000*300 | 1500*300 | 2000*300 | 2500*700 | 3000*700 | 4000*300 |
| The quantity of shotblasting(kg/min) | 4*180 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| The first enclosedquantity(kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| Roll brush adjustingheight(mm) | 200 | 200 | 350 | 450 | 600 | 850 | 900 |
| Total power (kW) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
| Airness size(m3/h) | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
Roller conveyor blasting machines application
- Mechanical manufacturing: surface cleaning and strengthening of various mechanical parts, such as gears, shafts, flanges, etc., to eliminate surface stress and improve the mechanical properties of parts.
- Automobile manufacturing: used for the pretreatment of automobile parts, such as engine cylinders, chassis parts, etc., to remove impurities generated during casting or processing and enhance coating adhesion.
- Building hardware: surface treatment of metal components used in buildings, such as door and window hinges, bolts, etc., to improve appearance and rust resistance.
- Metal recycling: In the recycling of scrap metal, remove the oil and impurities on the surface to facilitate subsequent smelting and reprocessing.

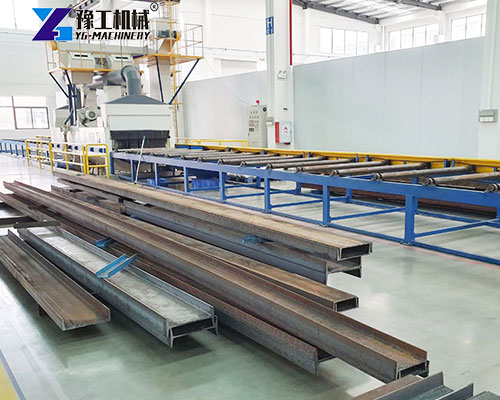

Structure of channel shot blasting machine
- Roller conveying system: responsible for the conveying of workpieces, ensuring that the workpieces pass through the shot blasting chamber at a uniform speed and receive uniform shot blasting treatment.

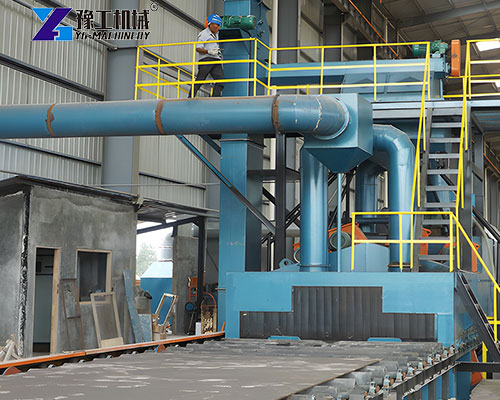

- Shot blasting machine: The high-speed roller conveyor shot blasting machine accelerates the projectiles and projects them onto the surface of the workpiece to achieve surface cleaning and strengthening.
- Shot recovery system: collect the processed projectiles, screen and separate them, and send qualified projectiles back to the shot blasting machine for recycling.
- Dust removal system: effectively collects the dust generated during the shot blasting process and purifies the workshop air.

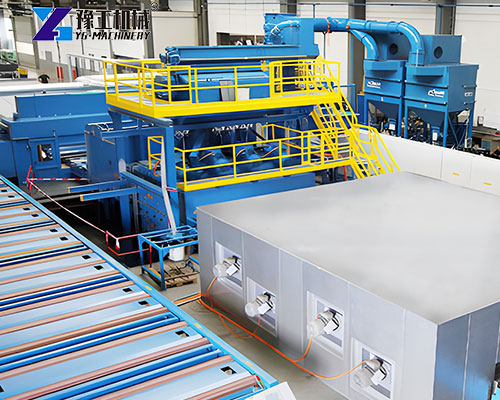

Why use a channel shot blasting machine?
- Efficient production: The continuous roller conveying design enables uninterrupted shot blasting operations, greatly improving production efficiency and reducing production costs.
- Good treatment effect: The shot blasting machine arranged at multiple angles ensures that the surface of the workpiece is fully and evenly treated, improving product quality.
- Environmental protection and energy saving: Advanced shot recovery and dust removal system reduces the consumption of shot and dust emission, meeting environmental protection requirements.
- Easy operation: The automated control system reduces the difficulty and labor intensity of manual operation.

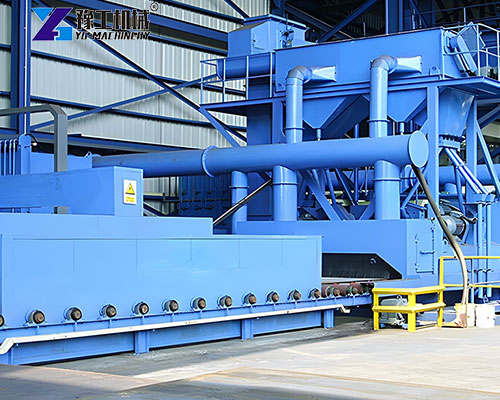

High-quality drum conveyor sandblasting machine from YG
As a well-known shot blasting machine manufacturer in the industry, YG has rich experience in the research and development, and production of roller conveyor shot blasting machines. The company’s technical team can provide customized solutions according to the different needs of customers. From equipment design, manufacturing to installation and commissioning, YG provides one-stop service. The strict quality control system ensures that each equipment meets high standards and is stable and reliable. At the same time, YG also provides comprehensive after-sales service to solve problems encountered by customers during use.
