Punch and shear machine applies pressure to metal sheets through dies to achieve shearing, punching, or bending operations. It integrates multiple functions in one, can replace multiple single-function equipment, and greatly improves production efficiency. Whether it is thin plates or medium and thick plates, it can be processed accurately. Quickly process a variety of metal materials, bringing efficiency and convenience to industrial production. Click to buy a punch and shear machine to help your metal processing efficiency!
Punch and shear machine parameters
| Model | Q35Y-15 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | Q35-16 |
| Punching pressure(kN) | 45 | 70 | 90 | 120 | 140 | 200 | 250 | 63 |
| Max. shearing thickness(mm) | 8 | 16 | 20 | 25 | 30 | 40 | 40 | 16 |
| Strength of steel plates(n/m㎡) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| The angle of shearing(deg) | 7° | 7° | 8° | 8° | 8° | 8° | 8° | 13° |
| Shearing sizes of one stroke(w*h)(mm) | 200*15300*12 | 16*2508*400 | 20*33010*480 | 25*33016*600 | 30*35520*600 | 35*40025*700 | 40*40030*700 | 16*120 |
| Ram stroke(mm) | 60 | 80 | 80 | 80 | 80 | 100 | 100 | 26 |
| Number of strokes (times/min) | 10 | 12 | 16 | 16 | 12 | 10-20 | 10-20 | 36 |
| Depth of throat(mm) | 200 | 300 | 355 | 400 | 600 | 560 | 560 | 450 |
| Punching thickness(mm) | 15 | 16 | 20 | 25 | 26 | 35 | 35 | 16 |
| Max. Diameter of punching(mm) | 24 | 25 | 30 | 35 | 38 | 40 | 45 | 28 |
| Main motor power(kW) | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 4 |
| Dimensions of machine(L*W*H)(mm) | 1450*590*1620 | 1650*760*1780 | 1850*800*1930 | 2350*960*2100 | 2620*980*2380 | 2800*1250*2400 | 3000*1400*2400 | 1950*800*1950 |
| Machine weight(kg) | 1200 | 1600 | 2300 | 4200 | 6200 | 8600 | 11600 | 2800 |
What materials can the punch shear machine process?
This machine is called a “metal universal processor”!
- Plate type: Easily cut 10mm thick steel plates, punching diameter covers 5-50mm.
- Profile type: Angle steel, square tube, and round steel are formed in one time, and the cut is smooth without secondary grinding.
- Special materials: Stainless steel, aluminum alloy, and copper plate can be handled, and the applicable thickness range is super wide.
Why do people use the iron worker machine for sale?
- Accurate and efficient
Under the control of the CNC system, the error is less than 0.1mm, which is suitable for precision parts processing. Compared with traditional shearing machines, the efficiency is increased by more than 50%. - Multifunctional integration
One device can complete punching, corner cutting, bending, and other processes. Feedback from a metal processing plant in the Philippines: “The punch shear machine allows us to compress the process from 5 steps to 1 step.” - High safety
Fully automatic feeding and fixture fixing reduce the risk of manual operation. Data from the Guatemala factory showed that the work injury rate dropped by 70% after use. - Cost saving
Reduce mold replacement time and reduce energy consumption. A company in Myanmar calculated that it can save about 40% of equipment maintenance costs within three years.
Metal punch and shear machine application industry
Punching and shearing machines are widely used in many industries.
- Construction industry: cutting steel trusses, processing embedded parts, and helping with fast construction.
- Automobile manufacturing: punching and forming of body sheet metal parts with an accuracy of 0.1mm.
- Metal processing: making shelves, guardrails, ventilation ducts, one machine for multiple uses and super flexibility.
- Maintenance industry: On-site modification of metal parts, no need to return to the factory to save time.

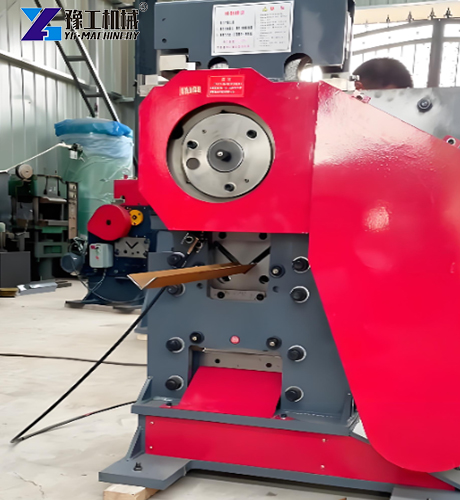

Features of YG punching and shearing machine
- First, it has strong power. It uses high-efficiency motors and advanced transmission systems to provide stable power output.
- Second, the blade is durable. The blade is made of high-quality steel. The strong wear resistance reduces the frequency and cost of blade replacement.
- Third, the machine is equipped with a user-friendly operation interface. Parameters can be set and the program controlled through the touch screen. The operation is simple and intuitive.
- Fourth, it is safe and reliable. The machine is equipped with multiple safety protection devices, such as overload protection, emergency stop button, etc.
In addition, the YG punching and shearing machine also has good stability, low vibration, and low noise during processing, creating a good working environment for the workshop.
Buy punch and shear machine from YG manufacturer
A punching and shearing machine is a practical equipment in the field of metal processing. It can improve production efficiency and reduce costs for enterprises. With its unique advantages, the YG punching and shearing machine has become the trusted choice of many customers. We have many years of production experience and advanced technical strength, and our products are of reliable quality. The company focuses on after-sales service. If you have metal processing needs, you might consider the punching and shearing machines of YG manufacturers to help your production. Click to get the factory price of high-quality punching and shearing machines!
