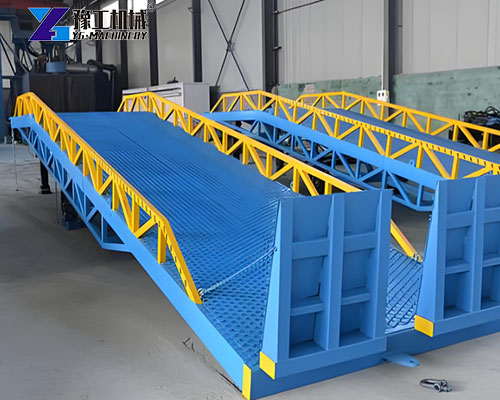

A portable trailer ramp is a cargo loading and unloading auxiliary equipment used in conjunction with a forklift. It can adjust the height according to the height of the car compartment so that the forklift can drive directly into the compartment for batch loading and unloading operations. This product is widely used in warehousing logistics, manufacturing, and other fields. Only one person is required to operate it, which can achieve rapid loading and unloading of goods, greatly improving work efficiency.
Portable trailer ramp parameters
Item | YGY6-0.9 | YGY8-0.9 | YGY10-0.9 | YGY12-0.9 | YGY15-0.9 |
Main Bean Size(mm) | 160*80*4 | 160*80*5 | 160*80*4 | 200*100*5 | 160*80*4 |
Auxiliary Beam Size(mm) | 100*50*3 | 100*50*4 | 100*60*4 | 120*60*5 | 120*80*5 |
Rated Load(kg) | 6000 | 8000 | 10000 | 12000 | 15000 |
Variable Range(mm) | 1100-1800 | 1100-1800 | 1100-1800 | 1100-1800 | 1100-1800 |
Bridge Length(mm) | 11400 | 11400 | 11400 | 11400 | 11400 |
Bridge Width | 2000 | 2000 | 2000 | 2000 | 2000 |
Solid Tire | 600-9 | 600-9 | 600-9 | 700-9 | 700-9 |
Shelf | 10# | 10# | 10# | 12# | 14# |
Tongue Plate | 14 | 14 | 16 | 20 | 20 |
Machine Quality | 2400 | 2600 | 2800 | 3500 | 5000 |

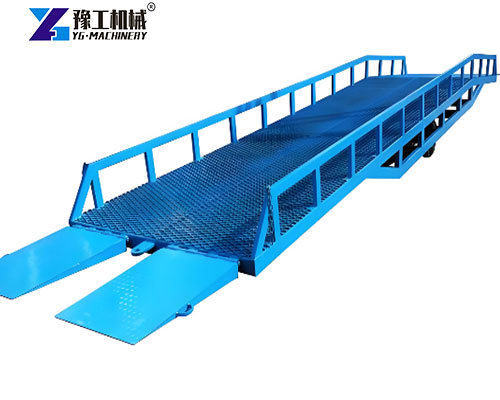

Widely used temporary loading dock
- Logistics park: compatible with a variety of models, such as container trucks and cold chain trucks;
- Manufacturing factory: connect production lines and transportation lines to reduce material handling distance;
- Temporary venues: loading and unloading of exhibition materials, construction of emergency channels for disaster relief;
- Cross-border transportation: After folding, the size is only 2.5m×1m, which can be easily loaded into a standard container.

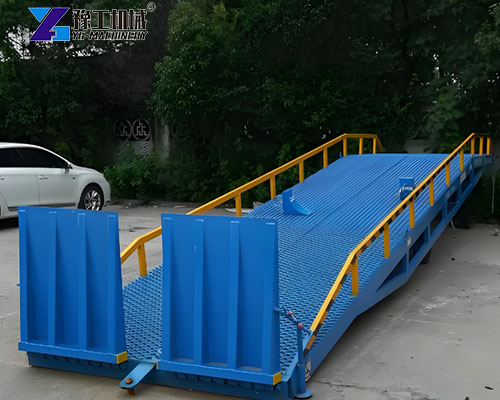

Why use a portable truck dock?
Traditional fixed loading and unloading platforms have a long construction period and high cost. And the height cannot be flexibly adjusted. YG Portable Loading Dock adopts modular design. The procurement cost is only 1/3 of that of a fixed platform, and no civil construction is required. For example, a logistics company saved 42% of loading and unloading labor costs within 6 months by deploying 3 loading docks. The return on investment period was shortened to 8 months.

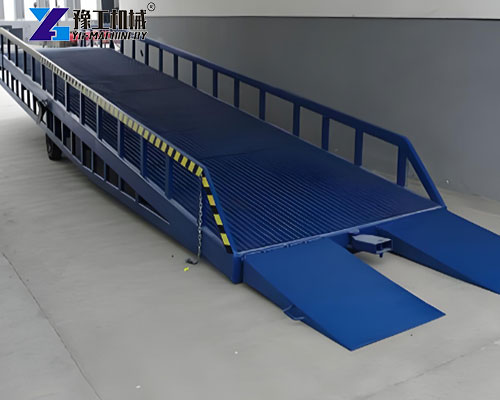

YG provides an efficient movable dock ramp
YG loading dock is equipped with an intelligent hydraulic lifting system. It can complete the height adjustment of 0.5-1.8 meters within 30 seconds and adapt to different models. Its widened non-slip bridge deck (width 2.2 meters) allows forklifts to pass in both directions. The single loading and unloading time is compressed from 15 minutes to 7 minutes. In the actual test of e-commerce warehousing, the average daily cargo throughput increased by 120%, and the order processing efficiency during peak hours far exceeded that of peers.
Portable trailer ramps are safer
Traditional manual boarding bridges can easily cause goods to tip over and people to fall, while the YG boarding bridge has triple safety guarantees:
- Anti-slip design: The bridge deck is embedded with a wavy anti-slip steel plate, and the friction coefficient is increased by 60%;
- Automatic locking: The hydraulic system automatically locks the position when a sudden power outage occurs to prevent the bridge from sliding down;
- Intelligent warning: Equipped with sound and light alarm devices to remind people and vehicles to avoid in real time.
- After a specific auto parts factory used it, the loading and unloading accident rate dropped from an average of 3 per year to 0.
Why choose YG’s temporary loading dock?
- Leading technology: It has 23 national patents and a load-bearing capacity of 10 tons (the industry average is 5 tons);
- Fast delivery: With three major production bases in China, Southeast Asia, and Europe, spot goods are shipped within 48 hours;
- Worry-free after-sales service: Provide 2-year whole machine warranty + lifetime free technical support;
