A portable stone crusher machine is efficient mobile equipment that integrates crushing, screening, and conveying functions. It is widely used in many fields, such as mining, construction, highways, etc. It has a powerful crushing capacity and flexible operation mode. The mobile crushing plant can easily transfer to the operation site through a tire or crawler walking device. It is ideal for modern crushing operations. Click to get the best price for the mobile crusher machine!
Types of Mobile Crusher Machines Provided By YG

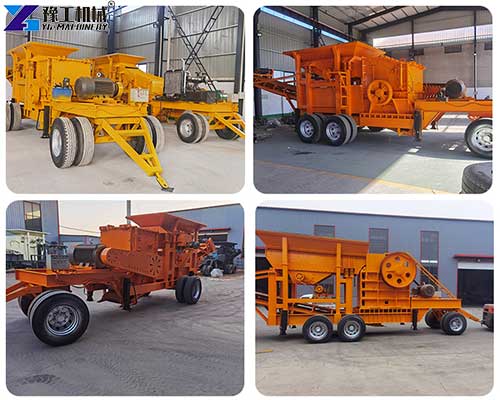

1. Tire type mobile crusher machine
1.1 Mobile jaw crusher for sale
Mobile jaw crusher has two parts: fixed jaw and movable jaw. The movable jaw is connected to the driving device through an eccentric shaft to produce up-and-down movement for crushing.
| Model | 46 | 57 | 69 | 750/1060 | 900/1200 |
| Hop length*width(m) | 5*2 | 3.5*2 | 4*28 | 4.5*2 | 4.5*2.2 |
| Hop thickness(mm) | 8 | 8 | 8 | 10 | 12 |
| I-beam model of chassis | 250 | 250 | 400 | 450 | 620 |
| Conveyor belt length *width(m) | 7*0.8 | 8*0.8 | 8*0.8 | 9*1 | 9*1 |
| Feeder thickness | 0.8 | 0.8 | 1 | 1.2 | 1.2 |
| Motor power | 30kw6g | 55kw6g | 75kw | 1 10KW | 110kw |
| Diesel engine power | 6105 | 6105 | 6110 | 615 | 618 |
| Diesel engine oil volume per hour | 10L | 12L | 14L | 18L | 20L |
| Maximum feed size (mm) | 350 | 450 | 550 | 700 | 800 |
| Head length* width*height(mm) | 1700*1700*1650 | 2000*1950*1900 | 2200*1960*1950 | 2500*2370*2780 | 3200*2820*3260 |
| Discharge port adjustment range(mm) | 40-100 | 50-120 | 75-200 | 80-235 | 186-396 |
| Production output/t/hour | 14-36 | 30-80 | 56-192 | 108-256 | 186-396 |

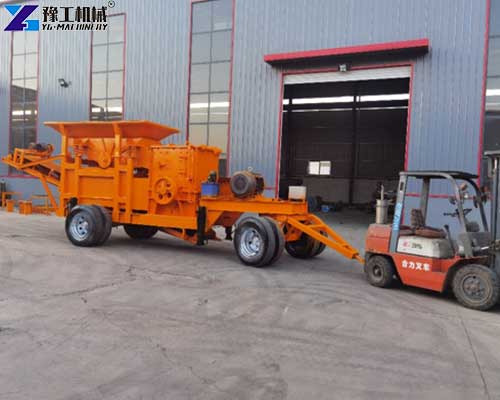

1.2 Mobile box stone crusher
The structure of the portable stone crusher machine is the top is the bin, and below the bin is the feeding ER machine. The crusher relies on the motor or diesel engine to drive the hammer in the crushing box, using the hammer to break the stone.
| Model | 800×800 | 800×1000 | 1000×1200 | 1200×1200 | 1200×1500 | 1400×1600 |
| Motor power | 90kw×4G | 110kw×4G | 132kw×4G | 160kw×4G | 185kw×4G | 250kw×4G |
| Diesel power | 195HP | 195HP | 260HP | 330HP | 330HP | 400HP |
| Hopper | 3500×1800×8mm | 3600×2200×8mm | 3600×2200×8mm | 3800×2200×8mm | 3800×2200×8mm | 4000×2400×10mm |
| Hammerhead Weight | 15kg | 15kg | 20kg | 36kg | 36kg | 55kg |
| Total weight | 10t | 12.5t | 14t | 19t | 21t | 26t |
| Belt | 7×0.8m | 8×0.8m | 8×1m | 8×1m | 8×1m | 9×1m |
| Belt conveyor power | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| Tyre model×number | 1100×8pcs | 1100×8pcs | 1100×8pcs | 1000×12pcs | 1100×12pcs | 1100×12pcs |
| Sand capacity | 30t | 45t | 55t | 65t | 80t | 100t |
| Stone capacity | 50t | 70t | 80t | 90t | 120t | 180t |
| Overall size | 10*2.8*3.5m | 11*2.8*3.5m | 11.5*2.8*3.5m | 12*3*3.6m | 12*3*3.6m | 13*3.2*3.7m |

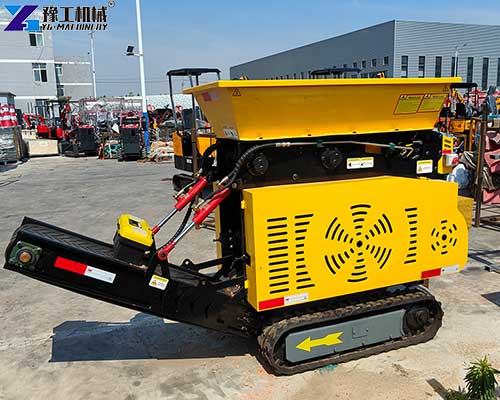

2. Crawler portable crusher machine
This type of crusher moves by the crawler. The portable stone crusher machine is characterized by high performance, high reliability, and beautiful modeling. It is widely used in road and bridge construction, urban construction, metallurgy, energy, and other sectors for crushing, screening,g and other operations.
| Power System | |
| Gasoline engine | 12.5kw/3600r/min |
| Diesel engine | 10.5kw/3600r/min |
| Walking part | |
| Crawler chassis size(mm) | 1220*770 |
| Track model(mm) | 180*72*37 |
| Walking speed(km/h) | 0-3 |
| Track specifications | Steel wire rubber tracks |
| Feeding equipment | |
| Silo volume(m3) | 0.5 |
| Stacking height(mm) | 900-1200 |
| Feeding conveyor(mm) | 1450*400 |
| Jaw plate adjustment range(mm) | 25 |
| Equipment appearance | |
| Working size(mm) | 2950*770*1630 |
| Vertical board inner width(mm) | 410 |
| Transport size(mm) | 2100*770*1760 |
| The total outer width of the guard(mm) | 740 |
| Feed specifications | |
| Feed port(mm) | 200*370 |
| Maximum feed size(mm) | 200 |
| Production capacity(T/D tons/day) | 3-10 |

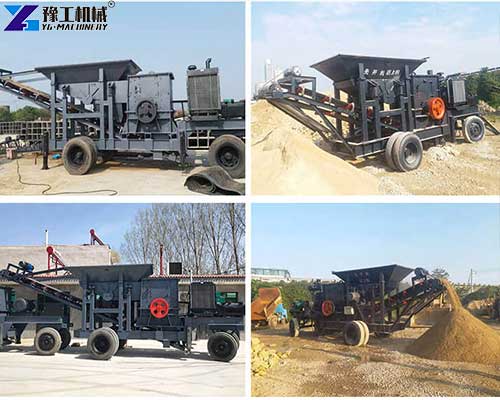

Mobile Crushers And Screeners Application
- Application fields: Portable stone crusher machines can be mainly applied in the fields of engineering and construction, mining, solid waste treatment, metallurgy, and chemical industry, building materials, hydropower, urban infrastructure construction, etc. It can crush and screen all kinds of raw materials.
- The raw materials that can be crushed and screened by the mobile crushing plant include: sand and gravel aggregates for highway, railroad, tunnel, bridge, and other projects; ores of different hardness and types; solid wastes such as construction waste and industrial waste; scrap steel, scrap iron and chemical raw materials for crushing and processing.

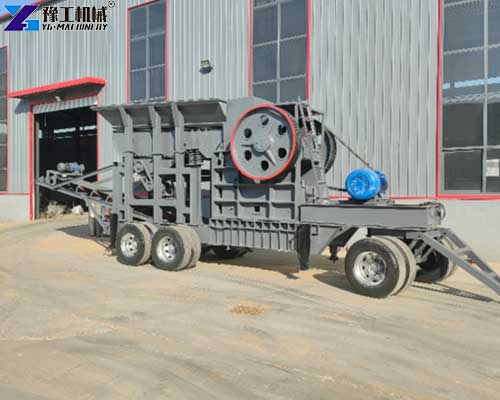

5 Features Of Mobile Jaw Crusher For Sale
- The mobile crusher and other equipment are combined to form a production line. The process is smooth, reliable, easy to operate, highly efficient, and energy-saving.
- The portable stone crusher machine has good mobility and can be extended with raw materials or construction sites. It can also be combined in various ways to meet the demand for processing different materials.
- The whole machine has multiple functions such as feeding, crushing, and screening. It is adaptable, flexible, and convenient, and can save a lot of transportation costs.
- The mobile crushing plant can crush and process various materials such as quartzite, lapis lazuli, granite, and construction waste. The crushed materials have even particle size, complete shape, and better quality.
- The plant adopted an intelligent PLC automatic monitoring system, which can predict equipment failure and avoid major accidents. This can guarantee the stable operation of the production line.

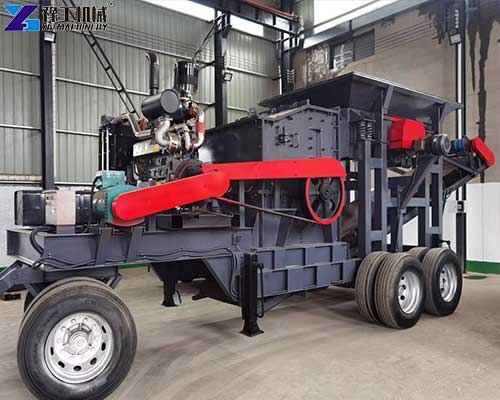

Portable Crusher Machine From YG
YG is an enterprise specializing in the research, development, production, and sales of construction machinery. We are committed to providing customers with high-quality and efficient portable stone crusher machines. YG’s mobile crushing plant has won the trust of domestic and foreign customers with its excellent performance and stable quality. YG has rich experience in helping customers choose reliable and efficient mobile crushing plant solutions. We also provide hydraulic rope saws, hydraulic wall saws, water well drilling rigs, core drilling rigs, rebar straightening and cutting machines, rebar bending machines, concrete mixers and pumps, and other equipment. Click to get a free quote for a mobile crushing plant!
