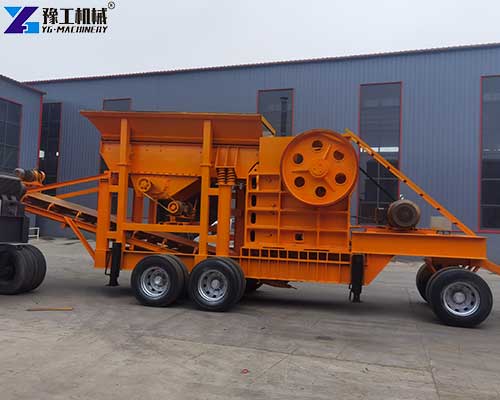

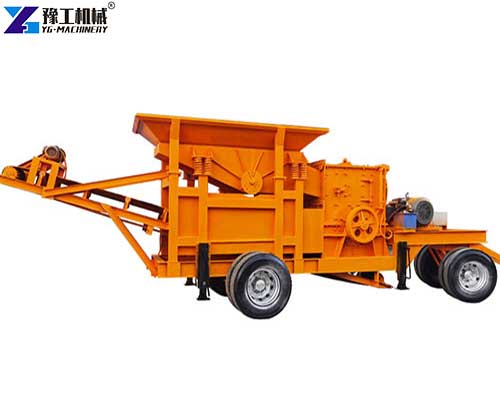

A mobile mini crusher is a crushing equipment that can be moved freely. It contains four systems: feeding, screening, conveying, and crushing. One machine can complete the whole crushing process. Users do not need to carry out complicated foundation construction, simple installation can be put into production. We will recommend the right crushing solution according to your specific production situation. Click to get the details of the equipment!
Mobile Mini Crusher Parameters
| Model | 800×800 | 800×1000 | 1000×1200 | 1200×1200 | 1200×1500 | 1400×1600 |
| Motor Power | 90kw×4G | 110kw×4G | 132kw×4G | 160kw×4G | 185kw×4G | 250kw×4G |
| Diesel Power | 195HP | 195HP | 260HP | 330HP | 330HP | 400HP |
| Hopper | 3500*1800*8mm | 3600*2200*8mm | 3600*2200*8mm | 3800*2200*8mm | 3800*2200*8mm | 4000*2400*10mm |
| Hammerhead Weight | 15kg | 15kg | 20kg | 36kg | 36kg | 55kg |
| Total Weight | 10t | 12.5t | 14t | 19t | 21t | 26t |
| Belt | 7×0.8m | 8×0.8m | 8×1m | 8×1m | 8×1m | 9×1m |
| Belt Conveyor Power | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| Tyre Model×Number | 1100×8pcs | 1100×8pcs | 1100×8pcs | 1000×12pcs | 1100×12pcs | 1100×12pcs |
| Sand Capacity | 30t | 45t | 55t | 65t | 80t | 100t |
| Stone Capacity | 50t | 70t | 80t | 90t | 120t | 180t |
| Overall Size | 10*2.8*3.5m | 11*2.8*3.5m | 11.5*2.8*3.5m | 12*3*3.6m | 12*3*3.6m | 13*3.2*3.7m |

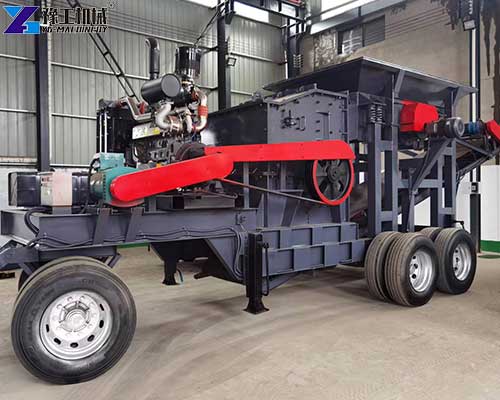

Mini Stone Crusher Plant Application Scope

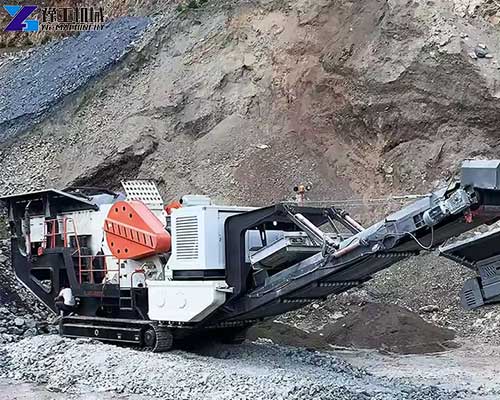

- Mobile mini crushers are now widely used in mining, metallurgy, quarry, construction waste, smelting, electric power, building materials, highways, railroads, water conservancies, transportation, chemical industry, and other fields.
- Mini stone crusher plants can crush and process cobblestone, lapis lazuli, granite, limestone, basalt, quartzite, construction waste, and so on. The processed materials can be used as high-quality raw materials in the construction of buildings, airports, highways, railroads, bridges, and so on.
Working Principle of Mobile Stone Crusher

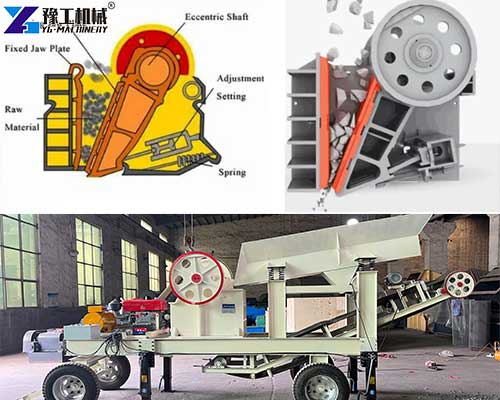

The mobile mini crusher’s motor drives the eccentric shaft to rotate through the belt pulley, and the movable jaw plate and fixed jaw plate keep approaching, separating, and rubbing. This pair will squeeze and crush the material, breaking the material into small sizes. Then the materials smaller than the size of the screen hole will gradually fall, and finally be discharged from the discharge port.
Working Principle of Mobile Stone Crusher
- Feeding: The materials are fed into the crushing chamber through the feeding opening of the jaw crusher.
- Crushing: The material is clamped by the fixed jaw plate and the movable jaw plate, and with the up and down movement of the movable jaw plate, the material is continuously subjected to squeezing force and shear force, and finally crushed into smaller particles.
- Discharge: The crushed materials fall into the bottom of the crushing chamber and are then discharged through the discharge opening.
5 Features of Mini Mobile Crusher
- A small mobile mini crusher has a large crushing ratio and strong anti-wear ability.
- We use composite wear-resistant materials to make jaw plates, side guards, elbow plates, and other worn parts. In daily operations, the failure rate is low and the operation cost is low.
- The mobile crusher is small in size and saves floor space.
- The equipment configuration is simple and reliable, especially suitable for small and medium-sized stone crushing yards and sand processing needs.
- The mobile crusher has an advanced technology process, strong strength, and wide application, which is people’s first choice of stone-crushing equipment.

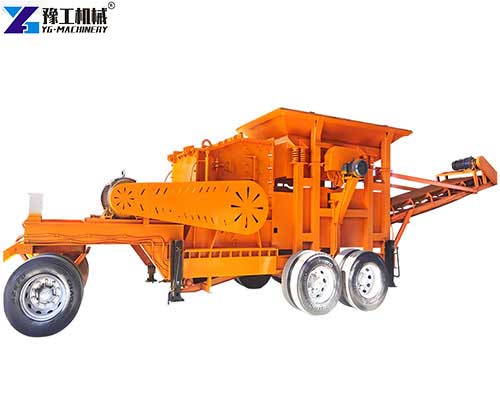

Portable Jaw Crusher For Sale From YG
YG as a famous engineering equipment manufacturer, our mobile crushing plant has been exported to Zimbabwe, Tanzania, South Africa, Australia, the USA, Canada, Peru, Georgia, and so on. We have rich manufacturing experience and use high-quality wear-resistant materials to build the mobile mini crusher. They are durable, efficient, and easy to operate. We also produce electric rope saws, hydraulic wall saws, core drilling machines, rebar bending machines, curbstone slip molding machines, shot blasting machines, polyurethane spraying machines, and other equipment. Click to get a free portable jaw crusher for sale quote!
