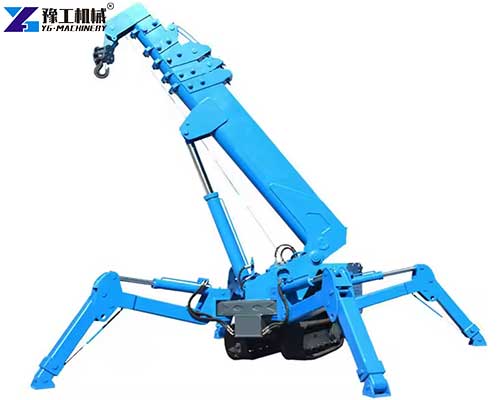

Want to complete lifting operations in small spaces or complex environments easily? Mini spider crane is your ideal choice! Tracked mini crane is known for its compact size and powerful functions, and is being favored by more and more industries. It is small and lightweight, but can achieve precise lifting through hydraulic or electric systems. Mini spider crane is particularly suitable for narrow construction sites, interior decoration, or high-altitude operations, and is a flexible alternative to traditional cranes.
Mini spider crane parameter
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1 m-9.2 m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |

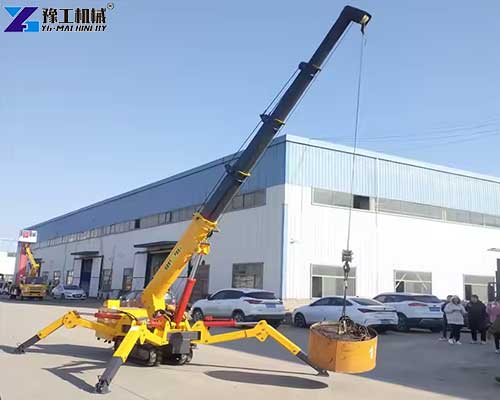

Tracked mini crane with wide application
People often use a mini spider crane to complete these tasks:
- Small spider cranes are mainly used in scene operations, such as interior decoration, roof operations, and municipal engineering.
- Factory workshops: lifting production line equipment, molds, or high-altitude maintenance in the chemical and power industries.
- Warehousing and logistics: Accurately stacking goods in warehouses or moving small containers at port terminals.
- Glass curtain wall installation: easily lift large pieces of glass to high altitudes.
- Basement construction: transport equipment through narrow passages.
- Film and television shooting: silent design does not disturb the work on the set.

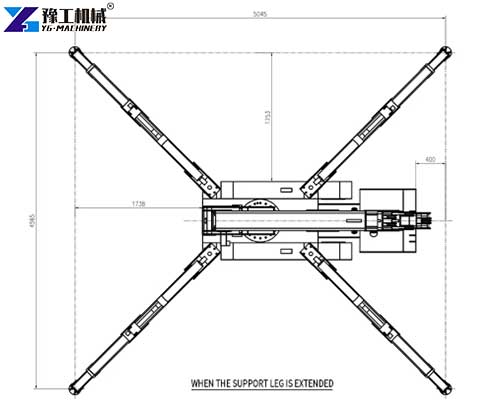

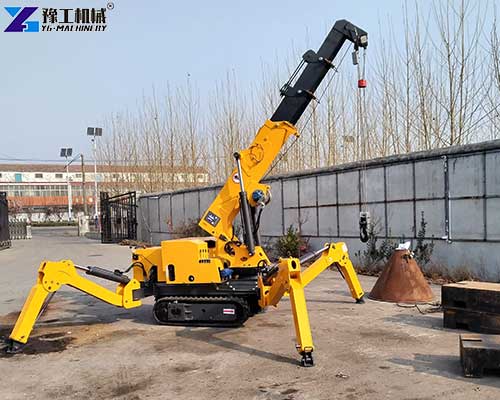

Spider crawler crane structure
A typical spider crawler crane consists of three parts:
- Telescopic arm + 360° rotating table: precise positioning of goods, no blind spot coverage.
- Crawler chassis: adapts to muddy ground and slopes, with strong stability.
- Hydraulic outriggers: when working, the outriggers are unfolded, and the load-bearing capacity is doubled.
- Some models are also equipped with a remote control operation function, so the operator is away from the dangerous area, doubling the safety!
5 advantages of using a spider crane
- Flexible adaptation to narrow spaces. The compact body can pass through a 1-meter-wide passage and work freely in restricted areas such as indoors and on rooftops.
- The outriggers can be extended and retracted independently, and obstacles (such as wires and trees) can be avoided through “working radius optimization”.
- Efficient cost reduction. No need for large transport vehicles, you can go directly to the site, saving logistics time and costs.
- The dual power system supports silent operation, which is suitable for night construction or noise-sensitive areas.
- More safe and reliable. Outrigger ground protection, anti-tilt device, boom limit marking line + alarm, double insurance to ensure safe operation.
Mini spider crane manufacturer-YG
From construction sites to cultural performances, mini spider cranes are becoming an indispensable tool for modern engineering. Its flexible, safe, and efficient characteristics perfectly meet the needs of diverse scenarios. As an industry benchmark, YG continues to provide high-quality tracked mini cranes and spider crawler cranes solutions to global users. Whether it is a short-term project or a long-term cooperation, YG spider crawler crane can help you easily meet the challenges!
