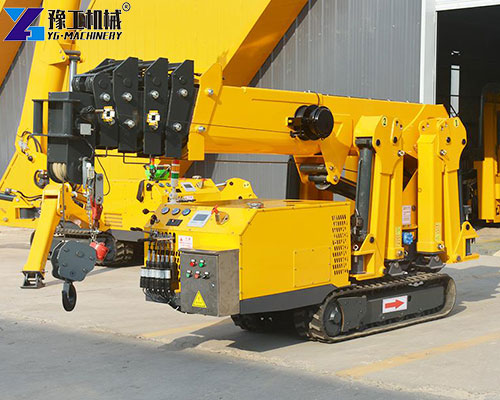

The mini crawler crane for sale is named because its appearance resembles a spider after its legs are unfolded. It combines a crawler chassis and a telescopic arm and is a miniature lifting equipment. This equipment is small in size but has a strong lifting capacity. It belongs to a small crawler crane. It has both the passability of crawler machinery and flexible operating performance, and can adapt to complex and changing working environments.
Mini crawler crane for sale parameters
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1 m-9.2 m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
Small spider crane’s widely applicable
The small spider crane is particularly suitable for those work scenarios where large lifting equipment is difficult to use.
- In interior decoration, shopping malls, office buildings, and other places. These spaces are limited and require ground protection. Small spider cranes can easily enter and lift decoration materials.
- In the power inspection and maintenance work, in areas such as substations and distribution rooms, the equipment is compact, and the small spider crane can flexibly shuttle to complete the installation and maintenance of the equipment.
- There is also the installation of building curtain walls. It can work in narrow buildings or near buildings. Accurately lift curtain wall materials such as glass to the designated location.
- For those who work in space-constrained areas, such as underground garage construction and factory internal equipment handling, the small spider crane (mini crawler crane for sale) is an ideal choice.

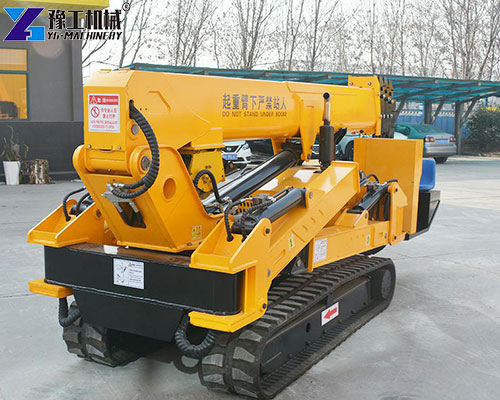

Reasons for using an electric spider crane
The small spider crane is popular for many reasons.
- It is small in size and can operate in a small space, which is an advantage that large cranes cannot match.
- The operation is simple and convenient, even novices can quickly get started.
- At the same time, the safety devices it is equipped with greatly ensure the safety of the operation.
- Moreover, its use cost is relatively low, and it does not require the high transportation and maintenance costs of large equipment.
For enterprises and individuals who pursue efficient and low-cost operations, small spider cranes are undoubtedly the best choice.

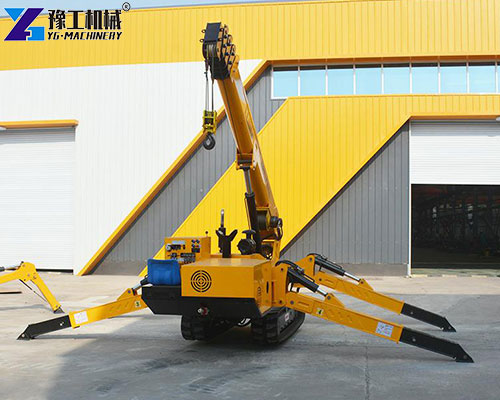

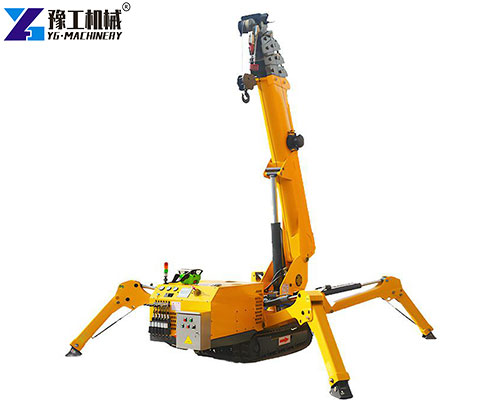

Outstanding advantages of the YG small crawler crane
Among many small spider crane manufacturers, YG stands out.
- The mini crawler crane for sale produced by YG is of high quality, made of high-quality materials, and is sturdy and durable.
- Its design is very user-friendly, and the operation is more comfortable and convenient.
- In terms of performance, it has a strong lifting capacity and high work efficiency.
- In addition, YG provides perfect after-sales service, so that users have no worries. Whether it is product quality or service, YG has demonstrated an excellent level.

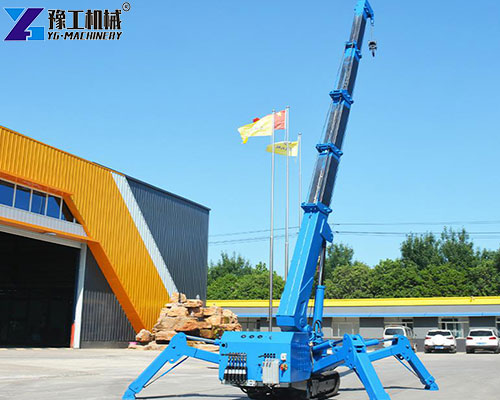

Mini crawler crane working principle
The small spider crane mainly relies on the crawler chassis to move. This chassis has strong stability and can adapt to different terrains. The extension and retraction of the telescopic arm are controlled by the hydraulic system to achieve lifting operations at different heights and distances. The outriggers are unfolded during work to increase the contact area between the equipment and the ground and ensure stability during operation. The operator can accurately control the various actions of the equipment through the remote control or the operation room to complete complex lifting tasks.
Trusted spider crane supplier-YG
If you are looking for efficient, flexible lifting equipment suitable for small spaces, then a mini crawler crane for sale is worth considering. As a high-quality mini spider crane manufacturer, YG’s products are not to be missed. So far, our spider cranes have been sold to many countries, such as Chile, Bulgaria, Qatar, Argentina, etc. Choosing YG’s mini spider crane means choosing a reliable partner for your work, making your work more efficient and safe.
