As a modern ground construction equipment, the Laser Concrete Leveling Machine is gradually changing the construction method of traditional concrete floors. This equipment combines laser technology with mechanical automation, greatly improving the flatness and construction efficiency of the ground. Specifically, the Laser Screed Machine uses the precise horizontal light emitted by the laser transmitter to guide the leveling head to perform precise operations, ensuring that each piece of concrete can meet the preset flatness requirements. During the construction process, the equipment such as the concrete delivery pump and mortar spraying machine used with it further improves the coordination and efficiency of the overall construction process.

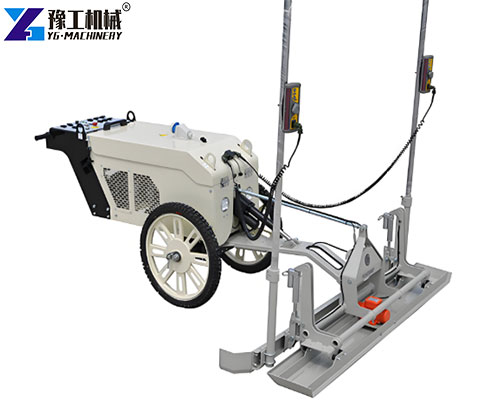

Laser screed machine Parameters
Understanding the parameters of the Laser Concrete Leveling Machine is crucial to choosing the right equipment. Common parameters include leveling width, working speed, laser system accuracy, engine power, etc.
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, step-less speed | Handle control, step-less speed | Handle control, step-less speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, step-less speed-walking | Hydraulic control | Handgrip control, step-less speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
Advantages of laser concrete leveling machine
Compared with traditional methods, the Laser Concrete Leveling Machine shows significant advantages. First of all, its extremely high flatness ensures the consistency and beauty of the ground, reducing the need for subsequent repair work. Secondly, automated operations have greatly increased construction speed, shortened construction periods, and reduced labor costs. Furthermore, the laser guidance system ensures construction accuracy, allowing seamless connection even on large areas of ground, reducing error accumulation. In addition, the equipment is easy to operate, learn, and master, which is of great benefit to improving the overall construction level of the team.
Concrete laser leveling machine Customer Feedback
- American customer: “After adopting the YG brand of concrete laser leveling machine, our construction efficiency has increased by nearly 50%, and customers have well received the ground quality. Its high efficiency and precision performance are impressive, especially in the construction of large storage facilities.”
- Hungarian customer: “In the Hungarian market, laser concrete leveling technology is still relatively new. But since the introduction of this equipment, our competitiveness has been significantly enhanced. Not only has the project cycle been shortened, but the perfect flatness achieved by the Laser Concrete Leveling Machine has also won the trust of more high-end customers.”

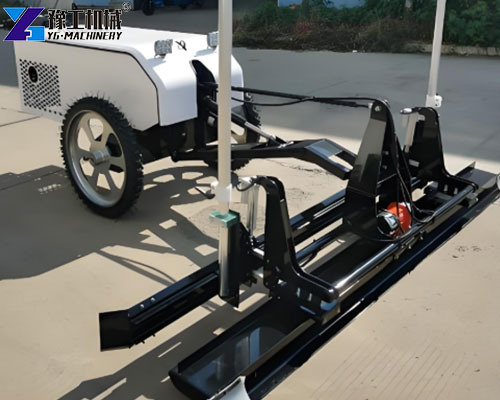

Laser screed machine from YG
As a leading global construction machinery manufacturer, YG’s Laser Screed Machine series has won wide recognition from global customers for its excellent performance, innovative design, and perfect after-sales service. YG not only focuses on technological product innovation but is also committed to providing customized solutions to meet the specific needs of different customers. Whether it is a large commercial complex, an airport runway, or an industrial plant, YG’s Concrete Laser Leveling Machine can help every project achieve the best results with efficient and accurate performance.
