A large sandblasting booth is a closed workshop or working area equipped with highly efficient sandblasting equipment. It is mainly used for surface cleaning, oxidized skin removal, rust removal, old coating removal, and other treatments for metal or non-metal workpieces. Abrasives are blasted onto the surface of the workpiece through high-pressure air to achieve a fast and even surface treatment effect. The sandblasting room not only improves the working efficiency. But also effectively reduces the abrasive splash and protects the safety and health of the operators.

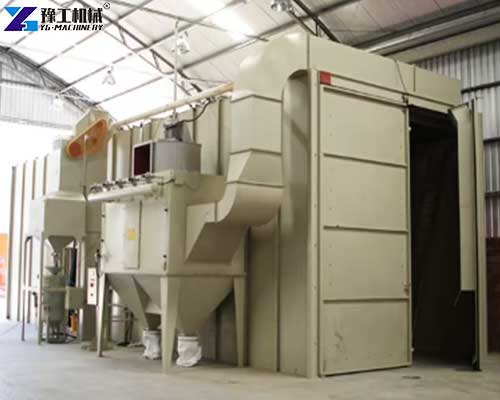

Large Sandblasting Booth Parameters
| Size of Blasting Room | Size of workpieces | Blasting Gun Qty |
| 6000×6000×5000mm | 3000×3000×2500mm | 2 |
| 6000×6000×6000mm | 3000×3000×3500mm | 2 |
| 8000×6000×5000mm | 5000×3000×2500mm | 2 |
| 8000×6000×6000mm | 5000×3000×3500mm | 2 |
| 10000×6000×6000mm | 7000×3000×3500mm | 2 |
| 15000×6000×6000mm | 12000×3000×3500mm | 2 |
| 15000×8000×6000mm | 12000×5000×3500mm | 2 |
| 18000×8000×6000mm | 15000×5000×3500mm | 4 |
| 18000×10000×8000mm | 15000×7000×5500mm | 4 |

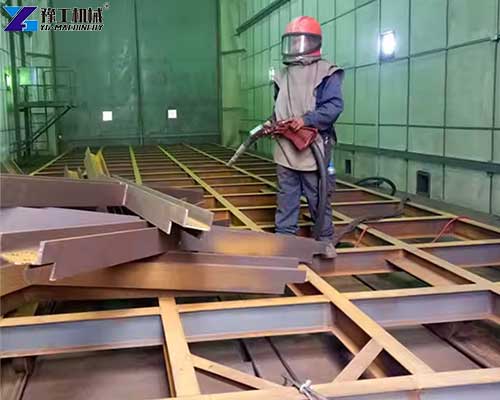

Blast Booth For Sale Application
Sand blasting room is widely used in enterprises, mainly for engineering machinery, some large workpieces, steel structures, heavy machinery, containers, rolling stock, petroleum and petrochemical, electric power, and other industries.
- In the metal manufacturing industry, a sandblasting room is used to remove oxidized skin and rust oil. And then will provide a clean and flat surface for subsequent processing and coating.
- Sandblasting rooms are also widely used in the automobile manufacturing industry. It can clean and remove stains and oxides from the surface of automobile bodies to provide adhesion.
- When renovating old buildings, a sandblasting room can be used to remove old coatings, pigments, and stains from walls for repainting.
- In shipbuilding, sandblasting rooms are used to clean and remove substances such as stains, oxides, and seaweed. And then will provide a clean, smooth surface for painting and anti-corrosion treatment.
- Cleaning and removing old coatings, pigments, and rust from hull surfaces for restoration and repainting.
- In the electrical and electronics manufacturing industry, sandblasting rooms are used to clean and remove stains and oxides from the surface of electronic products.
- In the aerospace industry, blast rooms are used to clean and remove stains, oxides, and coatings.
- In the furniture manufacturing industry, sandblast rooms can clean and refurbish furniture surfaces to provide a clean, smooth surface for repainting.

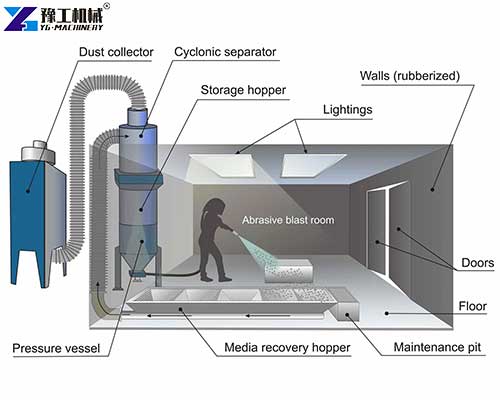

Composition of Portable Sand Blasting Booth
The large sandblasting booth mainly consists of several parts. Such as a sandblasting room body, sand blasting machine, abrasive conveying system, bucket elevator, dust collector, lighting system, electric control system, electric cart, and so on. The sandblasting room body is the workplace of the sandblasting operation. YG’s sandblasting room body adopts a 20mm square tube as the basic frame, a 25*40 square tube as the internal support, and a 75mm thick color steel sandwich panel outside. It is beautiful in appearance, convenient in installation, anticorrosive, and durable. The core layer of the color steel plate is rock wool, which is more durable.

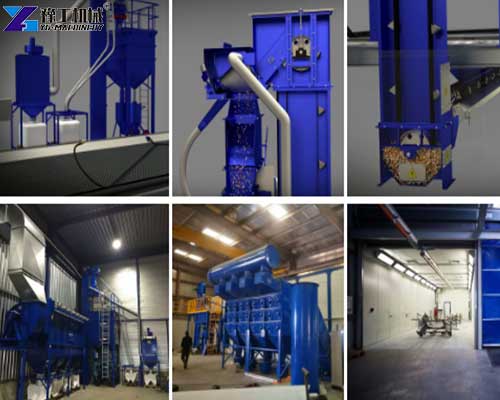

7 Characteristics of Sand Blasting Room
- When the automatic large sandblasting booth is blasting, the basic metal parts will not be damaged. And it will not change the dimensional accuracy.
- The surface of the parts is not polluted. The abrasive will not have a chemical reaction with the material of the parts.
- It can easily deal with grooves, concave, and other hard-to-reach parts. A variety of particle-size abrasives can be selected for use.
- The use of sandblasting descaling equipment processing costs are greatly reduced. Because it is work efficiency and can meet a variety of surface finishing requirements.
- Low noise: the sandblasting room adopts a sandwich-color steel plate as the chamber body of the sandblasting room. So, it can reduce the high-frequency sharp noise of 1500HZ-2000HZ during sandblasting to below 500HZ.
- Good waterproof performance can be placed in the open air. The body of the sandblasting room has its own rainproof and ventilation structure. There is no need to build another workshop, which greatly reduces the infrastructure costs.
- Beautiful appearance: adopting a color steel plate structure, the body of the sandblasting room can be shaped at one time.

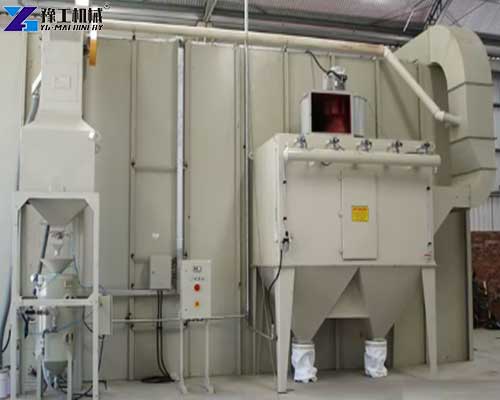

What Are the Benefits of a Shot Blast Booth?
- The first aspect is to improve the surface quality, The sandblasting room can effectively remove the dirt and oxides on the surface of the object, to improve the surface finish and quality.
- The second aspect is to enhance the adhesion of the object, the sandblasting room can form tiny depressions and bumps on the surface of the object, thus increasing the coefficient of friction and adhesion on the surface of the object and improving the adhesion of the coating.
- The third aspect is to prolong the service life of the object, by removing the oxides and corrosive substances on the surface of the object, the sandblasting room can prolong the service life of the object.
- The last aspect is to improve production efficiency, using sandblasting rooms can quickly clean and process a large number of objects, improving the production efficiency and processing speed.

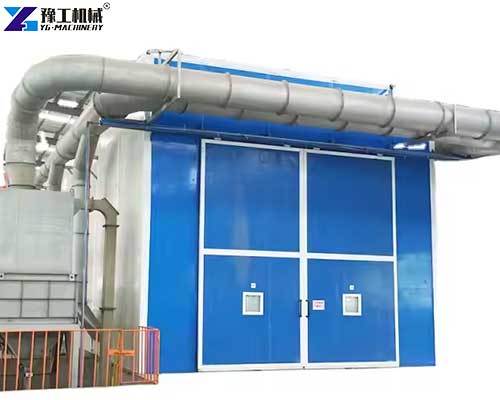

Trusted Portable Blast Booth Manufacturer-YG
As a high-quality manufacturer in the field of large sandblasting booths, YG enjoys a high reputation in the industry for its excellent technical strength, rich production experience, and strict quality control system. The company specializes in the research, development, and production of highly efficient sandblasting room equipment. It can meet the diverse needs of different customers. Its products have stable performance, easy operation, and convenient maintenance.
