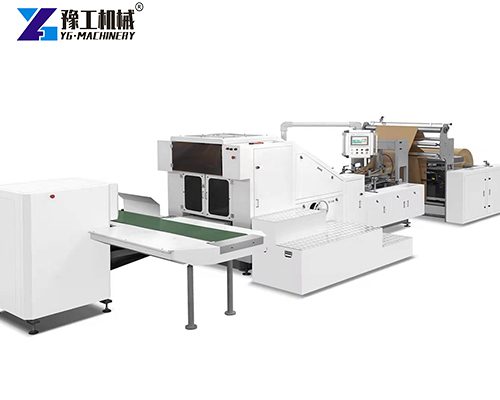

The kraft paper bag making machine is an equipment that collects, stamps, folds, and processes paper into paper bags. Paper bag-making machines can produce different types of paper bags such as ring handle bags, square bottom bags, or flat and v-bottom bags. These bags are used for merchandise packaging as well as in the food, pharmaceutical, grocery, and bakery industries. We also produce paper cup making machines, napkin-making machines, small toilet paper machines, and so on. Click the button to get a quote for a paper bag machine!
Kraft Paper Bag Making Machine Parameters
| Model | YG-330 | YG-450A | YG-450B |
| Cutting length | 270-530mm | 270-530mm | 380-760mm |
| 270-430mm (with handle) | 270-430mm (with handle) | 380-660mm (with handle) | |
| Bag width | 120-330mm | 200-450mm | 220-450mm |
| 200-330mm(with handle) | 240-450mm(with handle) | 240-450mm(with handle) | |
| Bottom width | 60-180mm | 80-180mm | 80-200mm |
| Paper Thickness | 60-150g/M2 | 80-150g/M2 | 80-150g/M2 |
| 80-150g/M2(with handle) | 80-150g/M2(with handle) | 80-150g/M2(with handle) | |
| Paper roll width | 380-1050mm | 590-1300mn | 630-1350mm |
| 620-1050mm(with handle) | 710-1300mm(with handle) | 710-1350mm(with handle) | |
| Roll paper diameter | 1300mm | 1300mm | 1300mm |
| Paper core | 76mm | 76mm | 76mm |
| Patch length | 152mm | 152/190mm | 152/190mm |
| patch width | 45-50mm | 45-50mm | 45-50mm |
| Handle distance | 75mm | 75/95mm | 75/95mm |
Paper Bag Machine For Sale Working Principle
The kraft paper bag making machine rolls string and paper rolls into tote bags, which are sent to the unit through a conveyor system. Then the original color or printed paper rolls will be pre-pointed off the paper rope position, and pasted with the positional adhesive. And automatically pasted into the tote bag. Then the main machine will stick the paper and the bag with the edge glue, cut, and crease to complete the bag-making.

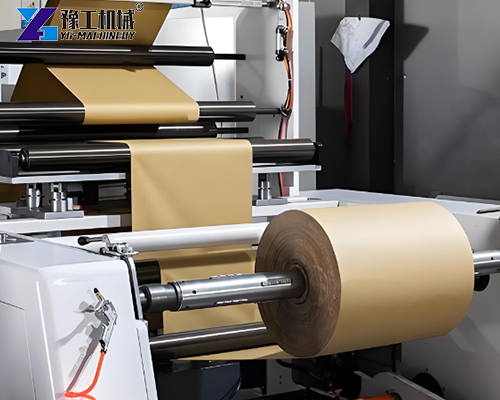

Carry Bag Manufacturer Machine Production Process
From roll paper to laminating, folding, forming, cutting bag, gluing, folding bottom, gluing bottom, finished bag output in one time. This kraft paper bag making machine is more convenient to operate, more efficient, and more stable. The carry bag manufacturer machine is suitable for producing different kinds of paper shopping bags, leisure food bags, bread bags, dried fruit bags, and so on environmentally friendly packaging paper bags.

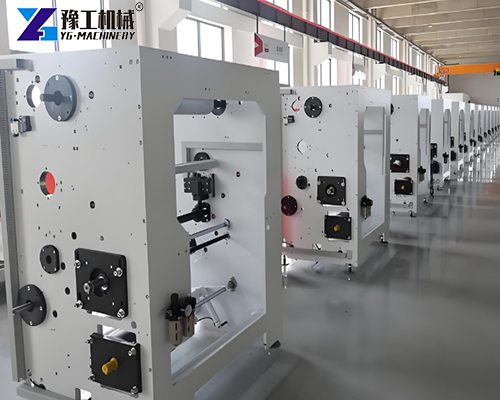

5 Features Of Square Bottom Paper Bag Machine
- The square bottom paper bag machine can automatically track the package printing, and the finished printing is very standard and accurate.
- The small paper bag making machine can automatically adjust the parts, save time and labor, and reduce the failure rate.
- With the man-machine interface, easy to use, and alarm and operation status can be displayed on the screen in time.
- The equipment has high efficient production capacity, and one-time synchronization to complete the production of square-bottom paper bags.
- The whole kraft paper bag making machine has a high degree of automation, easy maintenance, and simple operation.

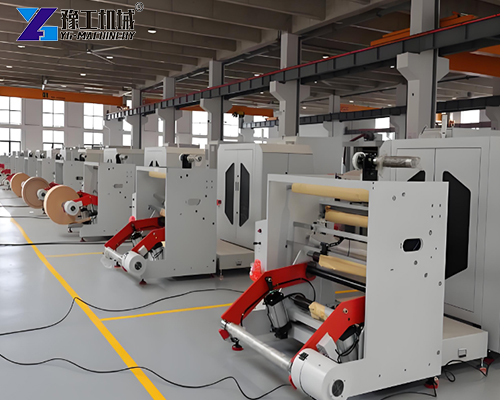

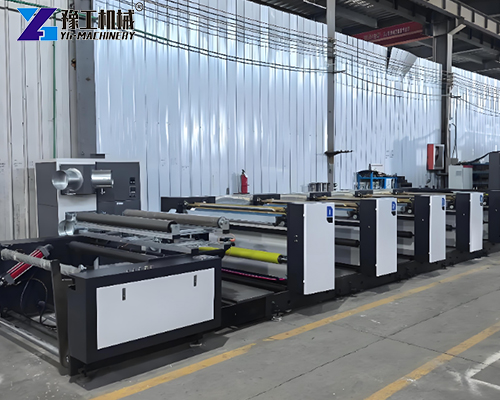

Small Paper Bag Making Machine Provided By YG
Kraft paper bag making machine supplied by YG is the ideal equipment for making food bags, shopping bags, and other paper bags. We use advanced design concepts and components is a high degree of automation of the paper bag machine. For example, PLC system control, touch screen, and servo motor control the bag length to produce paper bags of different sizes. You can adjust the production of paper bags to meet the demand. We will provide thorough after-sales service and technical support. Contact us for a competitive machine price!
