An industrial flake ice machine is a kind of equipment suitable for large-scale ice-making needs, which can quickly produce thin and uniform flake ice. It uses advanced refrigeration technology to condense liquid water into ice flakes through an evaporator and then cut it into standard sizes through a scraper. We usually use this equipment in food processing, cold chain logistics, medical storage, and other fields. It is an indispensable refrigeration tool in commercial operations. Click to get your flake ice machine quote!
Industrial flake ice machine parameters
| Model | 5T fresh water flake ice maker |
| Ice output | 5000kg/24h |
| Refrigeration capacity | 37.2KW |
| Evaporating temp | -20℃ |
| Condensing temp | 40℃ |
| Standard ambient temp | 25℃ |
| Standard water temp | 20℃ |
| Installation power | 22.05KW |
| Compressor input power | 20.2KW |
| Reducer power | 0.37 KW |
| Water pump power | 0.12KW |
| Air fan power | 1.36KW |
| Power input | 3P-380V-50Hz |
| Pressure | 0.1Mpa－0.5Mpa |
| Refrigerant | R404A |
| Ice temp | -5℃ |
| Ice thickness | 1.5mm-2.2mm |
| Water consumption（m3/h） | 0.2 |
| Water pipe size | 3/4″ |
| Net weight | 1000kg |
| Dimension（L*W*H）mm | 2000mm*1600mm*1650mm |
Flake ice maker for sale applications
- Fishery preservation: Fishing boats or aquatic product processing plants use industrial flake ice machines (such as flake ice machines for fish) to quickly cover seafood with ice and extend the shelf life.
- Catering industry: Supermarkets and restaurants use flake ice to make cold drinks and seafood counters to display and improve the appearance of food.
- Industrial cooling: Chemical plants and laboratories use flake ice to adjust the temperature of equipment to ensure production safety.

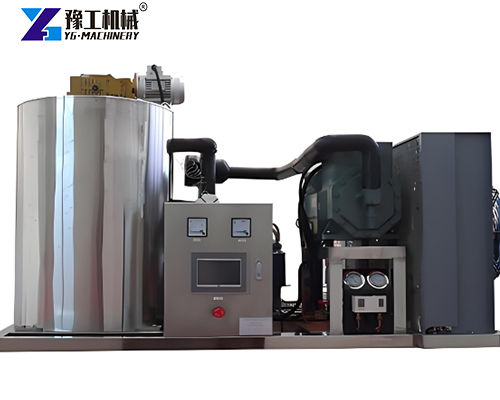

Flake ice machine for fish structure
As a structural manufacturer of flake ice makers for sale, YG focuses on the research and development of core components. Its equipment mainly consists of three parts: evaporator, ice scraping system, and refrigeration unit:
- Evaporator: using high-efficiency heat exchange material to ensure rapid freezing;
- Ice scraping system: precision blade design, even ice cutting without sticking;
- Refrigeration unit: equipped with brand compressor, energy-saving and durable.
- YG structural parts are made of food-grade stainless steel, which is corrosion-resistant and easy to clean, and meets hygiene standards.
Why choose a commercial flake ice maker?
- Efficient ice production: 24-hour uninterrupted work, daily output of several tons, to meet large-scale demand.
- Energy saving and power saving: An intelligent temperature control system reduces energy waste and lowers operating costs.
- Flexible installation: Modular design supports customization and can be used indoors and outdoors.
- Durable and reliable: YG-made components have been rigorously tested, with a low failure rate and long life.

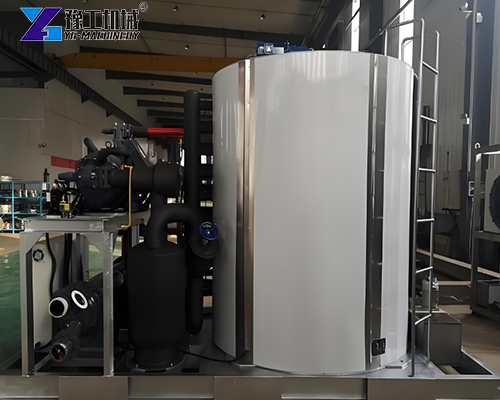

Industrial flake ice machine factory-YG
As a professional structural manufacturer, YG provides customized solutions for industrial flake ice machines. From design to production, we strictly control every link to ensure stable equipment performance. Whether it is a commercial flake ice maker or a special scene demand, YG can respond quickly and provide cost-effective products.
Act now!
If you are looking for an efficient and durable flake ice machine for fish or need a quote for a flake ice maker for sale, please contact the YG team. We will recommend the most suitable model according to your needs to help your business operate efficiently!
