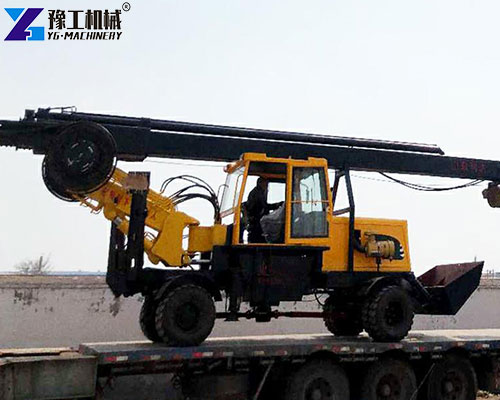

The Hydraulic Rotary Rig is a pile drilling equipment that drives the drill rod to rotate and cut the strata through hydraulic power. It is mainly used for large-diameter, deep-hole drilling operations such as building foundations and bridge pile foundations. Its core components include the drill rod, power head, and hydraulic system of the Rotary Piling Rig, which can adapt to various geological conditions such as clay, sandstone, rock formations, etc. Compared with impact drills, this type of equipment has the characteristics of high efficiency, low pollution, and excellent hole quality and is widely used in modern infrastructure projects.
Hydraulic rotary rig parameters
| Dimensions (mm) | 7900*2260*3100 |
| Vehicle mass (kg) | 8000 |
| Wheelbase (mm) | 3150 |
| Wheelbase (mm) | Front 1400 After 1060 |
| Drilling depth (m) | 13 |
| Drilling diameter (mm) | 600-1600 |
| Rotation angle | 180 degree |
| Walking speed (km/h) | 50 |
| Gear pump model | CBJT2080 |
| Hydraulic system working pressure (Mpa) | 20-25 |
| Hydraulic system displacement (ml/r) | 80 |
| engine model | 4108 |
| Engine power (kW) | 88 |

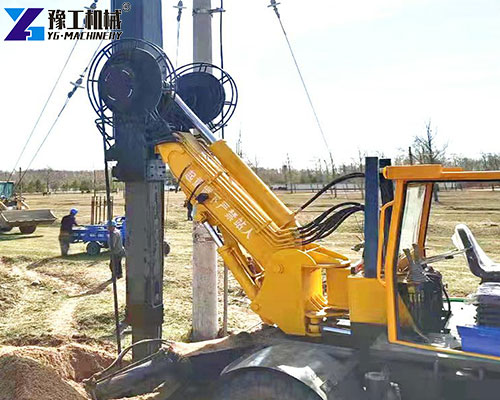

Rotary piling rig application

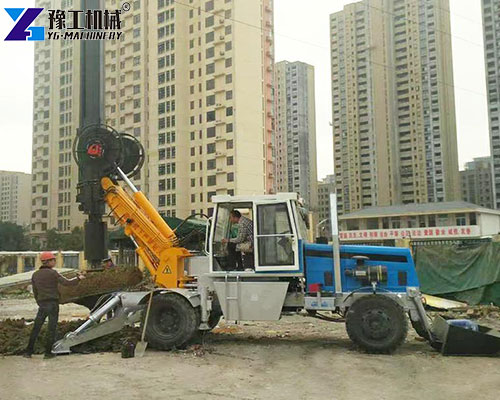

- Building foundation: large diameter cast-in-place pile construction of high-rise buildings and factory buildings;
- Bridge engineering: ultra-deep pile foundation drilling of cross-river and cross-sea bridges (using Rotary Piling Rig rotary drilling rig);
- Wind power construction: rock formation drilling for wind turbine foundation;
- Municipal engineering: subway station retaining piles and underground continuous wall construction;
- Mining exploration: geological sampling and shaft pre-drilling.
Rotary drilling rig for sale working principle
- Power transmission: The hydraulic system drives the power head to rotate, driving the drill rod and drill bit to cut the formation;
- Drilling control: Apply vertical pressure to the drill bit through the pressure device to improve cutting efficiency;
- Muck discharge: The muck cut by the drill bit is discharged out of the hole with the spiral drill rod or pump suction system.
- Hole wall protection: Use mud wall protection or casing follow-up to prevent hole wall collapse;
- Intelligent adjustment: Some Hydraulic Rotary Rigs are equipped with a formation adaptive system to adjust the speed and pressure in real time.

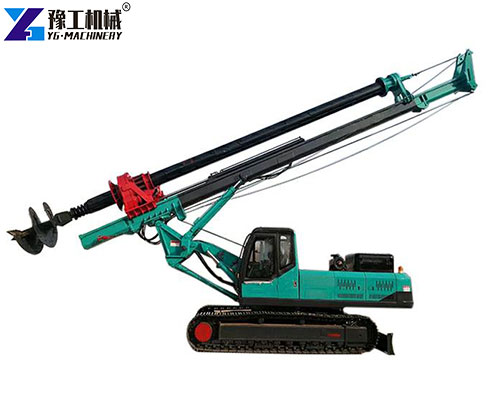

Advantages of hydraulic rotary rig
- High efficiency and energy saving: the drilling depth can reach 50 meters per day, and the energy consumption is 40% lower than that of an impact drill;
- Environmental protection and low noise: construction noise <75dB, dust pollution is reduced by 80%;
- Accurate hole formation: verticality error ≤1%, aperture deviation ≤5cm (Rotary Drilling Rig for Sale);
- Strong adaptability: various strata can be processed by replacing drill bits (such as cone drills and spiral drills);
- Intelligent control: one-button operation on the touch screen interface, supporting remote fault diagnosis.

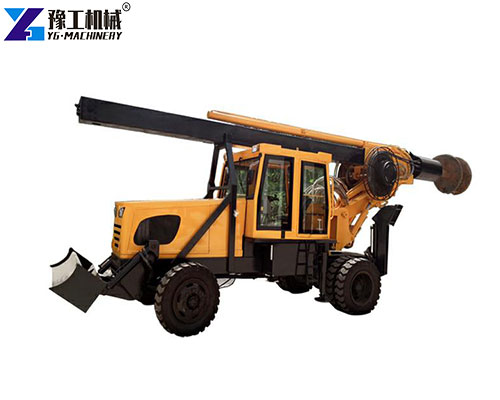

Rotary drilling machine price
As a source manufacturer in the field of rotary drilling rigs, YG adheres to the factory direct supply model and provides customers with cost-effective factory direct supply prices. Our equipment has passed international certifications such as ISO and CE, and the core components are made of imported materials from Germany and Japan to ensure drilling accuracy and durability. At present, the products have been sold to more than 50 countries around the world. Whether you need a small or medium-sized entry-level model or a customized solution for ultra-deep holes, YG can provide a reasonable price range and full-cycle service support. Choose the direct sales source; both quality and cost are excellent – consult now to get an exclusive quote!

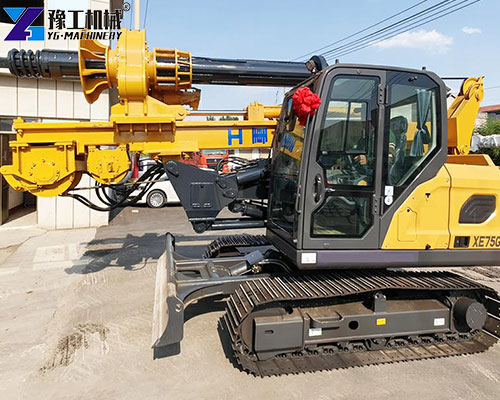

YG provides high-quality rotary piling rig
As a global leader in pile-driving machinery, YG provides a full range of solutions:
- Full range coverage: from 15-meter micro-machines to 120-meter ultra-deep hole models;
- Technological innovation: Integrate AI geological identification system in Hydraulic Rotary Rig to automatically match drilling parameters;
- Successful case: Provided 30 equipment for a cross-sea bridge project in Southeast Asia, with a monthly drilling volume of more than 5,000 meters per machine.
