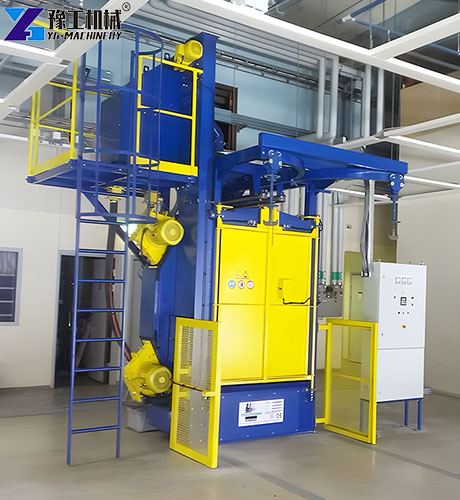

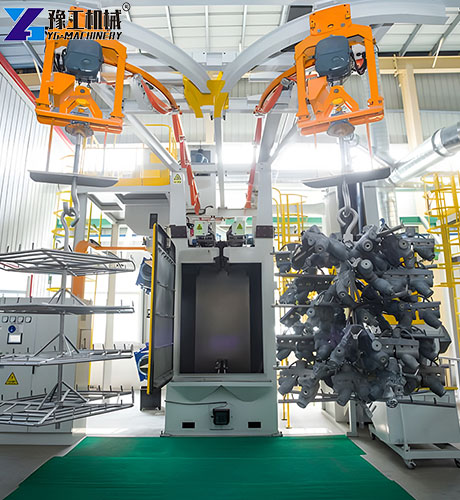

The hanger type shot blasting machine uses a hanging conveying system to hang the workpiece and send it into the shot blasting room. In the shot blasting room, the high-speed rotating shot blaster throws the projectile onto the surface of the workpiece, removes impurities such as scale and rust on the surface of the workpiece, and achieves surface cleaning and strengthening. Compared with other shot blasting equipment, such as spinner hanger blast machine, there are certain similarities in function and structure, but the equipment we are discussing can adapt to more complex shapes of workpieces with a more flexible hanging conveying design, and has obvious advantages in the processing of large and special-shaped workpieces.
Hanger type shot blasting machine parameters
| Item | YG376 | YG376B | YG378 | YG3710 | YG3720 | YG3730 | YG3750 | YG37100 |
| Maximum weight of cleaning(KG) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Clean the workpiece size(mm) | 600*1200 | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2300 | 1800*2500 | 3000*3000 |
| Shot blasting amount (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Lift (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Separator separation amount (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Power (KW) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
| Ventilation(m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |

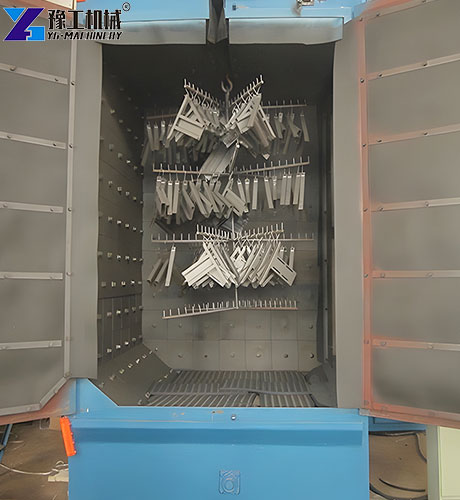

Spinner hanger blast machine application
- Automobile manufacturing industry: used for surface treatment of large parts such as automobile bodies, frames, and wheels to prepare for subsequent coating processes, improve coating adhesion, and extend the service life of the car.
- Engineering machinery industry: surface cleaning and strengthening of structural parts of large machinery such as excavators and loaders to enhance the wear resistance and fatigue resistance of parts.
- Shipbuilding industry: Processes large steel structures such as ship decks and cabins, removes rust and old paint on the surface, and improves the corrosion resistance of ships.

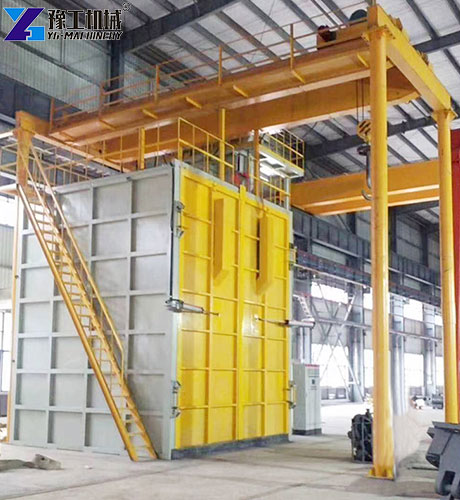

Why use a shot blasting booth?
- Efficient processing: The hanging conveying system enables the workpiece to run continuously in the shot blasting room, achieving uninterrupted shot blasting treatment, which greatly improves production efficiency.
- Precision operation: Through the reasonable arrangement of the shot blasting machine, each part of the workpiece can be accurately shot blasted to ensure uniform and consistent treatment effects.
- Space saving: The equipment adopts a three-dimensional hanging conveying design, which occupies a smaller area than other types of shot blasting machines and is suitable for production workshops with limited space.
Customer feedback on hanger type shot blasting machine
- Project background: A certain automobile manufacturing company, with the expansion of its business scale, has higher requirements for the efficiency and quality of surface treatment of automobile parts.
- Usage: After introducing YG’s hanger-type shot blasting machine, the company’s originally complex surface treatment process has been simplified. The equipment not only improves the surface quality of parts and components, greatly improves production efficiency, but also improves the workshop environment due to the efficient dust removal system.
- The person in charge of the customer company gave feedback: “YG’s hanging shot blasting machine fully meets our production needs. The equipment is stable and reliable, and the after-sales service responds promptly, which solves a lot of worries for us.”
Trusted shot blasting machine supplier- YG
As a leader in the industry, YG has rich experience in the research and development and production of hanger type shot blasting machines. From the early stage of scheme design to equipment manufacturing, installation, and commissioning to the later after-sales service, YG provides a one-stop solution. With a strict quality control system, YG ensures that each equipment meets the high standards of the industry and has won the trust of many customers.
