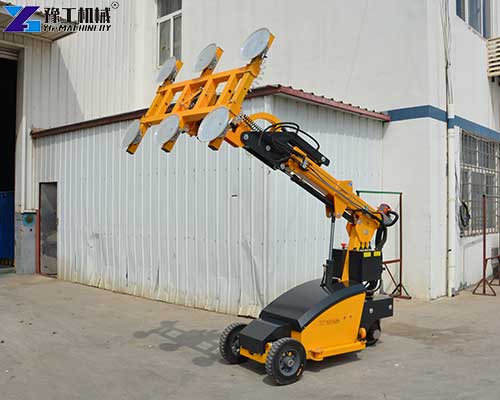

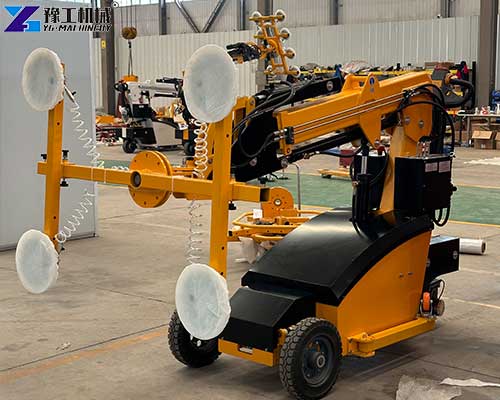

Glass suction cup machine, such as glass vacuum lifters for sale, is a kind of equipment specially used for handling glass. It uses the principle of vacuum adsorption to firmly suck the surface of the glass for easy handling. This equipment is easy to operate, greatly reducing the risk of manual handling of glass and reducing the glass breakage rate.
Glass lifter machine parameters
Different models of glass suction cup machines have different parameters. Generally speaking, their load capacity ranges from several hundred kilograms to several tons.
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||

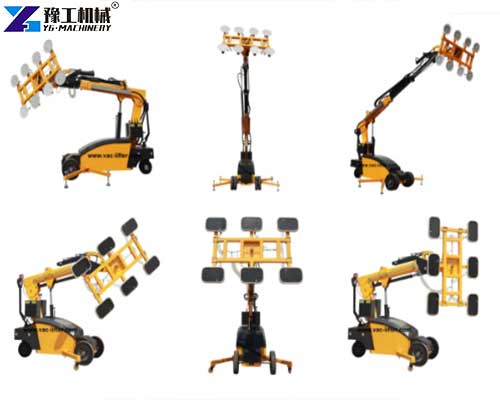

| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||
Application of glass vacuum lifters for sale

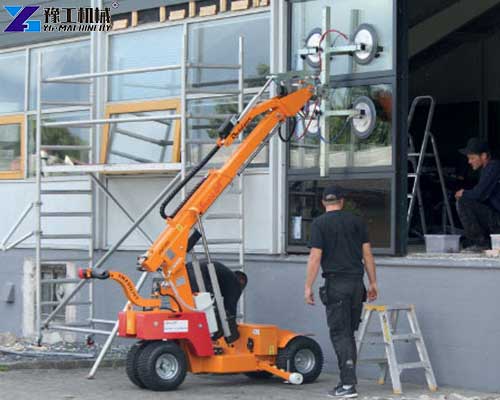

- Construction industry: Used for the replacement of window glass in high-rise buildings, the new glass can be safely and conveniently lifted to the high-altitude operation point to reduce the risk of high-altitude operation.

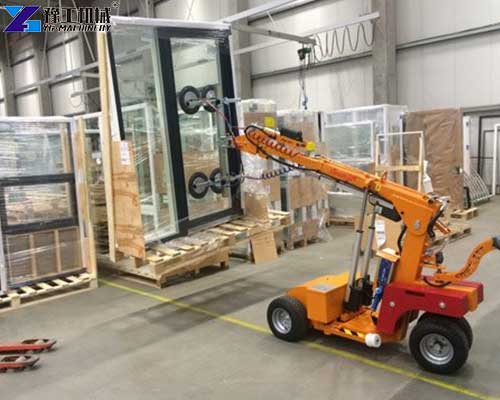

- Glass processing industry: The stacking of glass in the glass processing plant, in the past, manual stacking was not only slow but also easy to cause glass breakage due to collision. Using a glass suction cup machine, the glass can be stacked smoothly and orderly, reducing the glass breakage rate.
- Home decoration industry: The glass suction cup machine can easily handle the handling of large interior decorative glass, such as living room partition glass, bathroom glass door, etc.

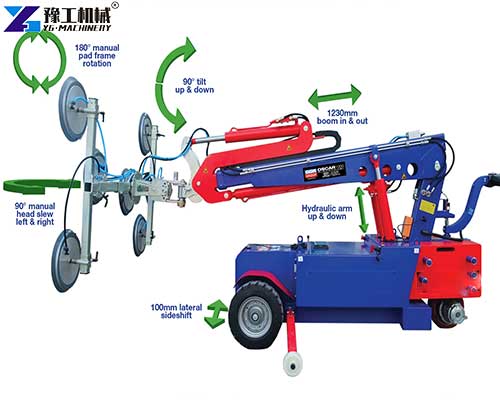

Glass lifting machine structure
The glass suction cup machine is mainly composed of the vacuum system, suction cup, operating handle, and bracket. The vacuum system is responsible for generating negative pressure so that the suction cup can be tightly attached to the glass. The suction cup is usually made of soft and non-slip material, which can protect the glass surface and enhance the adsorption force. The operating handle is convenient for workers to control the moving direction and angle of the equipment, and the bracket plays the role of stable support.
Advantages of glass suction cup machine
There are many advantages to using a glass suction cup machine.
- First, it improves work efficiency. Compared with manual handling, it can complete the handling task of a large amount of glass in a shorter time.
- Secondly, it ensures the safety of workers and reduces the risk of injury that may be caused by handling glass. 3. Furthermore, it reduces the breakage of glass and reduces the cost loss of enterprises.
- Moreover, the equipment is highly adjustable and can adapt to the handling needs of glass of different sizes and weights.

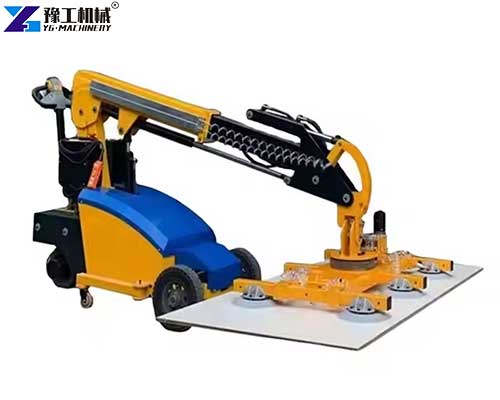

YG: Reliable glass suction cup machine supplier

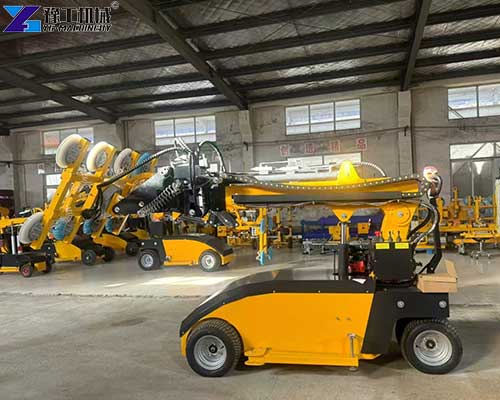

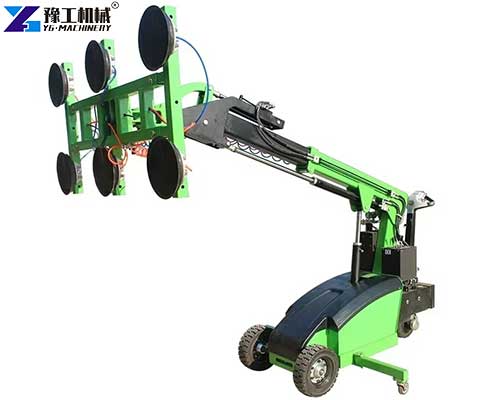

As a professional glass suction cup machine supplier, YG provides a variety of models of glass lifter machines. Their products are reliable, have undergone rigorous quality testing, and have stable performance. YG also has a professional after-sales service team that can promptly solve problems encountered by customers during use. Whether it is product consultation or technical support, they can give customers satisfactory answers. Choosing YG’s glass suction cup machine means choosing an efficient and safe glass handling solution.
