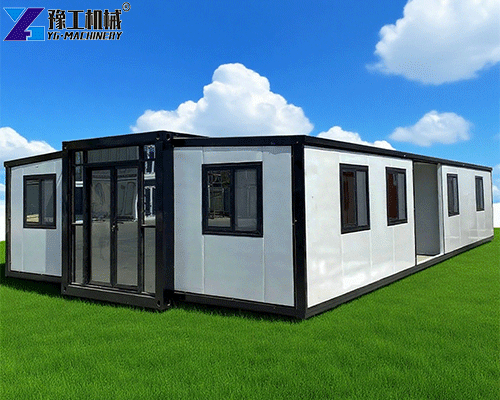

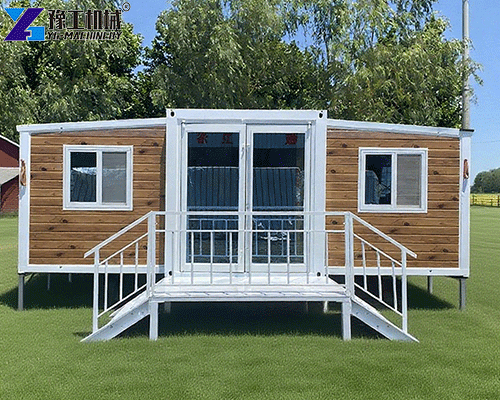

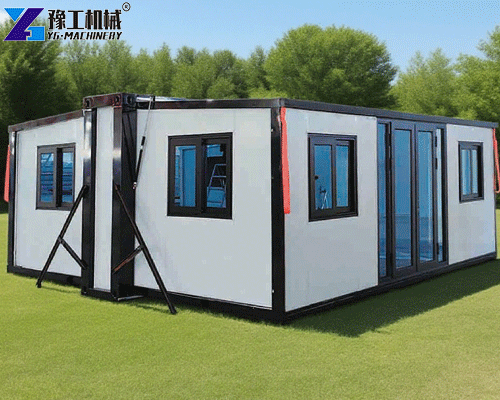

An expanding container homes are a form of housing that can be folded and unfolded like origami. It can be quickly installed and folded through the folding drive mechanism, which saves time and labor and is simple and efficient in operation. The design concept of the folding house stems from the pursuit of efficient use of space and is particularly suitable for temporary accommodation, emergency rescue, outdoor activities, and other scenarios. This type of house usually consists of a series of movable structures that can quickly unfold into a complete living space when needed. Click on the button to get detailed information about the Folding House!
Expanding Container Homes Parameters
| 20FT Basic Characteristics | External dimension (mm) | W6320*L5900*H2480(Side 2270) |
| Internal dimension (mm) | W6160*L5560*H2240(Side 2150) | |
| Folded state (mm) | W2200*L5900*H2480 | |
| Total mass (kg) | 2500 | |
| 30FT Basic Characteristics | External dimension (mm) | W6360*L9000*H2480(Side 2180) |
| Internal dimension (mm) | W6200*L8660*H2240(Side 2060) | |
| Folded state (mm) | W2200*L9000*H2480 | |
| Total mass (kg) | 3750 | |
| 40FT Basic Characteristics | External dimension (mm) | W6240*L11800*H2480(Side2180) |
| Internal dimension (mm) | W6080*L11540*H2200(Side2060) | |
| Folded state (mm) | W2200*L11800*H2480 | |
| Total mass (kg) | 4400 | |
| Smaller Fold Size | External dimension (mm) | W4820*L5900*H2480(Side2270) |
| Internal dimension (mm) | W4660*L5560*H2240(Side2150) | |
| Folded state (mm) | W700*L5900*H2480 | |
| Total mass (kg) | 1850 |
Expandable Modular House Customizable Options
Folding houses come with various customizable options, including doors, windows, flooring, siding, exterior trim, and more. Users can tell us the style they want according to their actual needs. YG also supports the customization of different styles of folding houses, in addition to the regular folding house style, we also support the addition of roofs and terraces. In addition, we can also make multi-story folding houses, which can be used to build villas, pubs, restaurants, and other applications.
Electrical Plumbing Systems for Portable Expandable Homes
The electrical piping system of YG’s expanding container homes usually adopts the modern method of laying electromechanical and electrical piping. After the folding house is completed, the internal piping is ready for use. We support customized sockets so that customers from different countries can use the equipment inside the folding room.
The Installation Process of Portable Expandable Homes
- First of all, the main frame of the folding room needs to be lifted by a crane and unfolded smoothly. During this process, special care should be taken to avoid any collision that could damage the box.
- Next, support bars are placed in the center of the box to ensure the stability and strength of the box.
- Then, start mounting the walls by pushing one wall out of the way and tightening it with fastening screws. Then open and fasten the rest of the walls.
- Finally, complete the installation to carry out a comprehensive inspection and adjustment to ensure the stability and normal use of the folding room.
6 Advantages of Folding Room
- Quick assembly. 10 minutes to install. The folding house is very lightweight, the whole house is installed without any effort.
- Safe and durable. The service life is more than 15-20 years, earthquake resistance reaches 8 degrees, and wind resistance reaches 11 degrees.
- The interior of the folding house is fully equipped. All bathrooms, kitchens, electricity, plumbing, and heating are pre-installed in our factory.
- The folding house has a lot of optional areas. There are different sizes of folding rooms, customers can choose according to their needs. We will also recommend according to the needs and budget.
- The walls and roof are made of high-quality materials. It can be well insulated against heat, wind, and rain.
- Save transportation costs. Folded up and loaded in a container, a 1 * 40HC container can load 2 units.
Factors Affecting the Price of Portable Expandable Homes
The price of an expanding container home is affected by a variety of factors, including size, material, design style, and function.
- In general, the price of a small-scale folding house usually ranges from tens of thousands of dollars. Larger folding houses cost in the tens to hundreds of thousands of dollars.
- The choice of materials also affects the price, e.g. aluminum alloy and composite materials are usually more expensive than steel structures.
- The complexity of design styles and features can also add to the cost. For example, folding houses with additional amenities such as solar panels and air conditioning systems will be more expensive.
- In addition, the need for customization will also affect the price, as customization usually requires more design and manufacturing work.
Expanding Container Homes from YG
Folding houses are a new form of housing. It is very space-saving, quick to install, and has good heat insulation, sound insulation, waterproofing, and other properties. With the advancement of technology and the development of the market, folding houses will realize a wider application in many fields, providing people with a more convenient and comfortable living experience. Up to now, our folding house has been sold to the United States, Canada, Australia, Israel, Puerto Rico, Denmark, Czech Republic, Spain, Portugal, Germany, Ireland and many other countries. We also provide concrete pumps, GRC sprayers, polyurethane sprayers, wall plasterers, mortar sprayers, and other related equipment. Tell us what you need, and we give you a folding room at factory price!
