The excavator magnet attachment launched by YG is a revolutionary device designed for metal recycling, waste disposal, and other scenarios. This product quickly converts the excavator into an efficient magnetic handling tool by integrating the hydraulic magnet for excavator technology. Its core principle is to use the hydraulic system to drive a powerful electromagnet, which can absorb materials such as steel plates, scrap iron, metal debris weighing 2-8 tons, and supports 360° rotation control, which is suitable for a variety of operating environments such as ports, demolition sites, and waste recycling stations. Compared with traditional mechanical grabs, magnetic attachments can complete the grab without contact, greatly reducing metal loss, and become an intelligent solution in the field of modern engineering.
Excavator magnet attachment parameters
| Item/Model | Unit | YGML02 | YGML04 | YGML06 | YGML08 | YGML10 | YGML14 | YGML20 |
| Suitable Excavator | ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
| Weight | kg | 1400 | 1500 | 1890 | 2000 | 2200 | 2500 | 2800 |
| Power | kW | 5 | 8 | 8 | 10 | 10 | 15 | 15 |
| Outer Diameter | mm | 700 | 800 | 900 | 1100 | 1200 | 1300 | 1400 |
| Working Flow | lpm | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Working Pressure | bar | 170 | 180 | 190 | 200 | 210 | 250 | 250 |

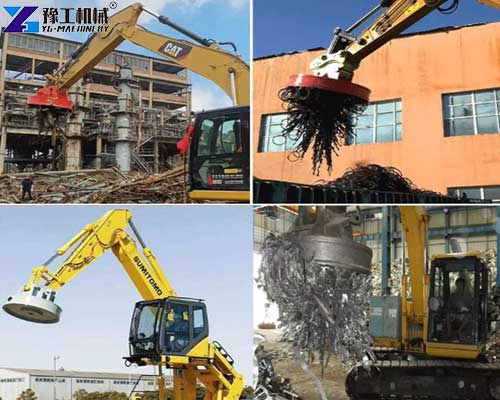

Hydraulic magnet for excavator applications
- Metal recycling: Quickly sorting scrap steel from mixed garbage, increasing single-time operation efficiency by 60%;
- Port loading and unloading: Efficiently transporting metal goods such as steel plates and container corners to avoid damage to the hoist;
- Building demolition: Safely remove steel structures in concrete to reduce dust pollution;
- Disaster relief: Clean up metal obstacles in the ruins through the excavator magnet attachment;
- Car dismantling: Accurately extracting the metal frame of the car body and cooperating with the hydraulic magnet for the excavator to achieve assembly line operation.
- A recycling company in the UAE reported: “After using YG equipment, the purity of metal sorting increased from 75% to 98%, and the labor cost decreased by 40%.”

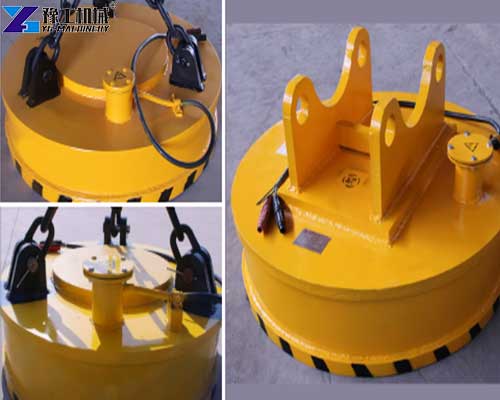

Advantages of an excavator magnet for sale
- Strong magnetic performance: Adopting NdFeB permanent magnet + electromagnetic enhancement technology, the magnetic strength reaches 23,000 Gauss;
- Intelligent control: The wireless remote control operation distance is up to 50 meters, and the adsorption-release cycle program can be preset;
- Fast switching: The universal quick-change interface is compatible with 95% of brand excavators, and the replacement time is less than 15 minutes.
- Energy saving and environmental protection: The power consumption in standby state is only 5% of that in running state, and it has passed the EU RoHS certification;
- Durable design: Shockproof shell and multi-layer insulation coating, the average failure-free time exceeds 10,000 hours.
These features make the excavator magnet attachment an efficiency multiplier in the metal processing industry.

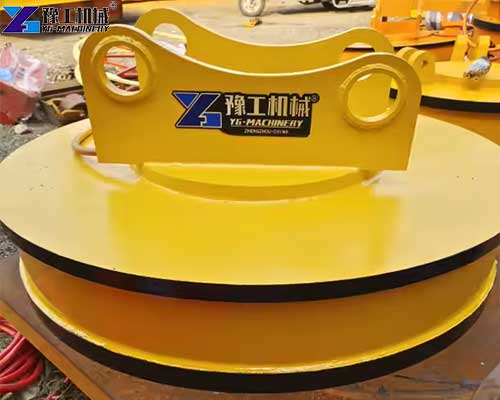

Magnet excavator from YG
As an industry leader, YG provides full-service support:
- Customized development: Adjust the magnetic force range, equipment weight, and rotation angle according to customer needs;
- Cost optimization: Compared with traditional electromagnets, the energy consumption is reduced by 30%, and the comprehensive use cost is saved by more than 250,000 yuan in three years;
- Successful case: After a port in Qatar adopted a YG hydraulic magnet for an excavator, the annual processing volume of metal cargo exceeded 500,000 tons. At present, YG magnetic attachments have been sold to more than 40 countries, and the equipment repurchase rate has reached 82%, continuing to lead the industry’s technological innovation.
