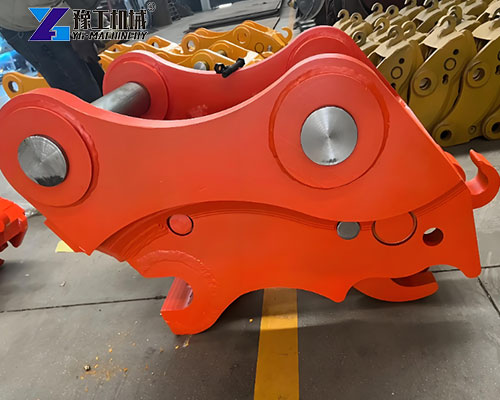

In modern engineering construction, excavators are not only core equipment, but also the diversity and quick replacement capabilities of their accessories are crucial. Excavator Hydraulic Quick Couplers, as key components connecting excavators with various accessories (such as breakers, grabs, buckets, etc.), are increasingly becoming an important tool for improving construction efficiency and flexibility. As a leader in the industry, YG Company focuses on providing high-performance and high-reliability Excavator Hydraulic Quick Couplers to help customers navigate complex and changing construction environments.
Excavator hydraulic quick couplers parameters

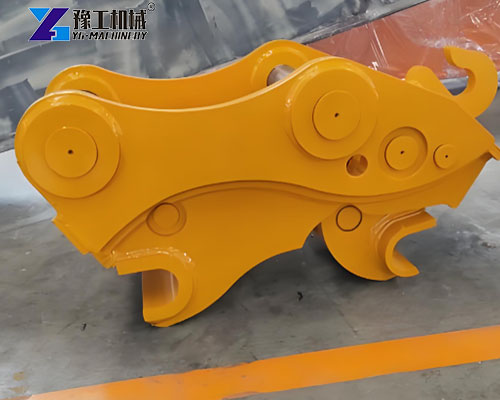

YG’s Excavator Couplers series covers a wide range of parameters to meet the needs of excavators of different models and tonnages. In particular, our Excavator Bucket Quick Coupler adopts a reinforced structural design with stronger load-bearing capacity and longer service life.
Item/Model | Unit | YGMINI | YG45 | YG50/55 | YG60/65 | YG70/80 | YG90 | YG100/110 |
Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
Weight | kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 |
Length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1473 |
Height | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Pin-to-Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
Top-to-Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
Working Pressure | bar | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
Working Flow | Ipm | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Applications of excavator couplers
YG’s Hydraulic Quick Hitch for Sale is widely used in various engineering construction scenarios.
- In earthwork projects, the bucket and breaker can be quickly replaced to improve the efficiency of excavation and crushing;
- In demolition operations, it can be easily handled with shears or grabs.;
- In material handling, efficient and accurate material loading and unloading can be achieved by quickly switching between different attachments.
- Whether it is infrastructure construction, mining, or urban transformation, YG’s hydraulic quick hook is an ideal choice for improving construction efficiency.
Types of excavator bucket quick coupler
YG provides a wide variety of Excavator Hydraulic Quick Couplers to meet the needs of different customers. According to the locking method, it can be divided into two categories: mechanical locking type and hydraulic locking type.
- Mechanical locking type, such as manual quick coupler for excavator, is easy to operate and low in cost, suitable for occasions with limited budget or low working intensity;
- The hydraulic locking type, with higher safety and stability, has become the first choice for large-scale projects and high-intensity operations.
- In addition, according to the type of attachment interface, there are multiple options, such as ISO standard and SAE standard, to ensure wide compatibility with mainstream excavators and attachments around the world.

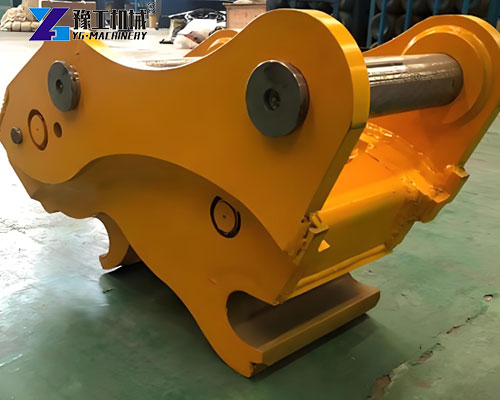

Advantages of Excavator Hydraulic Quick Couplers
YG’s Excavator Hydraulic Quick Couplers have won wide recognition in the market for their excellent performance.
- Quickly replace attachments, save time, and improve construction efficiency;
- Hydraulic locking mechanism ensures safety and stability during operation;
- Strong compatibility, suitable for excavators and attachments of various brands and models;
- Strong durability, made of high-strength materials, extended service life;
- Easy maintenance, reducing long-term operating costs.

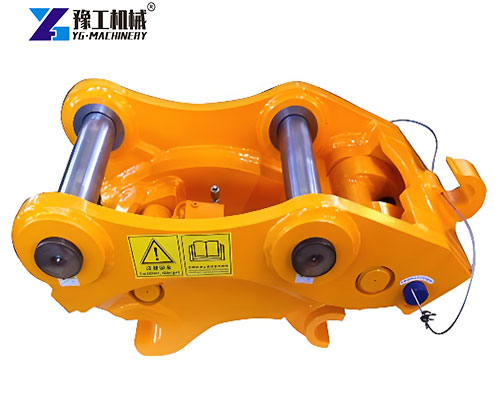

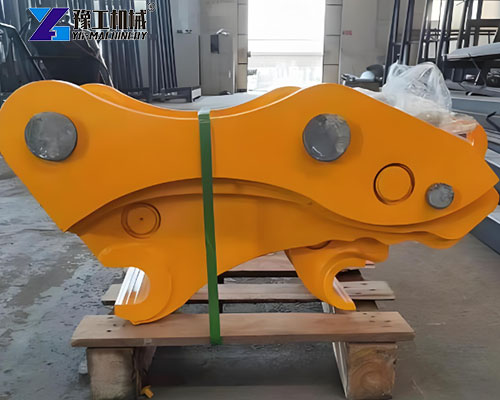

Hydraulic quick hitch for sale- YG manufacturer
As a leader in the field of excavator hydraulic quick couplers, YG has always been committed to technological innovation and quality improvement. We have advanced production equipment and a strict quality control system to ensure that each Excavator Hydraulic Quick Coupler can meet or even exceed industry standards. At the same time, we provide comprehensive pre-sales consultation and after-sales support, including on-site installation guidance, regular maintenance and maintenance recommendations, etc., to ensure that customers receive the most considerate service during use. Choosing YG means choosing a reliable and efficient partner.
