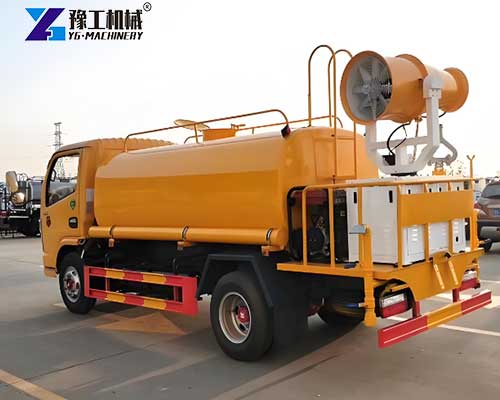

The dust control water truck is a multi-functional environmental protection vehicle. It has the functions of road surface washing, sprinkling dust reduction, and dust suppression. Mainly used for spraying inhibition of roads, squares, parks, demolition and blasting of buildings, powder dumps, open-pit mines, and other sites, thereby reducing air pollution. The vehicle contains a large volume of water tanks and generator sets, to ensure long time spraying dust reduction. It can also be rotated for rotary spraying. Click the button below to get a free quote!
Dust Control Water Truck Parameters
| Water tank volume | 8m³ 12m³ 16m³ 20m³ |
| Dimension(m) | 9.9*2.5*3.7 |
| Totally weight(kg) | 25000 |
| KPH | 90km/h |
| Front gauge(mm) | 2040 |
| Rear track(mm) | 1860 |
| Fuel category | diesel oil |
| Wheelbase(mm) | 4350+1350 |
| Rotation angle | ±360° |
| Spraying substance | Water mist, disinfectant liquid |
| Spraying distance | 30m 40m 60m 80m 100m |
| Operating mode | Manual/automatic |
| Mist particle size | 40-200μm |

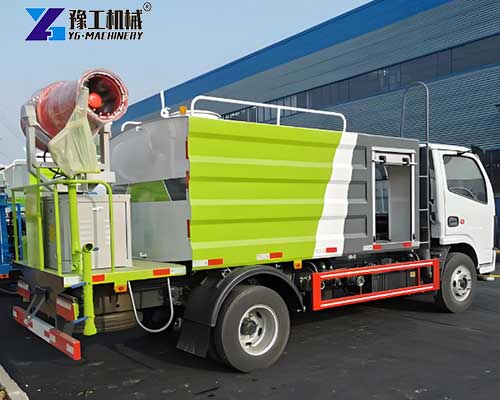

Dust Suppression Truck Application Scope
- Multi-functional dust suppression spray truck is mainly used for iron, roads, dump trucks, city squares, bulk material piles, and other places.
- It can also be applied to the city street haze, dust, cooling, industrial and mining enterprises dust suppression, public places, green garden spray sterilization, and disinfection.
- It is widely used in bulk material transportation processes to prevent dust pollution. It is a slag yard, coal storage, construction sites, automobile coal dust, solid sand, iron and steel building materials, cement, and other essential dust suppression equipment.
Structure of Dust Control Water Truck Sprayer
Multi-functional dust suppression sprinkler, by the automobile chassis, heat preservation tank, spraying mechanism, actuators, control agencies, heat preservation and heating system, and measurement system. Optional data identification record monitoring system.

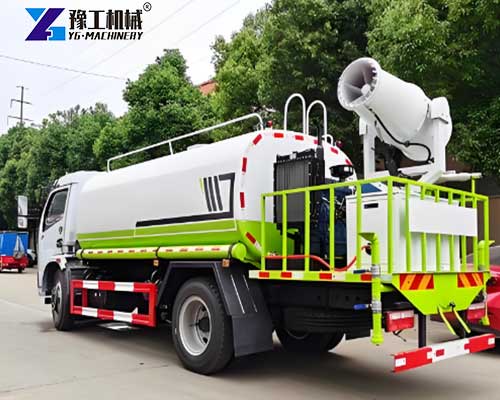

Working Principle of Water Cannon Vehicle for Dust Control
Multi-functional dust-suppressing vehicle uses a high-pressure pump to pressurize water. Then the high-pressure nozzles will be atomized into micron-sized water mist particles. These fine water mist particles can reduce dust and dust suppression. At the same time, by adjusting the range, rotation, and pitch angle of the fog cannon. It can realize precise dust suppression in different areas.

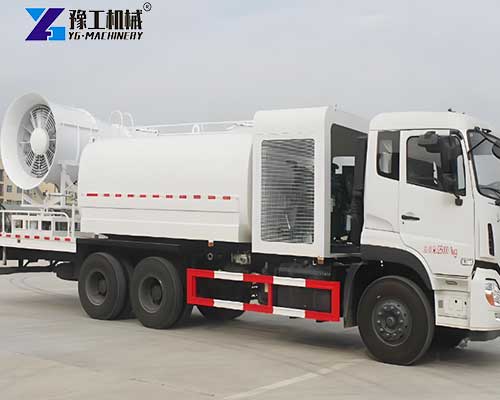

The Mist Fog Cannon Sprayer Truck’s Functions
It installs an anti-dust fog cannon at the rear, which can realize the effects of dust reduction, humidification, and temperature reduction. At the same time, it sprays water in front of the body to wash the road. And sprays the side to water the green plants on the road. The dust suppression vehicle is an important piece of equipment for urban environmental management with various functions.
7 Advantages of Dust Suppression Vehicle
- The tank is made of high-quality alloy structural steel with a thickness of 3mm, which is durable.
- Multi-functional dust suppression vehicle using domestic famous brand self-priming centrifugal sprinkler pump, water pump by the chassis engine power transmission.
- Multi-functional dust suppressor with a front duckbill spray, and rinse. After the sprinkling function, not only can be used for daily sprinkling, play humidification, and dust reduction operations.
- The high spray gun located in the back of the body is flexible to maneuver and can be used for spraying a variety of height objects.
- The equipment has the function of self-priming and water refilling, which can be used in the site lacking tap water with pressure.
- Integrated sprayer, compact structure, and long-range, fine fog particles can be manually or remotely operated. 9. easy to operate.
- Convenient and simple operation. The driver can complete in the cab a variety of action operations.
Dust Control Water Truck from YG
Multi-functional dust suppressor produced by YG is a professional cleaning equipment integrating high efficiency, flexibility, and environmental protection. Equipped with advanced vacuuming and spraying systems, the vehicle can effectively remove dust and reduce dust. High-quality materials create high-quality dust suppression trucks. Our multifunctional dust suppressor trucks have gained the support of many foreign customers. We also provide fog cannon machines, snow-making machines, snow-plowing machines, sweeping machines, polyurethane spraying machines, concrete pumps, concrete mixers, concrete mixing conveyors, hydraulic lifting platforms, and so on. Click contact us to get the factory price!
