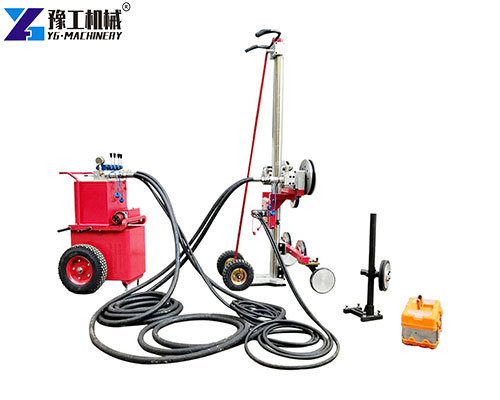

A diamond wire saw machine, as the name suggests, is a kind of equipment that utilizes hydraulic power to drive diamond ropes for cutting. diamond wire saw machine drives the motor through high-pressure hydraulic oil, driving the ropes equipped with diamond particles to rotate at high speed, realizing the cutting of concrete, stone, reinforced concrete, and other hard materials. This type of cutting is not only highly efficient but also has a smooth cut and little impact on the surrounding structure, making it an ideal choice for building demolition, road reconstruction, tunnel boring, and other projects. We also offer construction machinery such as electric wire saws, high-frequency rope saws, wire saw ropes, hydraulic wall saws, concrete pile breakers, pile drivers, and more. Click the button below to tell us about your cutting needs!
Diamond Wire Saw Machine Parameters
| Wire Saw Wheel Parameters | Hydraulic Pump Parameters | ||
| Wire Drive Mode | hydraulic | Motor Power | 22/25kw |
| Motor Type | HM-80, 2 Cylinders | Voltage | 220V/380V, 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Type | Gear Pump |
| Output Shaft Speed | 350/940/1300r/min | Main Drive Motor | 40-100L/min |
| Maximum Wire Length | 20m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Capacity | 17L |
| Wire Saw Wheel Weight | 64kg | Weight | 160kg |
| Motor Weight | 14kg | Size | 700*700*1200mm |
| Size | 1700*700*800mm |

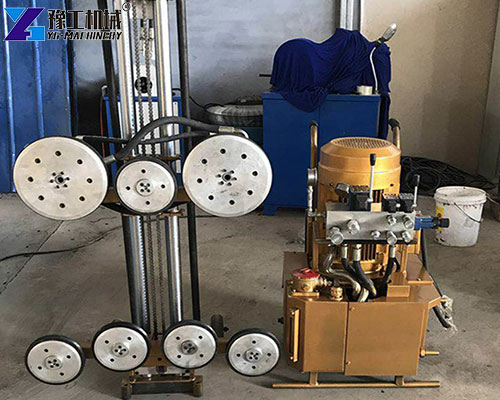

Which Cutting Tasks Are Concrete Cutting Saw Suitable For?
Hydraulic wire saws are widely used in a variety of cutting tasks due to their unique advantages:
- Building demolition: precise cutting of walls and columns to reduce vibration and noise and protect the surrounding structure.
- Road reconstruction: cutting pavements and bridges for fast and precise reconstruction.
- Tunnel boring: cutting complex shapes in narrow spaces.
- Stone processing: Cutting marble, granite, and other stones to maintain high flatness and smoothness.
- Rescue operations: in case of emergency, quickly cut obstacles and open up rescue channels.

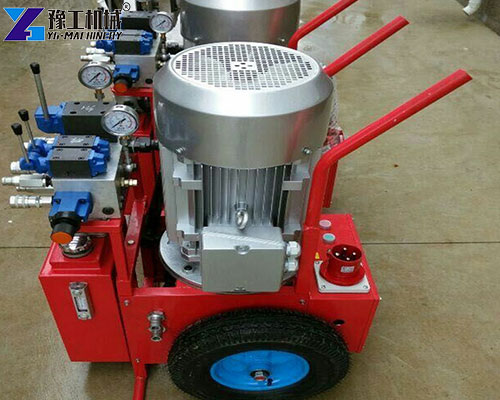

How to Choose the Right Hydraulic Rope Saw?
To choose the right diamond wire saw machine, need to consider the following factors:
- Project requirements: to clarify the type of cutting material, thickness, and cutting accuracy requirements.
- Budget: different brands and models of wire saw cutting machine prices vary greatly, need to combine them with the budget to make a choice.
- Brand and reputation: choose a well-known brand, and check the user evaluation, to ensure the quality of equipment and after-sales service.
- Technical support and training: to understand whether the supplier provides technical support and operation training, to ensure a quick start.
- Maintenance and accessories: consider the ease of maintenance of the equipment and the availability of accessories to reduce long-term operating costs.
Guidelines for the Use of Hydraulic Wire Saws
Proper use of hydraulic rope saws not only improves efficiency but also extends the life of the equipment:
- Safety check: Before each use, check the wear and tear of the rope, the hydraulic oil level, and whether the connecting parts are firm.
- Preparation: Adjust the cutting parameters according to the cutting needs to ensure that the cutting path is marked.
- Stable operation: Keep the equipment stable, avoid shaking, and advance the cutting at a constant speed.
- Cooling and lubrication: Spray water to cool the cutting area at the right time to reduce the wear and tear of diamond ropes.
- Maintenance: Regularly clean the equipment, replace worn parts, and keep the hydraulic system clean.

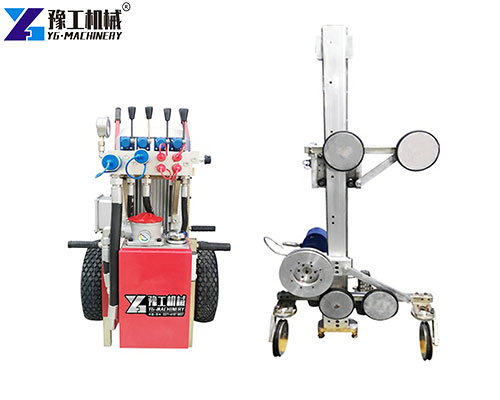

Why Use Wire Saw Cutting Machines?
- High-efficiency cutting: the high-speed rotation of the diamond rope realizes fast cutting and shortens the working period.
- High precision: the cutting surface is flat, with small errors, and suitable for fine work.
- Low impact: low vibration, low noise, low impact on surrounding structures.
- Flexibility: suitable for cutting in various complex environments and shapes.
- Environmental protection and energy saving: adopting water cooling, reducing dust pollution, and meeting the requirements of green construction.

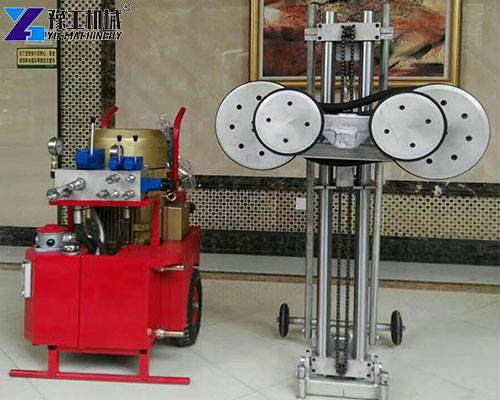

Hot Selling Diamond Wire Saw Machine from YG
As a leader in the industry, YG’s diamond wire saw machines have won wide recognition in the market for their excellent performance, reasonable wire saw-cutting machine price, and high-quality after-sales service. YG hydraulic rope saws use high-quality diamond ropes with a high-efficiency hydraulic system to ensure cutting efficiency and precision; at the same time, its humanized design makes the operation easier and the maintenance cost lower. lower cost. Whether it is large-scale building demolition or fine stone processing, the YG hydraulic rope saw can provide satisfactory solutions.
