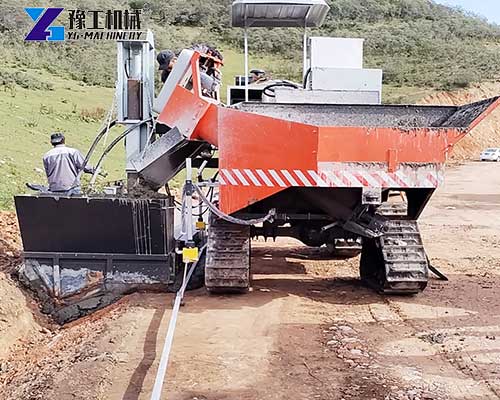

The curb slipform machine, in English, is called the “Curb Laying Machine“. It is also called a “Slipform Kerb Machine” or “Concrete Kerbing Machine”. This is a mechanical equipment specially used to make curbs on site. It uses slipform forming technology to squeeze fresh concrete into the designed shape. There is no need to prefabricate curbs in advance, which can greatly save time and cost.

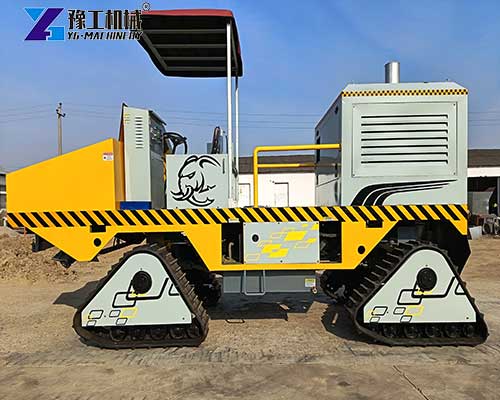

Curb laying machine parameters
| Model | YG-31 | Excitation Force | 11KN |
| Power | 20HP/3600rpm | Control Mode | Manual/automatic |
| Fuel Tank Capacity | 60L | Power | hydraulic motor |
| Type | The gasoline engine, double-cylinder | Automatic Control | High-precision sensors are used for steering longitudinal and transverse slopes |
| Lubricating Oil Quantity | 1.5L | Theoretical Flow | 20L/min |
| Fuel Consumption | 313g/kWh | The Theory of Hydraulic | 7MPa |
| Drive | Cycloid hydraulic motor | Paving Size | The Curb, the widest 80cm*the highest 50cm |
| Vehicle Wheel | solid tire | Paving Speed | 0-15m/min |
| Speed | 0-70m/min | Weight | 1200kg |
| Vibrating Spear | Hydraulic vibrator | Vibrational Frequency | Adjustable frequency |
| Amplitude | 1.5mm | Boundary Dimension | 2660*1970*1450mm |

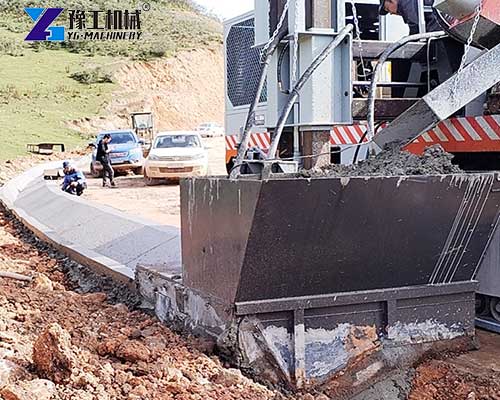

Kerb machine for sale application
- Highway construction: In large highway projects, such as expressways, national highways, and provincial highways, curb-laying machines can quickly lay curbs. It can improve construction efficiency and ensure the quality and linear accuracy of curb laying.
- Municipal roads: Urban road construction and renovation are also inseparable from curb slipform machines. It can flexibly respond to various complex road conditions and design requirements to create beautiful and practical curbs.
- Parking lot: Parking lot laying curbs requires high accuracy and efficiency. The curb slipform machine can complete the work quickly and define clear boundaries for the parking lot.
- Community roads: When constructing roads in residential communities, the curb slipform machine uses its convenience to create neat curbs for the community and enhance the overall image of the community.

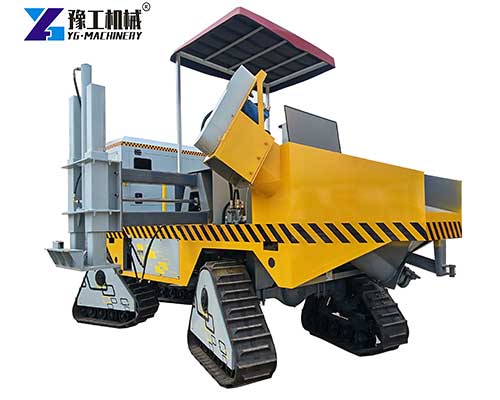

Structure of the slipform kerb machine
- Concrete spreading system: It is responsible for evenly conveying the mixed concrete to the front of the slipform mold. It can ensure a continuous and stable supply of concrete.
- Slipform mold: This is a key component for curb forming. It can be customized according to different curb design shapes and formed by squeezing concrete.
- Walking system: The curb slipform machine is equipped with crawler or tire walking devices. It can ensure that the equipment moves smoothly on the construction site and achieves precise paving operations.
- Control system: The operator uses the control system to monitor and adjust the equipment operating parameters in real time to ensure smooth construction.

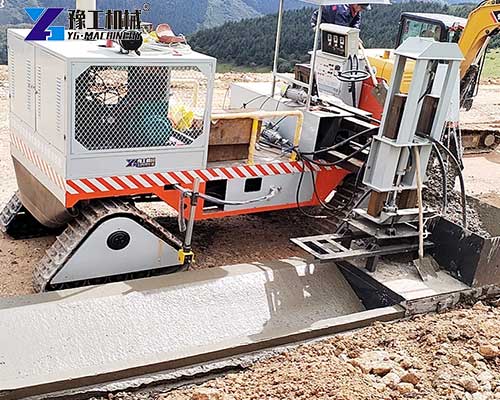

Working principle of the curb slipform machine
When the curb slipform machine is working, concrete is transported to the construction site by a mixer truck. Through the distribution system, the concrete is evenly distributed in front of the slipform. As the equipment moves forward, the slipform squeezes the concrete and shapes it to form a curb that meets the design requirements. In this process, the concrete quickly hardens and forms by its fluidity and the squeezing effect of the slipform.
Why choose YG’s curb laying machine?
- Advanced technology: YG has a professional R&D team that continuously innovates and upgrades the technology of the slipform kerb machine. It can ensure that the equipment is efficient and stable.
- Reliable quality: YG’s curb slipform machine uses high-quality raw materials and advanced production technology. After a strict quality inspection, the service life and construction quality of the equipment are guaranteed.
- Considerate service: YG provides customers with all-around pre-sales, in-sales, and after-sales services. It can promptly solve the problems encountered by customers during use so that customers have no worries.
Concrete kerbing machine for sale
If you are looking for a reliable curb slipform machine, YG is an ideal choice. We provide a variety of models of curb slipform machines to meet the needs of different customers. As a professional curb slipform machine supplier, we always adhere to the principle of “customer first, quality first” to provide customers with high-quality products and services. If you are interested in our products, feel free to contact us to learn more about curb slipform machines.
Choose YG’s curb slipform machine to make road construction more efficient and convenient!
