The crack filling machine is designed to solve the problem of road cracks. It uses a precise system to transport the caulking material to the cracks in the road and complete the filling operation, just like “suturing the wound” for the road. This equipment is widely used, covering municipal roads, highways, and even roads in residential areas. Wherever there are road cracks, there is its place. Unlike general repair tools, the asphalt crack sealing machine is not only easy to operate but also has a more lasting repair effect, which can effectively delay the further development of road diseases.
Crack filling machine parameter
| Model | YG-50L | YG-80L |
| Fuel type | Liquefied petroleum gas | Liquefied petroleum gas+heat conduction oil |
| The volume of the feed tank | 50L | 80L |
| Starting method | Hand Push | Hand Push |
| Net weight | 120kg | 150kg |
| Mixing method | Manual | Manual |
| Dimension | 1200*700*1200 | 1200*700*1200 |
| Model | YG-100L | YG-200L | YG-350L |
| Generator | Import Japan Brand 2KW generator | Import Japan Brand 2.8 kW generator | Japan Brand 6.5kw |
| Power | ——— | 60KW | 400kw |
| Speed | 20m/min | 8L/min | 3600r/min |
| Crack sealing pressure | 2Mpa | ||
| Output speed | Adjustable | Adjustable | Adjustable |
| Volts | 220V/380V | 220V/380V | 220V/380V |
| The length of the electric heating tube | 5m | 5m | 5m |
| Method | Electric | Electric | Electric |
| Hot melt kettle volume | 100L | 200L | 350L |
| Moving method | Towed/Hand Push | Towed | Trailer or Towed |
| Combustor | Italian Riello445T1combustor | Imported RIELLO 445T1diesel burner from Italyfuel consumption 6.6-15L/h. | Italian Riello 445T1combustor |
| Temperature control system | The automatic temperature control system | SLA-5000 intelligent digital temperaturecontroller | Automatic control bySLA-5000 intelligentdigitaltemperature controller |
| Heating method | Italian diesel burner, heat transfer oil cycle heating | Conduction oilindirectheatingand externaloil pumpcirculating heating | Conduction oil indirect heating and external oil pumpcirculating heating |
| Filling material heating time | 30-40min | 30-40min | 30~40min |
| Temperature range | 0-200℃ | 0-200℃ | 0~200℃ |
| Size | 1350*1000*1900mm | 2400*1400*1700mm | 2000*1700*1900mm |
| Weight | 240kg | 860kg | 960KG |

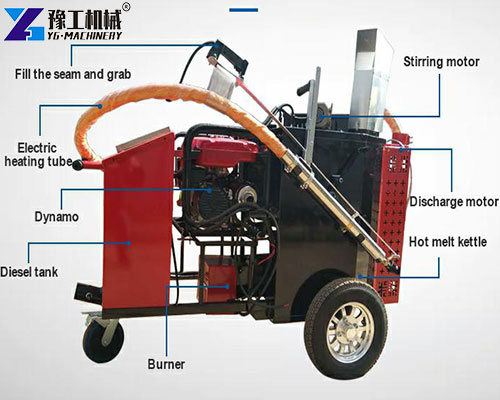

Asphalt crack sealing machine structure
- Storage system: As a “warehouse” for storing caulking materials, the capacity of the storage box varies according to the type of equipment. Large-capacity storage boxes can reduce the number of times of adding materials, improve work efficiency, and are suitable for large-scale road repair projects. Small storage boxes are more flexible and convenient for working in narrow spaces.
- Heating system: The heating device can heat materials such as asphalt and caulking glue to a suitable construction temperature. Some crack-filling machines use liquefied gas heating, which heats up quickly. Some use electric heating, which is clean and environmentally friendly. The heating system is also equipped with a temperature control system to ensure that the material is always in the best construction state.
- Conveying system: With the help of a pump or a pressure device, the conveying system transports the heated material to the discharge port. The precise pressure adjustment function ensures that cracks of different widths and depths can be evenly filled.
- Travel system: For easy movement, the crack-filling machine is equipped with a travel device. Hand-push equipment is light and flexible, suitable for small-area repairs. Self-propelled equipment has strong mobility and can work quickly on large-area roads.
Benefits of using an asphalt crack filler machine
- Extend the life of the road: Once rainwater penetrates into the road base through cracks, it will cause a variety of diseases. The crack filling machine fills the cracks in time, blocks rainwater erosion, and greatly extends the service life of the road.
- Improve driving safety: The flat road surface reduces vehicle bumps, reduces the risk of tire blowouts and loss of control, and creates a safe driving environment for drivers.
- Save maintenance costs: Preventive crack-filling treatment can avoid the deterioration of road diseases, reduce the frequency of large-scale maintenance, and save manpower, material, and financial resources.
How to choose a suitable crack sealing machine?
- Consider the scale of operation: For small road maintenance projects, choose a hand-push crack filling machine, which is economical and practical. For large highway maintenance projects, self-propelled equipment can greatly improve work efficiency.
- Pay attention to the heating method: If the power supply is convenient at the operation site, electric heating equipment is more suitable. If it is necessary to operate in remote areas, liquefied gas heating equipment is more advantageous.
- Investigate brand reputation: Choose a brand with high market recognition and good after-sales service, and the equipment quality and maintenance will be more guaranteed.

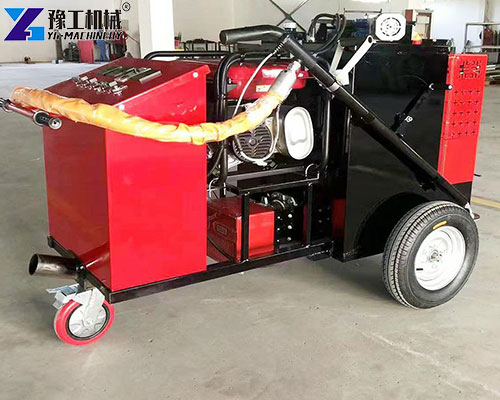

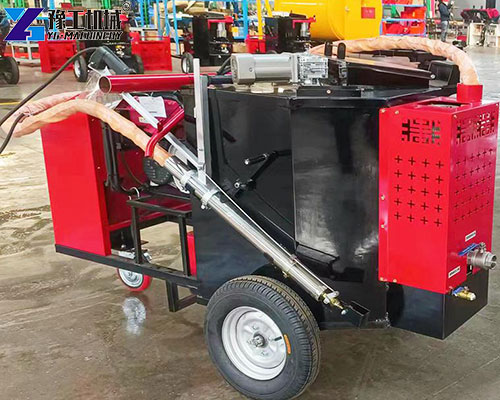

YG: Professional pavement crack filling machine manufacturer
YG focuses on the research and development and manufacturing of pavement crack sealing machines and has an experienced technical team. From product design to production, every link is strictly controlled to ensure that each crack-filling machine is of high quality and excellent performance. YG also provides a full range of after-sales services to solve customers’ worries. With high-quality products and excellent services, YG has established a good reputation in the industry and has become the preferred brand of many road maintenance units.
Choosing YG’s crack filling machine means choosing a professional and efficient road maintenance solution and working together to create a flat and safe road environment!
