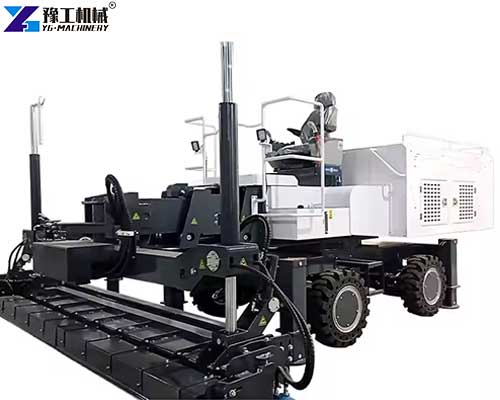

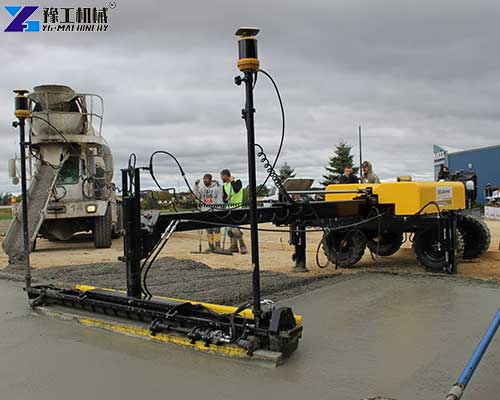

In modern construction, the Concrete Laser Screed Machine has become key equipment for improving ground flatness and construction efficiency. It uses advanced laser technology to automatically adjust and accurately control the elevation of the concrete surface, realizing integrated operations from rough leveling to fine leveling. The Concrete Laser Screed Machine not only greatly shortens the construction period but also significantly improves the quality of the project. It is an indispensable high-tech tool for modern floor construction.
Parameters of Concrete Laser Screed Machine
A typical concrete laser leveling machine, such as the YG series, has impressive parameter configuration: the working width can reach 6 meters, the maximum leveling thickness is 300 mm, the laser receiver accuracy is up to ±2 mm, and it is equipped with a powerful engine with a power of up to 100 horsepower.
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, step-less speed | Handle control, step-less speed | Handle control, step-less speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |

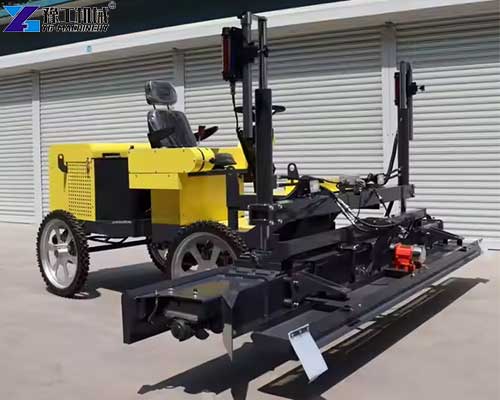

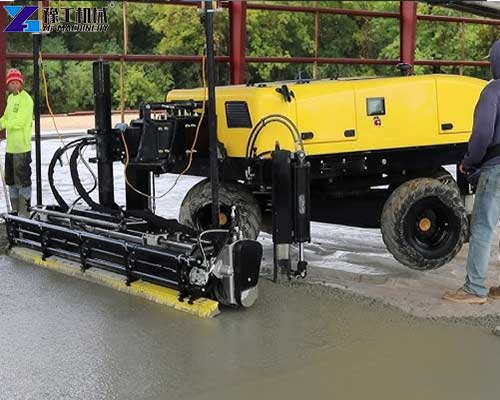

Advantages of laser concrete leveling machine
Compared with traditional methods, the concrete laser leveling machine has significant advantages:
- High precision: The laser guidance system ensures that the ground flatness error is extremely small and meets high standards.
- High efficiency: Greatly reduce manual intervention, increase construction speed by more than 30%, and shorten construction period.
- Cost saving: Reduce manpower requirements, reduce material waste, and effectively control overall costs.
- Stable quality: Mechanized operation reduces human errors and ensures consistency of project quality.
- Easy maintenance: The modular design facilitates daily maintenance and troubleshooting and extends the service life of the equipment.
Comparison with Traditional Manual Methods
Traditional manual construction methods rely on workers’ experience and hand tools, which is not only time-consuming and labor-intensive but also makes it difficult to ensure the consistency of ground flatness. The Concrete Laser Leveling Machine uses automation and intelligent technology to achieve full mechanization from measurement and material laying to leveling, greatly improving construction efficiency and quality. In addition, combined with the wall plastering machine, concrete pump, mortar spraying machine, and other equipment commonly used in modern construction sites, the entire construction process is more coordinated and efficient, further shortening the project cycle.

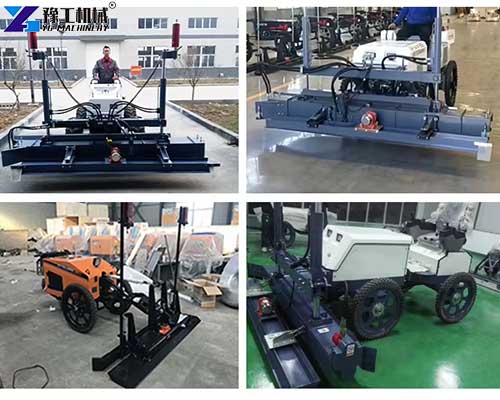

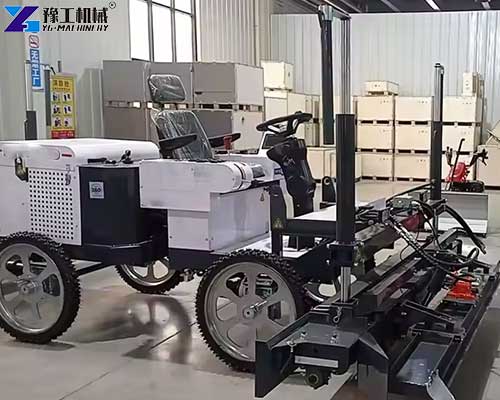

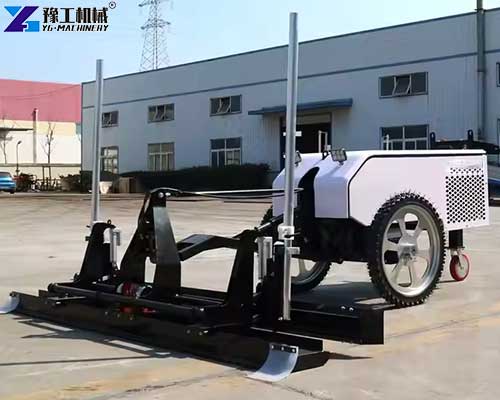

YG concrete screed machine for sale in the USA
As a leader in the field of concrete screed machines for sale, the YG brand has successfully entered the US market with its excellent performance and reliable quality. In the United States, the YG series concrete laser leveling machine is widely used in large warehouses, parking lots, airport runways, and other projects for ground leveling operations and has won unanimous praise from customers. YG not only provides high-quality products but also has a complete after-sales service system to ensure that customers receive all-around support during use.
