Commercial car charging stations, a key component of the electric vehicle infrastructure, are becoming an increasingly important force in promoting green mobility. Designed for commercial use, these charging stations are capable of meeting the rapid charging needs of all types of electric vehicles. They not only promote the popularization of electric vehicles but also greatly reduce “mileage anxiety”, allowing EV users to embark on long-distance journeys with greater confidence.
Commercial Car Charging Stations Parameters
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Commercial Ev Charging Stations Application

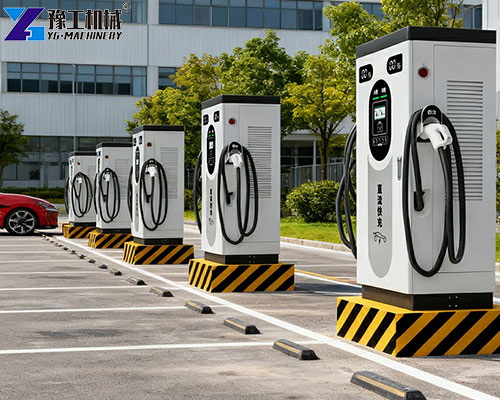

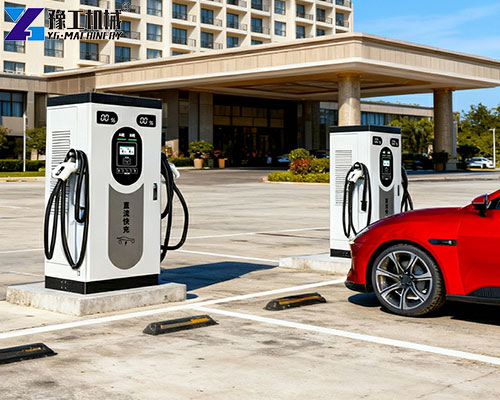

Commercial Car Charging Stations are widely used in a variety of situations, including but not limited to:
- Shopping centers and parking lots: providing convenient charging services for shoppers and commuters.
- Highway service areas: to solve the charging needs during long-distance travel and shorten the charging time.
- public places: such as parks, schools, hospitals, etc., to enhance the convenience of charging in the area.
- Corporate Parks: Provide charging facilities for internal employees and visitors to support corporate green transportation policy.
Why Many Customers Choose to Purchase Ev Quick Charger?
- Growing Market Demand: With the surge in sales of electric vehicles, the demand for charging facilities is also on the rise.
- Policy Support: Governments provide subsidies and tax incentives for new energy vehicles and charging infrastructure, reducing investment costs.
- Brand image enhancement: Providing charging services to enterprises or organizations demonstrates their environmental responsibility and enhances their brand image.
- Long-term benefits: By providing charging services, a sustainable source of income can be realized, especially in high-traffic areas.
Advantages of Commercial EV Charging Stations

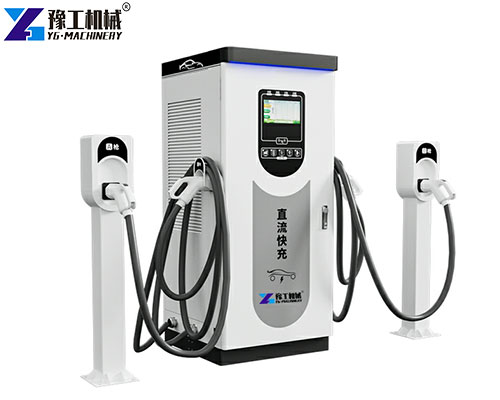

- Efficient charging: Especially ev quick charger can significantly shorten the charging time and enhance user experience.
- Environmental protection and energy saving: Promote the use of electric vehicles, reduce carbon emissions, and help environmental protection.
- Technological innovation: Intelligent management improves operational efficiency and reduces operation and maintenance costs.
- Flexibility: The charging power and quantity can be flexibly configured according to the site conditions and user needs.
Ev Car Charger Price
The price of EV quick chargers is high, ranging from tens of thousands of dollars to hundreds of thousands of dollars, but it is more suitable for public places and high-traffic areas because of its efficient charging capacity. We at YG give you quality chargers. Also, the price has no middleman markup, it is the factory price. Meanwhile, we provide full service from design to installation for specific needs, and the price needs to be evaluated according to the specific program. Click on Contact Us to get your charging pile quotation now!
