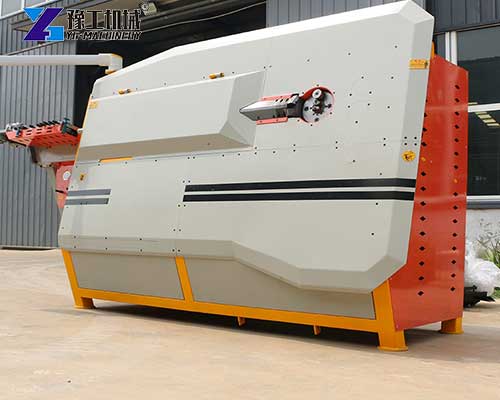

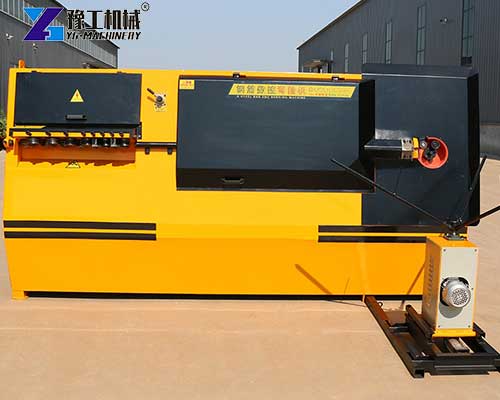

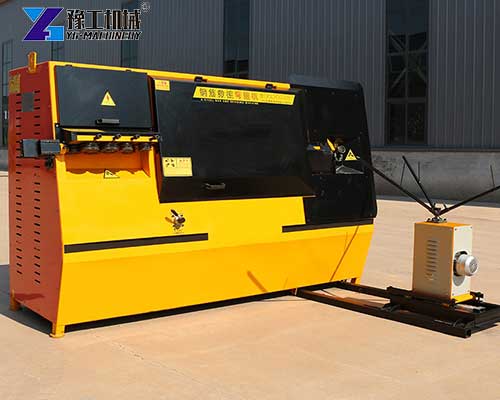

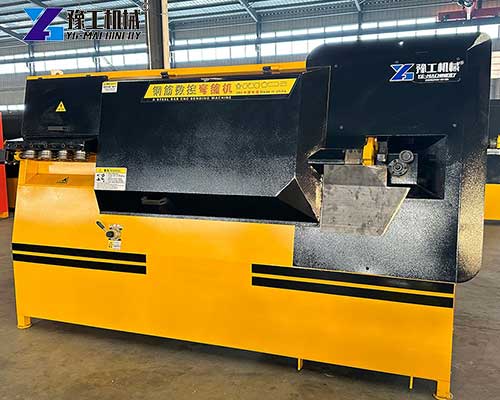

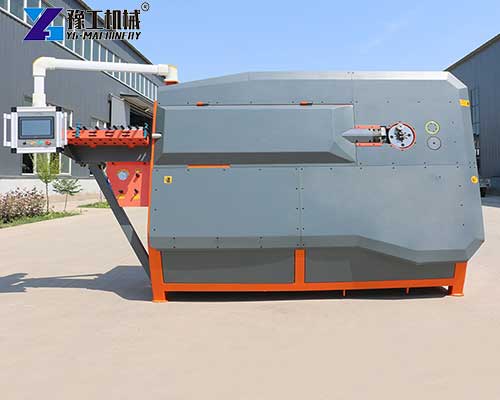

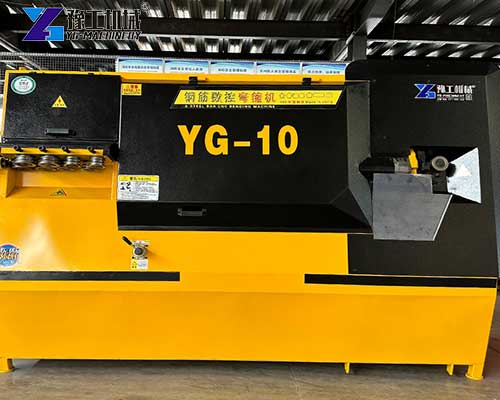

In the modern steel bar processing industry, the CNC hoop bending machine has become the core equipment to improve production efficiency and processing accuracy. Different from the traditional manual or semi-automatic hoop bending method, the CNC Bending Hoop Integrated Machine integrates advanced CNC technology and precision mechanical structure and is designed for efficient and accurate bending of steel bars. The Rebar CNC Bending Hoop Machine launched by YG has pushed this technology to a new height and become a new benchmark in the field of steel bar processing. This equipment can not only process ordinary steel bars but also easily cope with the bending needs of complex shapes of steel bars, such as the production of steel cages for building structures. It is an ideal replacement or supplement for CNC steel bar stirrup bending machines.
Parameters of CNC Hoop Bending Machine
The parameter configuration of the YG CNC steel bar bending machine highlights its professionalism and high performance:
| Model | YG-2 | YG-1 |
| Single wire(mm) | Round steel 4-12mm, Deformed steel bar 4-10mm | Round steel 4-10mm, Deformed steel bar 4-8mm |
| Double wire(mm) | Round steel 4-8mm, Deformed steel bar4-8mm | Round steel 4-6mm, Deformed steel bar 4-6mm |
| Max bending angle | ±180° | ±180° |
| Center pin diameter | 16、18、20 | 16、18、20 |
| Maximum towing speed | 60m/min | 60m/min |
| Maximum bending speed | 800°/sec | 800°/sec |
| Machine size | 3280*1000*1700mm | 2600*800*1700mm |
| Device color | Yellow(customized) | Yellow(customized) |
| Pieces Processed | ≤2 | ≤2 |
| Air circuit system pressure | ≥0.8mpa | ≥0.8mpa |
| Total Power | 20kw | 14kw |
| Working temperature | -5°C~40° | -5°C~40° |
| Length accuracy | ±1mm | ±1mm |
| Angle accuracy | ±1° | ±1° |
| Average power | 5KW/h | 4.5KW/h |
| Total weight | 1350KG | 1150KG |
Advantages of rebar CNC bending hoop machine
- High-precision processing: driven by a servo motor to ensure that every bend is accurate.
- Efficient production: Automated operation process, greatly shortening the processing cycle and improving production capacity.
- Versatility: Supporting a variety of hoop shapes and sizes to meet diverse processing needs.
- Easy to operate: Friendly human-machine interface, even novices can quickly get started.
- Energy saving and environmental protection: Optimize energy management, reduce energy consumption, and comply with the concept of green production.
Why Choose a CNC steel bar stirrup bending machine?
Choosing a CNC steel bar hoop bending machine means choosing a double improvement in efficiency and quality:
- Improve processing accuracy: Compared with manual hoop bending, the CNC hoop bending machine ensures the consistency of the size and shape of each hoop and reduces the scrap rate.
- Enhance production efficiency: Automated operation greatly reduces manual operation time and speeds up project progress.
- Reduce costs: Although the initial investment is high, in the long run, the overall cost is effectively controlled by reducing labor and material waste.
- Strong adaptability: Whether it is a simple straight bend or a complex space bend, the CNC hoop bending machine can easily cope with it and meet diverse design needs.
From YG: Your Trusted Partner in CNC Hoop Bending
YG, as a leader in CNC rebar processing equipment, is committed to providing customers with the best CNC rebar hoop bending solutions. Our products are not only well-known in the domestic market, but also exported overseas and have won wide recognition. From pre-sales consultation, on-site installation, and commissioning, to after-sales technical support and training, YG provides a one-stop service to ensure that every customer can enjoy a worry-free experience. Choosing YG’s CNC rebar hoop bending machine means choosing efficiency, precision, and reliability. Let us work together to create a brilliant future for the rebar processing industry! You can also get the rebar straightening and cutting machine, rebar thickening machine, rebar thread rolling machine, rebar cutting machine, rebar sleeve, and other rebar processing-related equipment!
