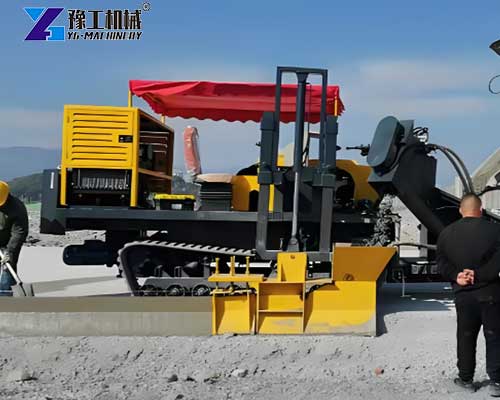

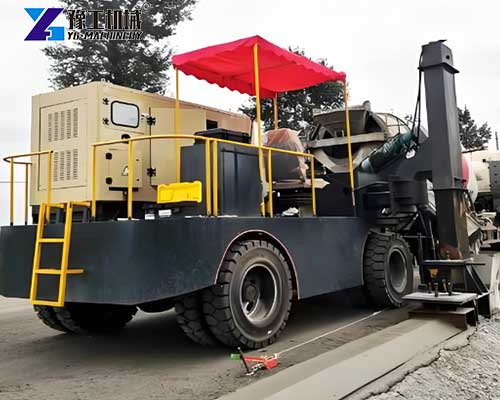

In the road construction industry, the cement curbing machine is gradually becoming the first choice for many projects with its excellent performance. It is a device that can directly cast concrete into curbs at the construction site. During construction, the mixed concrete is fed into the machine. As the machine moves forward, it squeezes the concrete into the designed curb shape through a specific mold, completing the laying of the curb in one go. Click to get a quote for the YG-31 curb slipform machine!
Cement curbing machine parameter
| Model | YG-31 | Excitation Force | 11KN |
| Power | 20HP/3600rpm | Control Mode | Manual/automatic |
| Fuel Tank Capacity | 60L | Power | hydraulic motor |
| Type | The gasoline engine, double-cylinder | Automatic Control | High-precision sensors are used for steering longitudinal and transverse slopes |
| Lubricating Oil Quantity | 1.5L | Theoretical Flow | 20L/min |
| Fuel Consumption | 313g/kWh | The Theory of Hydraulic | 7MPa |
| Drive | Cycloid hydraulic motor | Paving Size | The Curb, the widest 80cm*the highest 50cm |
| Vehicle Wheel | solid tire | Paving Speed | 0-15m/min |
| Speed | 0-70m/min | Weight | 1200kg |
| Vibrating Spear | Hydraulic vibrator | Vibrational Frequency | Adjustable frequency |
| Amplitude | 1.5mm | Boundary Dimension | 2660*1970*1450mm |

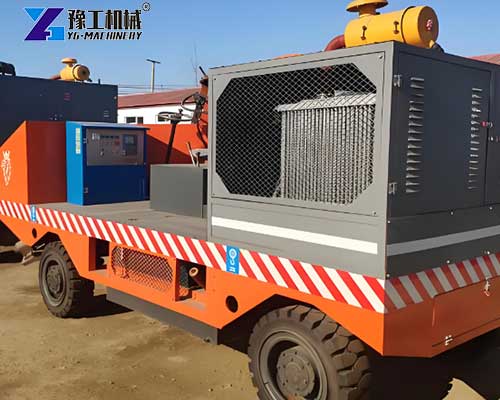

Extruded curb machine vs traditional prefabricated curbs
- Cost. Traditional prefabricated curbs have many links from production, transportation to installation, which consumes manpower and material resources. The curb slipform machine is cast on site, eliminating the prefabrication and transportation links, greatly reducing costs. Taking a 5-kilometer road as an example, using a cement curbing machine can save about 30% of the cost.
- Construction efficiency. The installation of traditional prefabricated curbs is slow and takes a long time. The slipform machine is easy to operate, and the construction is continuous, which can greatly improve construction efficiency. For the same 5-kilometer road, the slipform machine construction can shorten the construction period by half.
- Quality effect. The joints of prefabricated curbstones are prone to gaps, which affect the appearance and stability. The curb stones cast on site by the slipform machine have strong integrity, smooth lines, and more reliable quality.

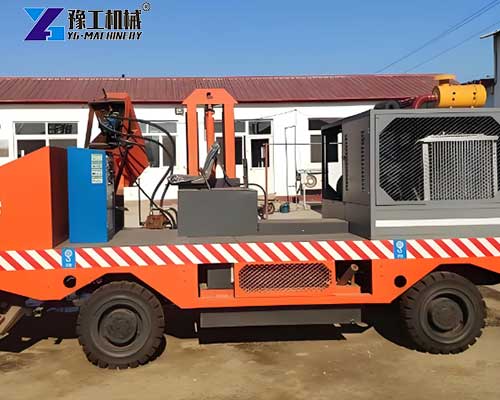

Case study of the concrete border machine
- Brazilian customer
A large highway project in Brazil uses our cement curbing machine. Customer feedback shows that the equipment is easy to operate and the curbstones produced are of high quality. The project, which was originally expected to take 6 months, was completed in 4 months, which greatly saved time and cost. - Indian customer
A municipal road construction project in India uses our equipment. During the construction process, the slipform machine performed stably and could adapt to complex terrain. The curbstones produced were beautiful in style, meeting the diverse local design needs and winning unanimous praise from the local government and residents. - Vietnamese customers
Our curb slipformer was introduced into the road construction of an industrial park in Vietnam. The customer said that the equipment is easy to maintain and can operate normally even in harsh environments, ensuring the smooth progress of the project.
Why did the customer choose our kerb machine for sale?
- Excellent performance. Our cement curbing machine has advanced technology, easy operation, and high production efficiency. Equipped with high-precision molds, it can produce curbs of various shapes to meet the needs of different projects.
- Excellent quality. The equipment is made of high-quality materials and advanced technology. After strict testing, it has reliable quality, long service life, and reduced maintenance costs.
- YG provides comprehensive services. We provide a full range of services, from equipment selection, installation, and commissioning to after-sales maintenance, with professional team support so that customers have no worries.

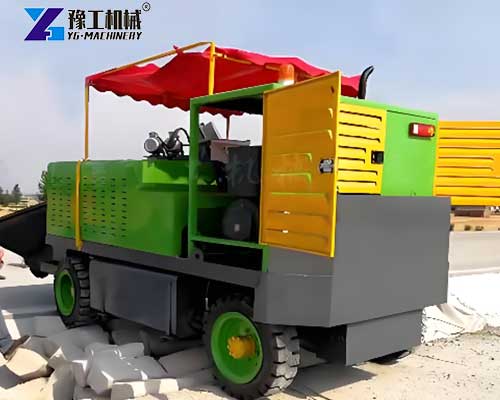

YG is an excellent curb slipformer manufacturer
YG has been deeply involved in the curb slipformer field for many years and has accumulated rich experience and technology. We continue to innovate and develop a variety of high-performance cement curbing machines, which are sold well in domestic and foreign markets. With excellent products and services, we have been widely recognized by customers. If you need to purchase a curb slipform machine, YG is your best choice.
