The breaker attachment for excavator is a heavy-duty construction machine mounted on excavators, backhoes, skid steers, mini excavators, and stationary equipment. It is hydraulically powered and can break rock into smaller sizes or break concrete structures into manageable pieces. They are versatile tools that can handle a variety of jobs and come in different sizes and models to meet specific needs. Good hammers are durable and are commonly used in a variety of applications such as demolition, construction, road building, mining and quarrying, tunneling, and landscaping.
Breaker Attachment For Excavator Parameters
| Model | Chisel Diameter | Suitable Carrier Weight | Main Body Weight | Operating Pressure | Hydraulic Oil Flow | Blow Frequency | Hose Diameter |
| mm | Ton | kg | Kg/cm 2 | I/min | bpm | inch | |
| YG350 | 35 | 0.5-1 | 40 | 90-120 | 15-25 | 800-1300 | 1/2 |
| YG400 | 40 | 1-3 | 53 | 90-120 | 15-25 | 800-1300 | 1/2 |
| YG450 | 45 | 1.2-3.0 | 67 | 90-120 | 20-30 | 700-1200 | 1/2 |
| YG530 | 53 | 2.5-4.5 | 85 | 90-120 | 25-50 | 600-1100 | 1/2 |
| YG600 | 60 | 2-5 | 140 | 90-120 | 25-50 | 600-1100 | 1/2 |
| YG680 | 68 | 4-7 | 152 | 110-140 | 40-70 | 500-900 | 1/2 |
| YG750 | 75 | 6-9 | 210 | 120-150 | 50-90 | 400-800 | 1/2 |
| YG850 | 85 | 7-14 | 278 | 130-160 | 60-100 | 400-800 | 3/4 |
| YG100 | 100 | 10-15 | 475 | 150-170 | 80-110 | 350-700 | 3/4 |
| YG1250 | 125 | 15-18 | 616 | 150-170 | 80-110 | 350-700 | 3/4 |
| YG1350 | 135 | 16-26 | 846 | 160-180 | 130-150 | 400-800 | 1 |
| YG1400 | 140 | 18-26 | 916 | 160-180 | 120-180 | 350-500 | 1 |
| YG1400A | 140 | 18-26 | 952 | 160-180 | 120-180 | 350-500 | 1 |
| YG1500 | 150 | 27-35 | 1088 | 160-180 | 150-190 | 350-700 | 1 |
| YG1550 | 155 | 28-36 | 1309 | 180-200 | 200-260 | 250-400 | 1-1/4 |
| YG1650 | 165 | 30-40 | 1438 | 180-200 | 200-260 | 250-400 | 1-1/4 |
| YG1650P | 165 | 30-40 | 1586 | 180-200 | 200-260 | 250-380 | 1-1/4 |
| YG1750 | 175 | 35-40 | 1929 | 180-200 | 210-290 | 200-350 | 1-1/4 |
| YG1850 | 185 | 35-45 | 2411 | 190-220 | 220-270 | 200-250 | 1-1/4 |
| YG1990 | 190 | 40-55 | 2626 | 190-220 | 220-290 | 180-200 | 1-1/4 |
| YG2100 | 210 | 60-80 | 3396 | 200-240 | 290-350 | 150-200 | 1-1/4 |

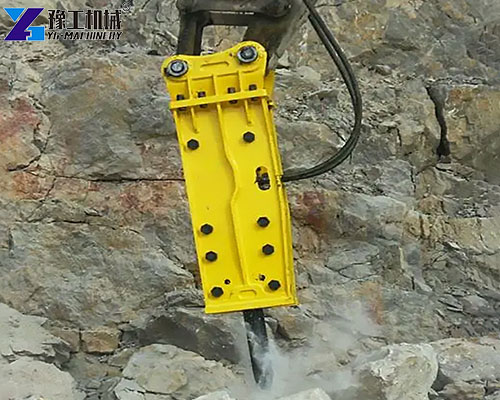

Rock Breaker Attachment Application
Hydraulic crushing hammer has a wide range of applications, the main scenes can be applied to the following aspects:
- Mining: mountain opening, mining, grid screen crushing, secondary crushing.
- Metallurgy: ladle, slag cleaning, demolition furnace dissatisfaction, equipment foundation demolition.
- Railroads: mountain opening, tunnel boring, road and bridge demolition, roadbed compacting.
- Highway: highway repair, concrete pavement crushing, foundation excavation.
- Municipal garden: concrete crushing, water, electricity, gas project construction, old city renovation.
- Construction: old building demolition, reinforced concrete crushing.
- Others: ice-breaking, breaking frozen soil, sand vibration.

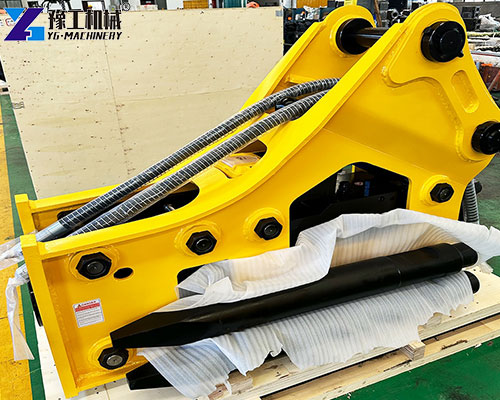

5 Features Hydraulic Power Hammer
- High-efficiency crushing: A breaker attachment for excavator has high impact frequency and high impact energy. Therefore, it can quickly crush hard materials and improve work efficiency.
- Flexible adaptation: When crushing rocks of different hardness, the impact force and frequency of the crushing hammer can be changed by adjusting the working pressure and flow rate of the hydraulic system.
- Low noise and vibration: Compared with traditional mechanical crushing tools, hydraulic crushing hammers have lower noise and vibration, which reduces the impact on operators and the surrounding environment.
- Durable and Reliable: The equipment is made of high-strength materials with high wear resistance and durability. So it can be used for a long time under a harsh working environment.
- Easy to install and operate: This crushing hammer can be quickly connected to the excavator for easy installation. At the same time, it is easy to operate.

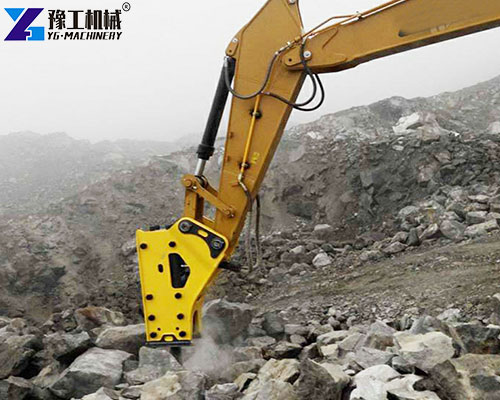

Precautions of Excavator Hydraulic Rock Breaker
- When using the hydraulic crushing hammer, make sure the brazing rod is perpendicular to the striking surface and compact the brazing rod.
- It is forbidden to strike the same place continuously for more than 1 minute, otherwise, it is easy to cause excessive wear and tear on the brazing rod, and the position should be changed to strike.
- The hydraulic breaker hammer cannot be used as a lifting tool.
- Regularly check and maintain the hydraulic breaker hammer to extend its service life and improve working efficiency.
Quality Breaker Attachment For Excavator Manufacturer – YG
YG Hydraulic Breaking Hammer Manufacturer is a leading company specializing in the research, development, and production of high-quality hydraulic breaking hammers. We are committed to providing customers with excellent performance, stable and reliable excavator attachment crushing hammer products. A strict quality control system and comprehensive after-sales service make our equipment gain many customers’ support. We also offer hydraulic shears, pile breakers, crushing buckets, rock saws, and other excavator attachments.. equipment. Fill in your requirements to get customized crushing hammer recommendations!
