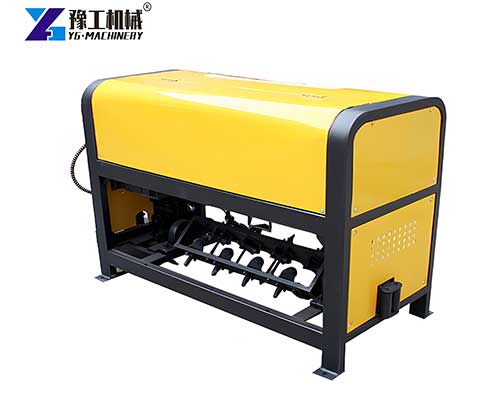

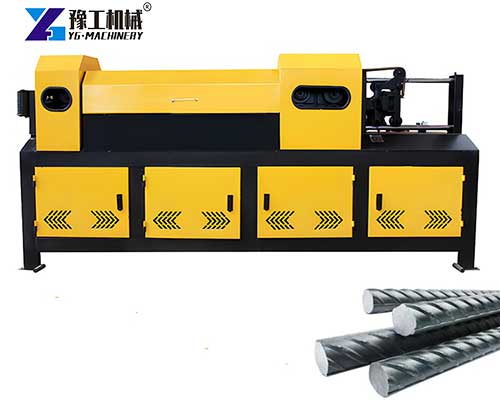

Bar Straightening and Cutting Machines a core equipment in the construction and manufacturing industries. It is used to quickly straighten bent steel bars, steel wires, or metal bars and cut them to set lengths. Its working principle is to correct the curvature of the material through multiple sets of rollers and cooperate with hydraulic blades to complete precise cutting. For example, in prefabricated component factories, this equipment is often linked with CNC hoop bending machines to achieve full automation of steel bar processing.
Bar straightening and cutting machine Technical Parameters
| Model | YGT 4-14 | YGT 5-16 |
| Diameter adjustment range | 4-14mm ( Ⅲ grade steel) | 5-16mm ( Ⅲ grade steel) |
| Wire pulling speed | 50m/min | 50m/min |
| Traction motor power | 2.2kw-6 | 2.2kw-6 |
| Modulation motor power | 7.5kw-4 | 15kw-4 |
| Cut off motor power | 5.5kw | 5.5kw-4 |
| Cutting error | ±0.5-1cm | ±0.5-1cm |
| Wire length | 800-9000mm (can be lengthened) | 800-9000mm (can be lengthened) |
| straightening degree | ±2 mm/m | ±2 mm/m |
| Weight | 1500kg | 1500kg |
| Size | 2800*650*1200mm | 3300*650*1300mm |
Materials Processed By wire straightening cutting machines

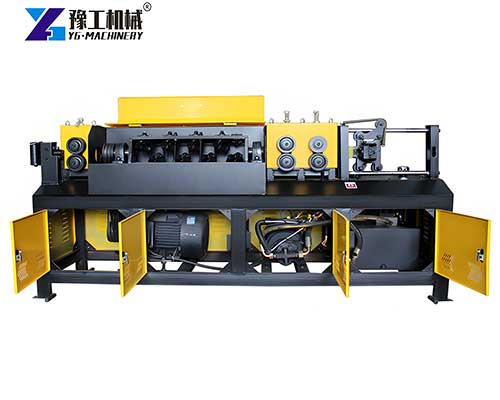

Steel Wire Straightener is compatible with a variety of materials:
- Carbon steel bars: HRB335, HRB400 and other construction materials;
- Stainless steel wire: diameter ≤12mm, used for mechanical parts;
- Copper and aluminum bars: conductive bars, decorative lines raw materials;
- Rebar: After straightening, connect to the steel bar roughing machine to enhance the end strength.
Note: High-hardness alloy steel (such as 45Cr) requires customized strengthening rollers.
Advantages Of steel wire straightener
- Efficiency improvement: The daily processing capacity of a single machine reaches 8 tons, equivalent to 20 workers;
- Cost saving: Reduce material waste and increase the yield rate to 98%;
- Flexible adaptation: 20 preset cutting schemes, one-click switching;
- Stable quality: Eliminate the strength loss caused by manual straightening;
- Production line integration: Linked operation with the steel bar rust removal machine to achieve “rust removal-straightening-cutting” one-stop processing.

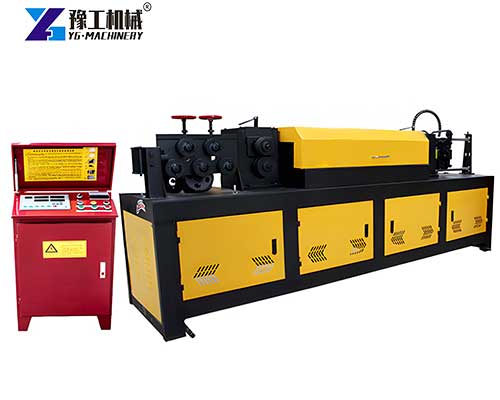

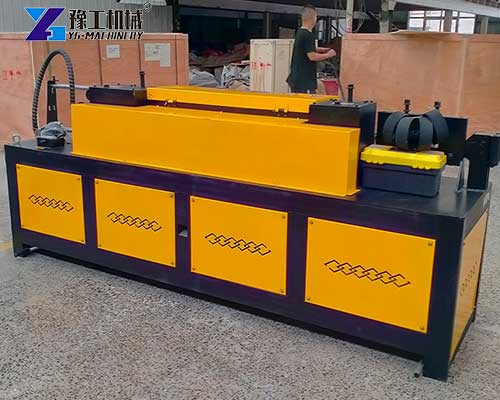

Wire rod straightening machine Customer Feedback
- Jiangsu, China: China Railway Fourth Engineering Bureau, a bridge builder, said: “The Bar Straightening and Cutting Machine has increased the efficiency of pile foundation steel bar processing by 3 times, and the error rate has been reduced from 5% to 0.8%.”

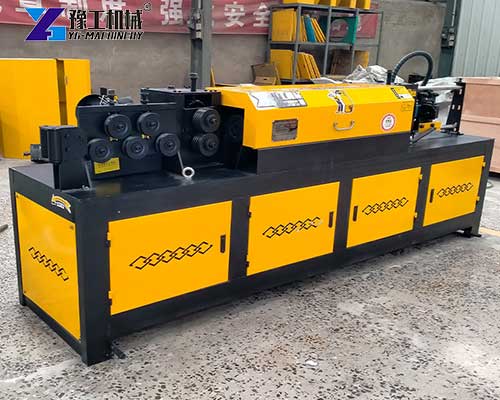

- Ho Chi Minh City, Vietnam: After adopting Wire Straightening Cutting Machines, metal products factory VinaSteel saves $12,000 in labor costs per month;
- Saudi Arabia: Precast panel factory combines Steel Wire Straightener with a CNC stirrup bending machine to shorten the delivery cycle by 60%.
Conclusion
From construction sites to metal processing plants, Bar Straightening and Cutting Machine reshapes productivity standards with high precision and low cost. Whether it is used with a steel cold extruder to produce complex components, or with a steel roughing machine to strengthen material properties, YG equipment helps you control quality and efficiency – consult now to get a customized solution!
