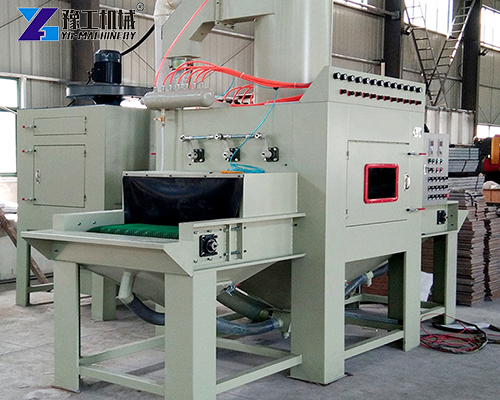

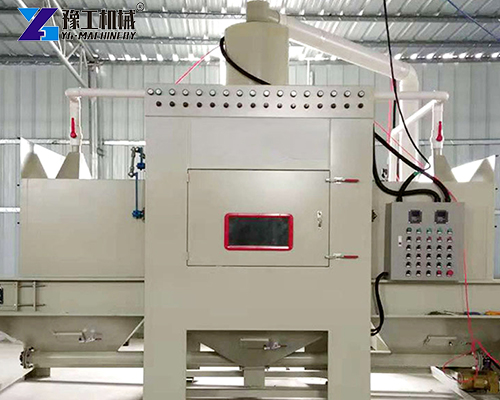

Automatic sand blasting machine is a kind of equipment for automatic sandblasting. Take the turntable automatic sandblasting machine as an example. Through the turntable device, the workpiece is sprayed with sand during the rotation process to achieve an all-around surface treatment. Compared with traditional manual sandblasting, the automatic sandblasting machine uses an intelligent control system to accurately control the spray pressure, flow rate, and sandblasting time of the sand, which greatly improves the accuracy and stability of the sandblasting operation and effectively reduces the errors caused by manual operation.
Automatic sand blasting machine parameters
| Model | YG-5021-8A |
| Host device dimensions | 1600*3000*3150mm |
| Equipment working room size | 1300*1000*1000mm |
| Dust box dimensions | 1200*1200*2400mm |
| Dust removal fan | 380V/50HZ, 5.5KW |
| Automatic conveying motor | 380V/50HZ, 0.75KW (speed adjustable) |
| Automatic conveying mechanism | 380V/50HZ, 0.37KW (speed adjustable) |
| Lighting: 3w fluorescent lamps 3 | 3pcs,18w |
| Number of guns | 12pcs (an aluminum alloy with a boron carbide nozzle) |
| Sand bucket | 3pcs |
| Work station | 8 (12, customized) |
| Air pressure | >5bar(kg/cm2) |
| Air consumption | 8~12m³/min |
| Load capacity in the studio | ≤50Kg |
| Total power | 11Kw |
| Total weight | 1750Kg |
Turntable sandblasting machine application
- Metal processing industry: rust removal and deoxidation treatment of metal parts, and at the same time, the rough surface formed by sandblasting can enhance the adhesion of the coating and improve the corrosion resistance of the parts.
- Glass products industry: Creating a frosted effect on the glass surface can not only improve the beauty of the glass but also meet specific functional needs, such as increasing the anti-slip property of the glass.
- Handicraft manufacturing: through sandblasting, a unique texture and texture are created on the surface of the handicraft to enhance the artistic value of the product.
Advantages of automatic sandblasting machine
- Efficient operation: Automated operation greatly improves the efficiency of sandblasting, which can save a lot of time and labor costs compared with manual sandblasting.
- Uniform treatment effect: Accurate parameter control and uniform rotation of the turntable ensure a consistent sandblasting effect on the surface of the workpiece and improve product quality.
- Environmental protection and energy saving: The equipped high-efficiency dust removal system can effectively collect the dust generated during the sandblasting process, reduce pollution to the environment, and reduce the waste of sand materials, thereby achieving energy saving and consumption reduction.
Turntable automatic sandblasting machine supplier-YG
As a professional automatic sandblasting machine supplier, YG has rich experience in the research and development and production of automatic sandblasting machines. The company’s technical team can provide customized solutions according to the different needs of customers. From equipment installation and commissioning to after-sales maintenance, YG provides one-stop service to ensure the stable operation of equipment and help enterprises solve their worries. With excellent product quality and a good reputation, YG occupies an important position in the industry.
