An automatic chain link fencing machine is a kind of machine that can weave all kinds of metal wires into diamond-shaped mesh. Our hook wire mesh machine can handle all kinds of materials for hook wire mesh. The hook wire mesh machine is characterized by a small footprint, automatic mesh threading, automatic shearing, automatic mesh feeding, automatic edge locking, and automatic folding and rolling of the finished product. Chain link mesh machine, also known as diamond mesh machine, coal mine support mesh machine, anchor mesh machine, or weaving machine.YG produces hooked wire mesh, which is widely used in many fields due to its unique weaving method and structural characteristics. Click to get the price of the equipment!
Automatic Chain Link Fencing Machine Parameters
| Model | YG-20-100 | YG-25-80 |
| Wire diameter | 1.6-4mm | 2-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mesh length | 30m, adjustable freely as per your request | |

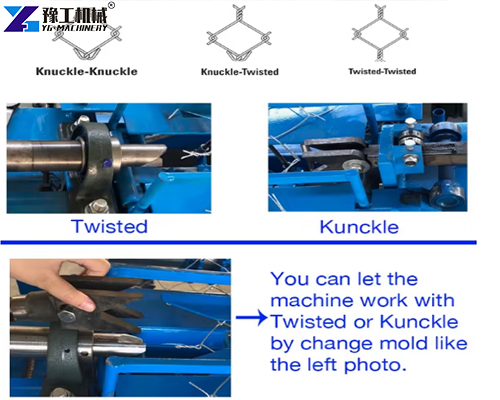

| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC-coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2000kg | 4200kg |
| We can design the machine according to your wire diameter, mesh hole size, mesh width, and voltage. | ||
Chain Link Fence Material
- Chain link fence material: high-quality low carbon steel wire (iron wire), stainless steel wire, aluminum alloy wire.
- Different surface treatments: electro-galvanized – hook wire mesh, hot-dip galvanized – hook wire mesh, plastic-coated hook wire mesh (PVC, pe plastic-coated), dipped plastic hook wire mesh, sprayed plastic hook wire mesh.
- Stainless steel chain link fence (material 201, 302, 304, 304L, 316, etc. without surface treatment).
Application of Chain Link Wire Mesh Making Machine
- The automatic chain link fencing machine is widely used in road, railroad, highway, and other fence mesh facilities.
- Chain link fence machines can also be made to feed chickens, ducks, geese, rabbits, and zoo fences.
- Protective nets are for machinery and equipment, and conveyor nets are for machinery and equipment.
- Fence for stadiums, road green belt protection net.
- Chain Link Fence Machine is also used to protect and support seawalls, slopes, roads and bridges, reservoirs, and other civil engineering works.

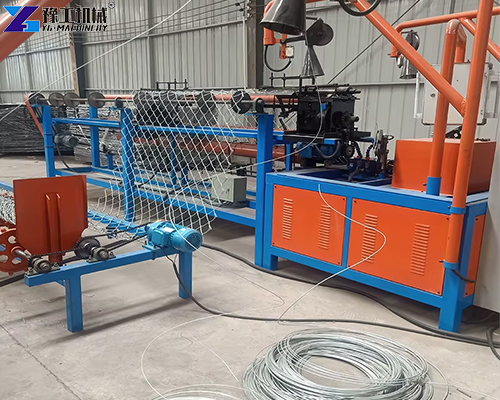

Wire Mesh Making Machines Structure
Automatic chain link fencing machine mainly includes the head, threading frame, payoff reel, wireframe, CNC electric box, touch screen operation interface, electromagnetic clutch automatic braking system, automatic edge-locking rolled mesh system, multi-mold system, adjustment mechanism and other parts.
8 Advantages of Chain Link Fence Machine for Sale
YG produces hook wire mesh with uniform mesh size and flat surface, which ensures the beauty and practicability of the products. The automatic chain link fencing machine by YG has a long service life. The following are the main features of the hook wire mesh machine:
- Chain link fence mesh width can be automatically adjusted.
- Set the weaving speed on the touch screen.
- The machine can work continuously for 24 hours.
- The machine is easy to start, easy to learn, and one worker can operate.
- After the machine is debugged, the scrap rate is basically no waste produced.
- Touch screen control system.
- Suitable for all medium carbon steel below all the wire.
- The size of the mesh can be adjusted according to the mold.
Chain Link Making Machine from YG
YG provides you with different hook wire mesh machine models. For example, fully automatic chain link fencing machine, fully automatic single wire hook mesh machine, and semi-automatic hook mesh machine. Our hook wire mesh machine can make many forms of hook wire mesh. High working efficiency, intelligence, stable operation, and long service life are its features. We also produce related rebar processing machinery, such as rebar straightening and cutting machines, rebar dunnage machines, rebar thread rolling machines, rebar bending machines, rebar derusting machines, and so on. We can recommend a suitable chain link fence machine for sale solutions according to customers’ needs. Click to get a quote for a chain link wire mesh making machine!
