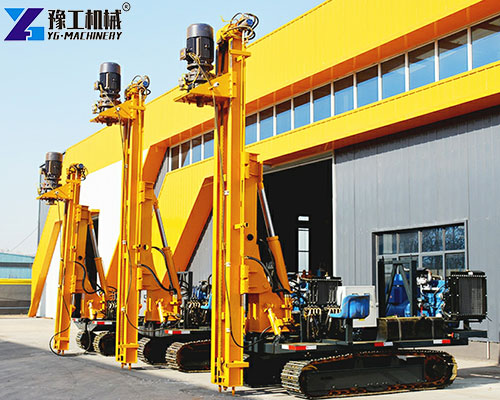

solar pile driver

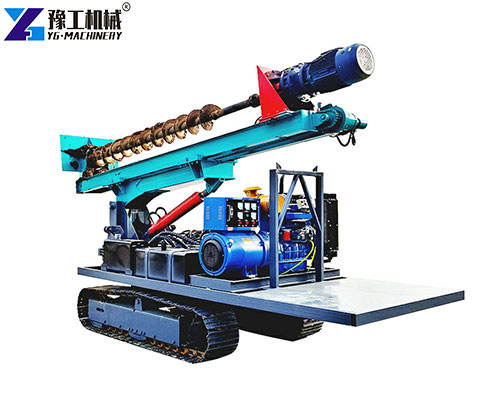

solar piling machine for sale

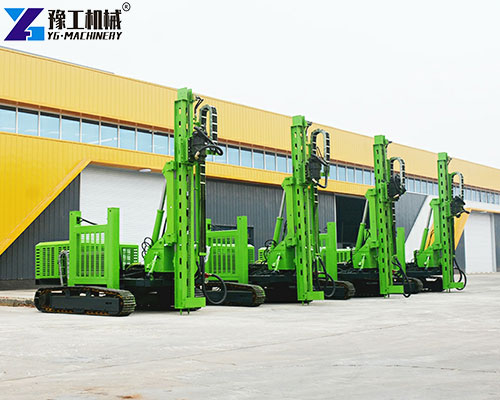

photovoltaic pile drivers
A new energy enterprise in the Philippines plans to build a large ground photovoltaic power station on Luzon Island. However, traditional piling equipment is difficult to meet the accuracy and efficiency requirements. Customers urgently need professional equipment that can penetrate hard rock layers and protect the stability of photovoltaic module brackets. YG is a supplier with many years of experience in the field of photovoltaic pile drivers. YG responded quickly and recommended a suitable pile driver as the core solution. Click to get your own photovoltaic pile driver solution!
Solar piling machine parameter
| Hydraulic photovoltaic pile driver | ||||
| Overall dimensions | 4700*2100*2800mm | drill pipe rotational speed | 180r/min | |
| Track shoe width | 400mm | gradability | 30° | |
| Motor | 4108 | rock hardness | 6-20F | |
| Drilling diameter | 80-500mm | slide tilt angle | 120° | |
| Drilling depth | 0-6m | drill arm swing angle | left and right150° | |
| Reducer torque | 13000n.m | slide swing angle | left and right40° | |
| Mainstream pump | triple pump | driving speed | 0-3km/h | |
| Oil pump | 40/40/32 | |||
| Crawler photovoltaic pile driver | ||||
| Overall dimensions | 4700*2200*2800mm | hydraulic hammer flow | 50-110L/min | |
| Track shoe width | 400mm | impact frequency | 350-800BMP | |
| Motor | 4108 | hydraulic system pressure | 25mpa | |
| Generator power | 88kw Motor | strong wind for heat dissipation | yes | |
| Drilling depth | 0-6m | oil pump | 40/40/32 | |
| Drilling diameter | 80-600mm | driving speed | 3km/h | |
Solar pile driver solution provided by YG
In response to the pain points of Philippine customers, the YG technical team proposed the concept of “dual-mode construction”:
- Hard rock penetration mode: 15-20 pile foundations can be completed in a single day, with a depth of 3 meters, solving the rock layer problem. Because it equipped with high-strength drill bits and impact hammers,
- Soft soil protection mode: The impact force is accurately controlled through the hydraulic system to avoid bracket tilting. And this ensures that the photovoltaic panel installation angle error is ≤0.5°.
- The equipment also integrates an intelligent positioning system. And the operator can monitor the verticality of the pile foundation in real time through the screen. This improves the construction efficiency by 40% compared with the traditional method.
At the project site, the YG-SP800 solar piling machine completed the construction of all 450 pile foundations in only 12 days. It is 18 days shorter than the original plan. The customer project manager gave feedback: “The stability of the equipment in the rock-soil mixed stratum far exceeded expectations, especially during the rainy season. The anti-skid track and automatic leveling function ensure continuous operation.”
Solar piling machine for sale features
- All-terrain adaptation: From coastal tidal flats to mountainous hills, the equipment’s deadweight and power system have been specially adjusted to adapt to the diverse landforms of the Philippines.
- Low operating costs: The modular design shortens the maintenance time by 50%. And the annual maintenance cost of a single device is saved a lot.
- Full-cycle service: YG provides one-stop support from equipment transportation, operation training, to consumables supply. And customers do not need to form an additional technical team.
Philippine Customer feedback
“Choosing YG’s solar pile driver is the most correct decision for our project.” The customer’s purchasing manager said, “Compared with European brands, YG equipment is more cost-effective, and can customize anti-rust coatings and cooling systems according to the climate characteristics of the Philippines, and there will be no failures in later use.”
Excellent supplier of solar piling machine-YG
This case confirms YG’s strength as a leading supplier in the field of solar piling machines for sale. By deeply understanding customer needs, integrating technological innovation and localized services, YG is helping more overseas PV projects break through bottlenecks and accelerate the global energy transformation process.
