A US company that focuses on large-scale architectural glass installation was actively looking for efficient glass handling solutions in the market and set its sights on our glass vacuum lifting equipment. They needed a device that could safely and quickly handle various large glass plates to improve the efficiency of their project construction. After multiple comparisons and inspections, they finally chose to purchase our glass vacuum lifting equipment.

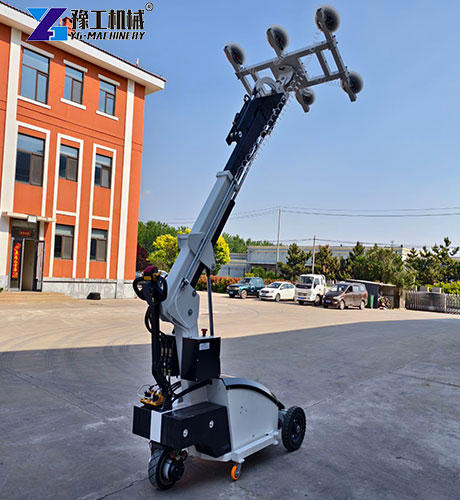

Glass vacuum lifting equipment parameters
The glass vacuum lifting equipment we provide has powerful performance parameters. Its maximum load capacity can reach 500 kg, which can easily handle glass of different sizes and thicknesses.
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||

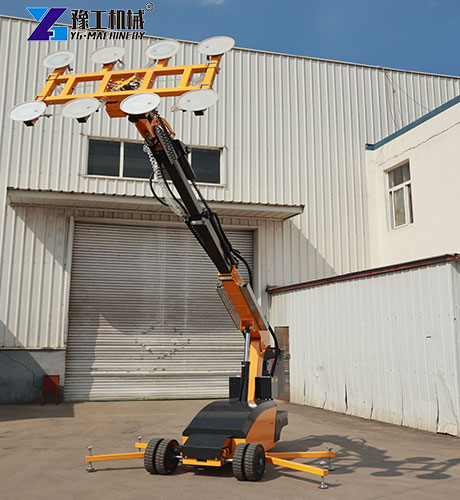

Project background of vacuum glass lifter robot
The customer was participating in a large commercial complex construction project that involved the installation of a large number of glass curtain walls. The traditional glass handling method was inefficient and had certain safety risks, which could not meet the project’s schedule requirements. Therefore, they urgently needed advanced glass vacuum lifting equipment to improve the construction process.
Positive feedback from customers
After using our glass vacuum lifter robot (the glass vacuum lifter robot price is reasonable) for some time, the customer gave a high evaluation. They reported that the stability of the equipment was beyond imagination, and there had never been any glass falling, which greatly improved the safety of construction. Moreover, due to its efficient handling speed, the overall construction period of the project was shortened by nearly 20%, saving customers a lot of costs. Customers also said that this glass vacuum lifter for sale is easy to operate, and workers can master it after a short training.
Why buy YG’s glass vacuum lifter for sale?
The main reason why customers choose YG’s glass suction cup machine is its excellent quality and perfect after-sales service. Our equipment uses advanced technology and high-quality materials during the research and development process to ensure the durability and reliability of the equipment. In addition, our product price is competitive and cost-effective, which is also one of the important factors that attract customers to buy.
Through this case, it can be seen that YG’s glass suction cup machine has successfully helped American customers solve construction problems with its own advantages, showing strong competitiveness in the international market.
