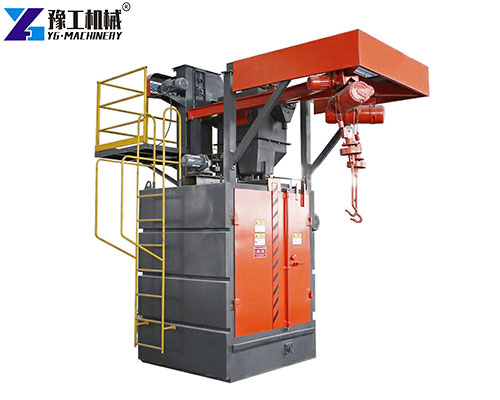

Good News! A shot blasting machine for sale is sold to Colombia. The machine is mainly used to remove burrs and rust from forgings and metal parts. The workpiece transfer system of the Hanger Type Shot Blast Machine mainly consists of a Y-rail and 2 electric hoists. This equipment has high productivity and greater flexibility. If you need please contact us to get a free quote!
Shot Blasting Machine for Sale Technical Parameters
| Item | YG376 | YG376B | YG378 | YG3710 | YG3720 | YG3730 | YG3750 | YG37100 |
| Maximum weight of cleaning(KG) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Clean the workpiece size(mm) | 600*1200 | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2300 | 1800*2500 | 3000*3000 |
| Shot blasting amount (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Lift (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Separator separation amount (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Power (KW) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
| Ventilation(m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |

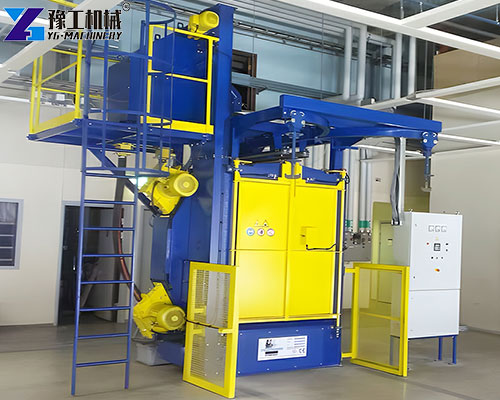

Applications of The Hanger Type Shot Blasting Machine
Bicycle frames, wheel hubs, motor housings, pans, brake pads, etc. Spinner hanger shot blasting machines can mainly deal with casting parts, forging parts, die-casting parts riveting parts, sheet metal parts, stamping parts, engine blocks, crankshafts, pistons, valves, axles, wheel hubs, brake drums, brake discs, springs, leaf springs, frames tank trucks, kitchen utensils, bolts, dumbbells, turbines, and other workpieces of shot blasting descaling and rust strengthening.
Spinner Hanger Shot Blasting Machine Maintenance
- The shot blasting machine for sale needs to be cleaned after each shift.
- Users should always check the wear and tear of the guard plate in the cleaning room and the directional sleeve of the shot blasting machine, the shot wheel, and so on.
- Before using the machine, there are moving parts that need to be lubricated. The bearings on the main shaft of the shot blasting machine, add 2# calcium-based grease once a week. Screw conveyor, and elevator bearings, and add 2 # calcium-based grease once a month. The rest of the bearings should be lubricated with 2# calcium-based grease every 3-6 months. Add mechanical oil to the chain and other moving parts once a week, and lubricate the motor according to the lubrication requirements.
- Check each transmission part regularly, and clean and replace the worn parts in time.
- The spinner hanger shot blasting machines in the inspection and maintenance, must cut off the power supply, to avoid accidents.
- If the machine fails to work for 48 hours, the fan should be checked. Then remove the dust attached to the split wheel.
- The guard plate of the cleaning room can be replaced regularly according to the situation, and the installation gap of the guard plate pieces is controlled within 1.5mm.
Shot Blasting Machine Price from YG
This Colombian customer has a specialized metal parts cleaning department. He would like to purchase a new Hanger Type Blast Machine to carry out the work. Through communication with our sales manager, the customer trusted us. We also recommended the YG3720 shot blasting machine for sale to the customer according to his needs. The customer was very satisfied with our equipment and decided to buy it from us. The hook-type shot blasting machine offered by YG has won the support of many customers with its compact structure, pitless design, and no special requirements on the shape and structure of the cleaned workpieces. We also offer road shot blasting machines. You are welcome to click to inquire about our equipment!
